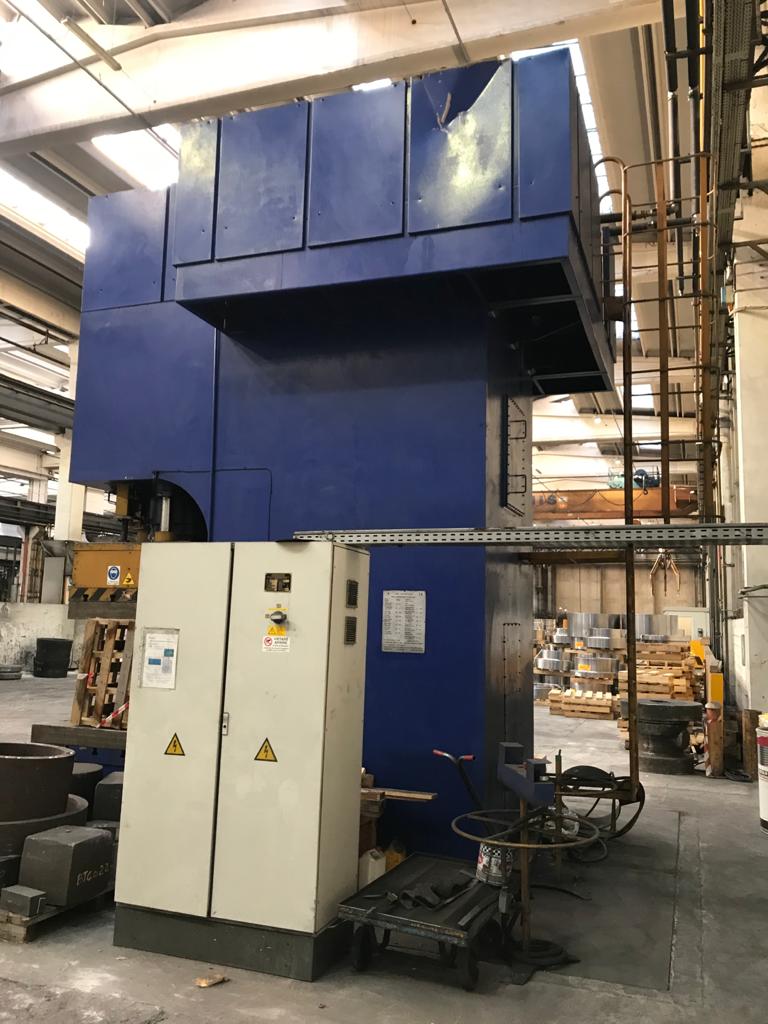

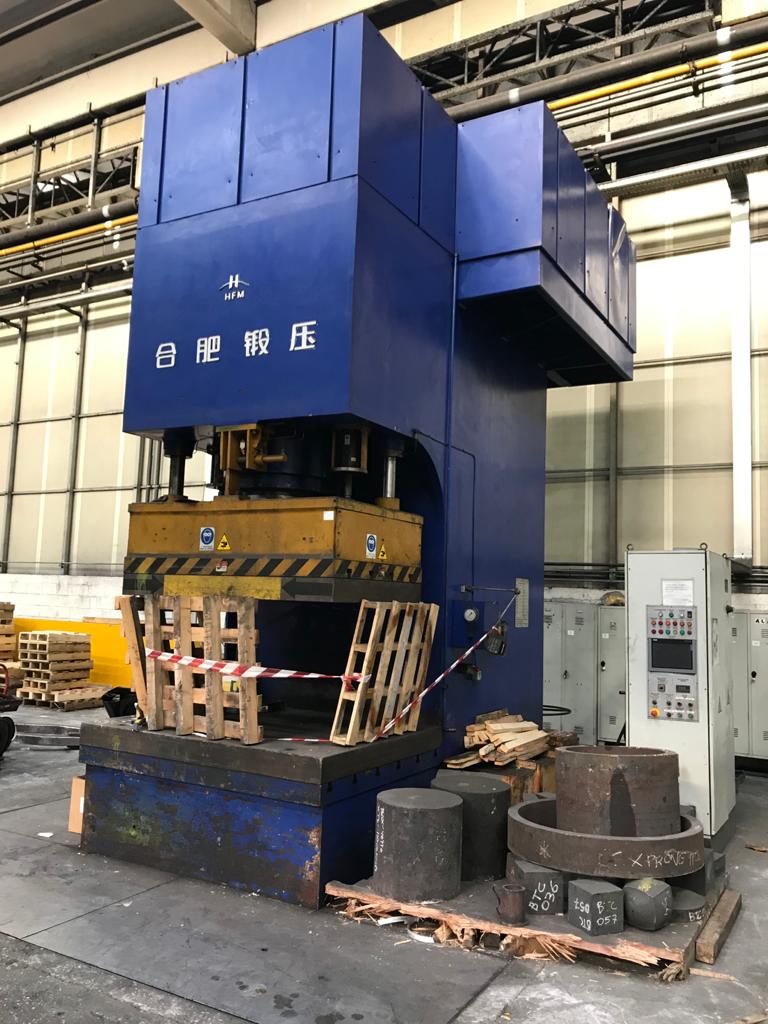

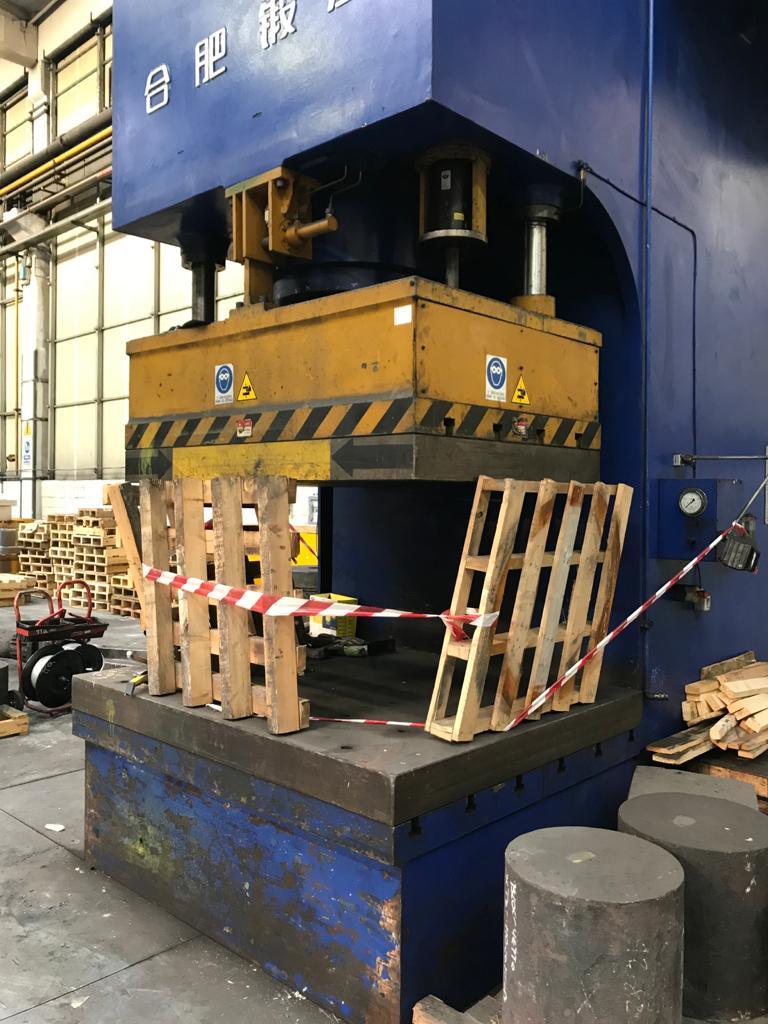

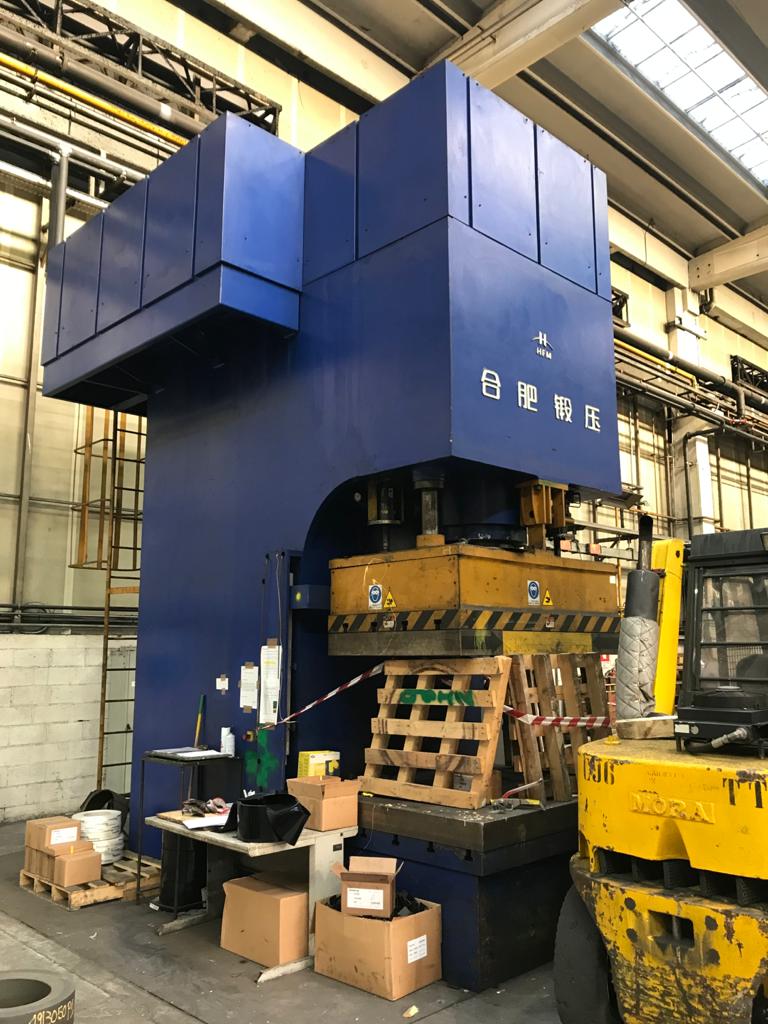

PRESS HFM MOD. YH30-630
Oleodinamic c type
Nominal force kN 6300
Return force kN 430
Fast down mm/s 400
Pressing mm/s 24-67
Slow opening mm/s 120
Fast opening mm/s 400
Max liquid press MPa 25
Max daylight opening mm 1200
Max slide stroke mm 1000
Throat depth mm 800
Table height mm 700
Max upper mould weight ton 4.5
Total power kW 191
Approx. machine total weight ton 60
Approx. machine overall dimensions m 4,9x6,6x7,0H
USED MACHINE
