EXTERNAL GRINDER GIORIA R150 8000 CNC
External
07436

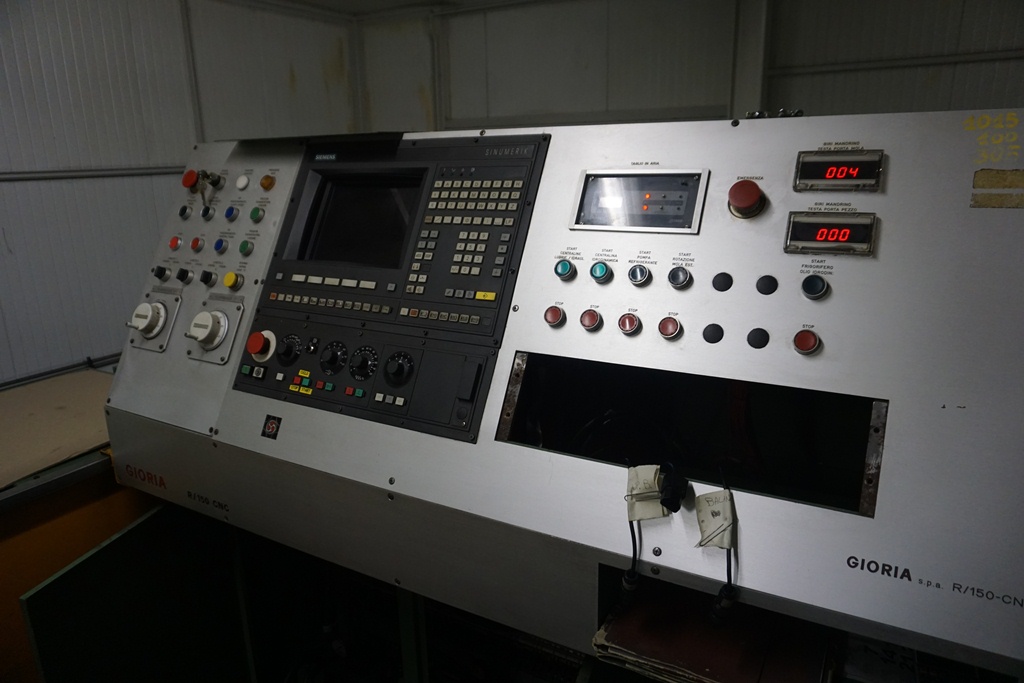

CNC Siemen Sinumerik 820G
Max swing diameter mm 900
Max grinding diameter mm 900
Max grinding length 8000 mm
Max weight admitted between centers Kg 10000

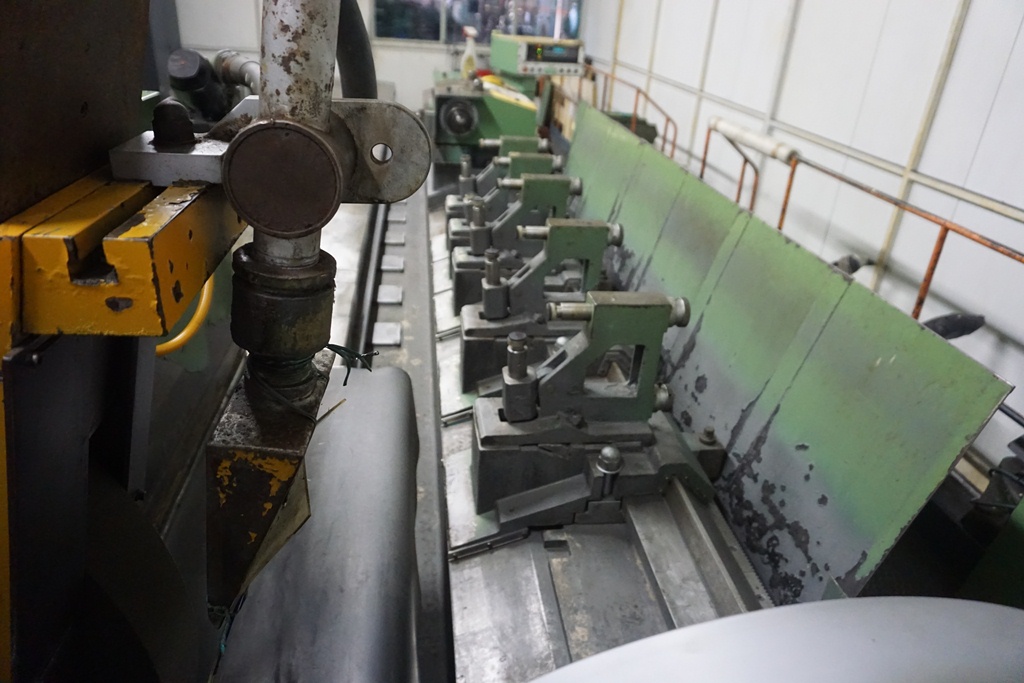

Max grinding weight on steady rests Kg 12000
Distance between centers 8000 mm
Max wheel carriage stroke mm 8300
Wheel (diameter x thickness x hole) mm 1015x150x305
Wheel speed m/s 33/45
Max wheel spindle rotation speed "S2" rpm 1150-1550
Wheel motor in AC kW 34

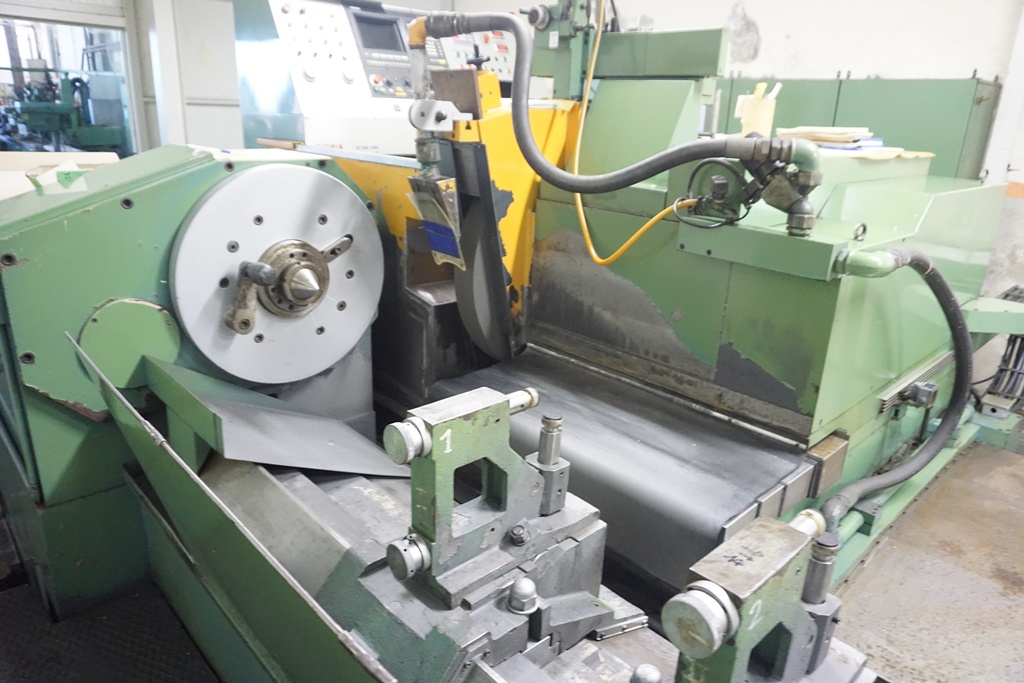

PIECE-HOLDER HEAD
Tip angle 60 degrees
Quill cone CM 100
Spindle rotation motor S1 kW 38
Workpiece rotation speed rpm '3-120

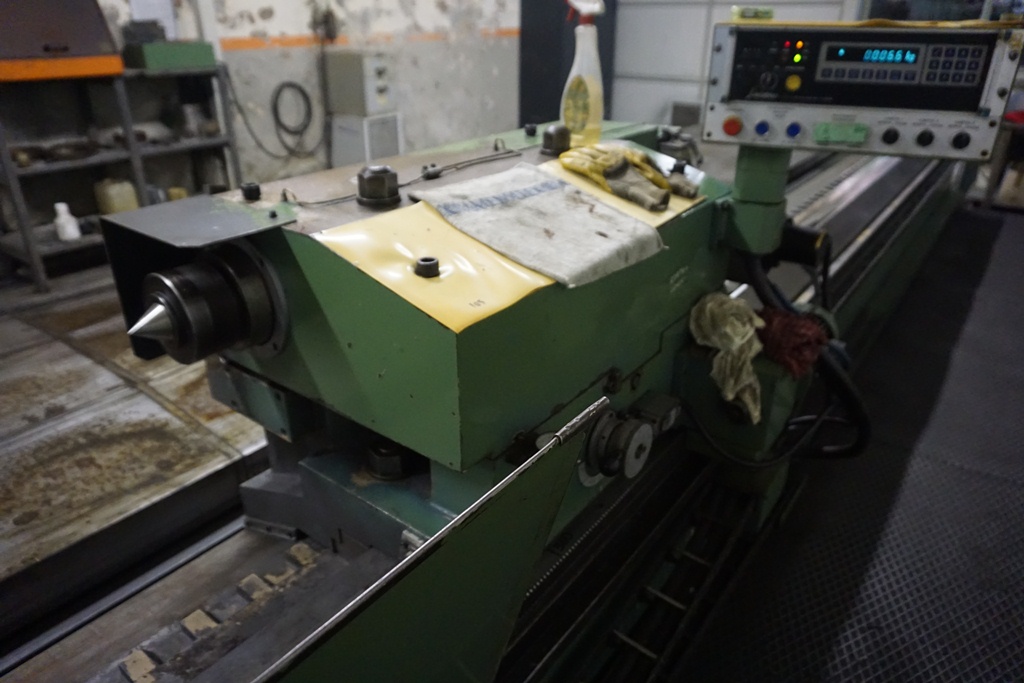

TAILSTOCK:
Tip angle 60 degrees
Quill cone CM 100
Max stroke 180 mm
MACHINE DIMENSIONS AND WEIGHT:
Max length 14500 mm
Max width 3500 mm
Max height 2450 mm
Approx. weight Kg 59000
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
