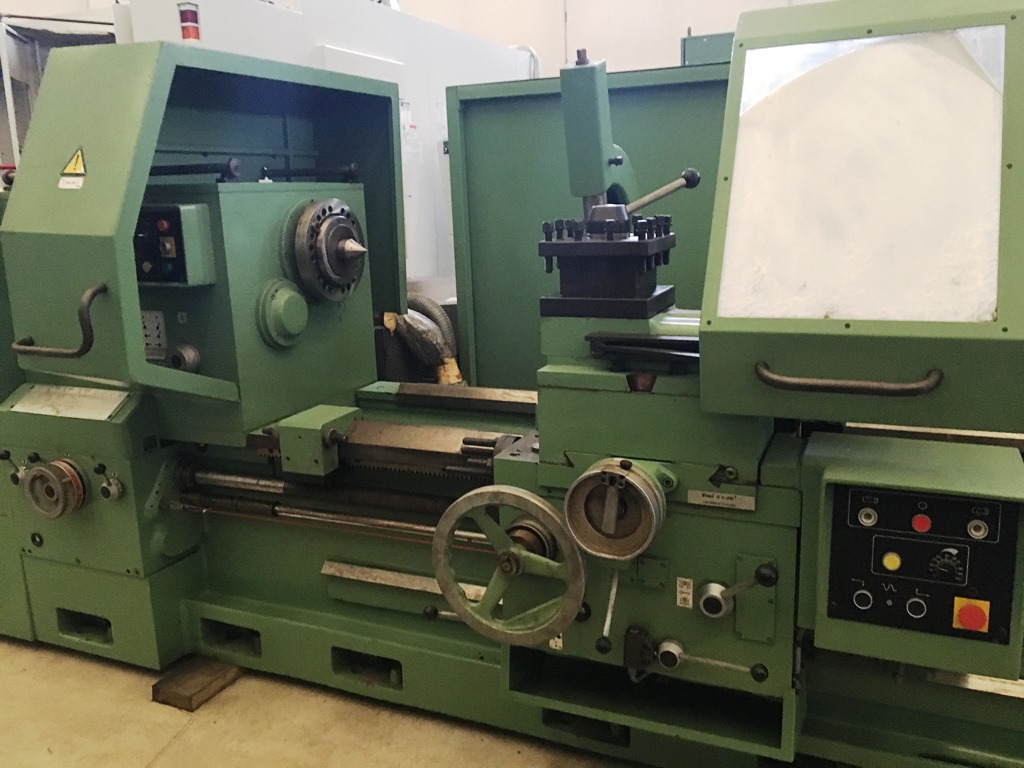

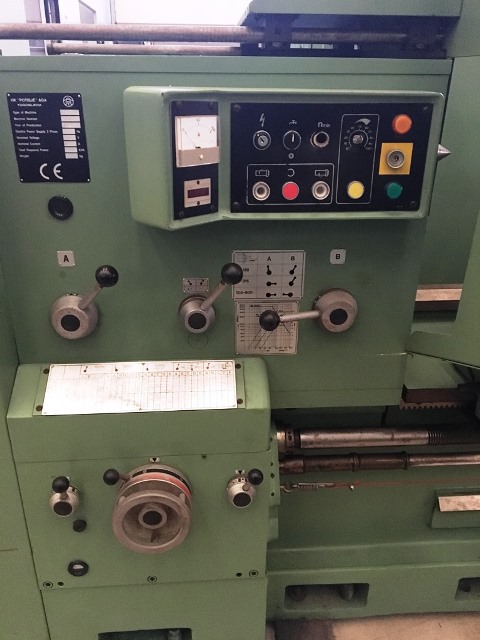

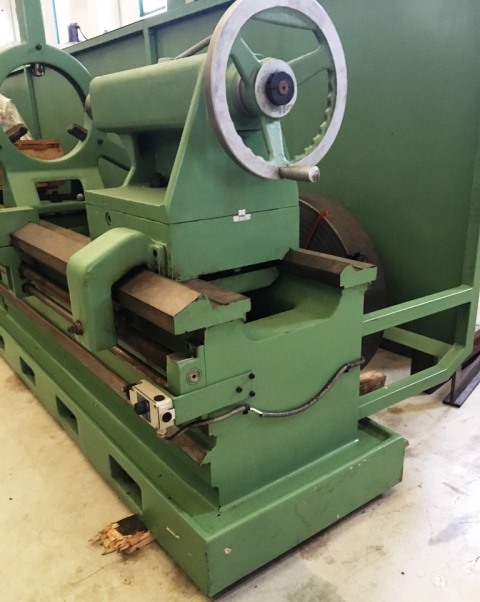

LATHE POTISJE PA 45/6000 DC
Diameter over 800 mm
lathe conventional - Used Machines
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
POTISJE
POT.45.6OOO
POT.45.6OOO
MONOLITHIC STRUCTURE
3 GUIDES
HEIGHT OF CENTER MM 450
DISTANCE BETWEEN CENTER MM 6000
BAR PASSAGE MM 140
DIAMETER TURNING OVER THE BED MM 9000
DIAMETER TURNING OVER THE CARRIAGE MM 600
DIAMETER TURNING OVER THE GAP MM 1200
TURNING LENGHT IN THE GAP MM 400
SPINDLE DIN 55021/GR11
DIAMETER FRONT SPINDLE MM 190
03 SPEED RANGE FROM 2 TO 800 RPM
WIDTH GUIDE MM 650
CARRIAGE LENGHT MM 820
DIAMETER TAILSTOCK SPINDLE MM 120
ENGINE KW 28,5
DIMENSIONS (LxWxH) MM 7600x1600x1800
EQUIPPED:
STEADY REST MM 360
FOLLOW REST MM 280

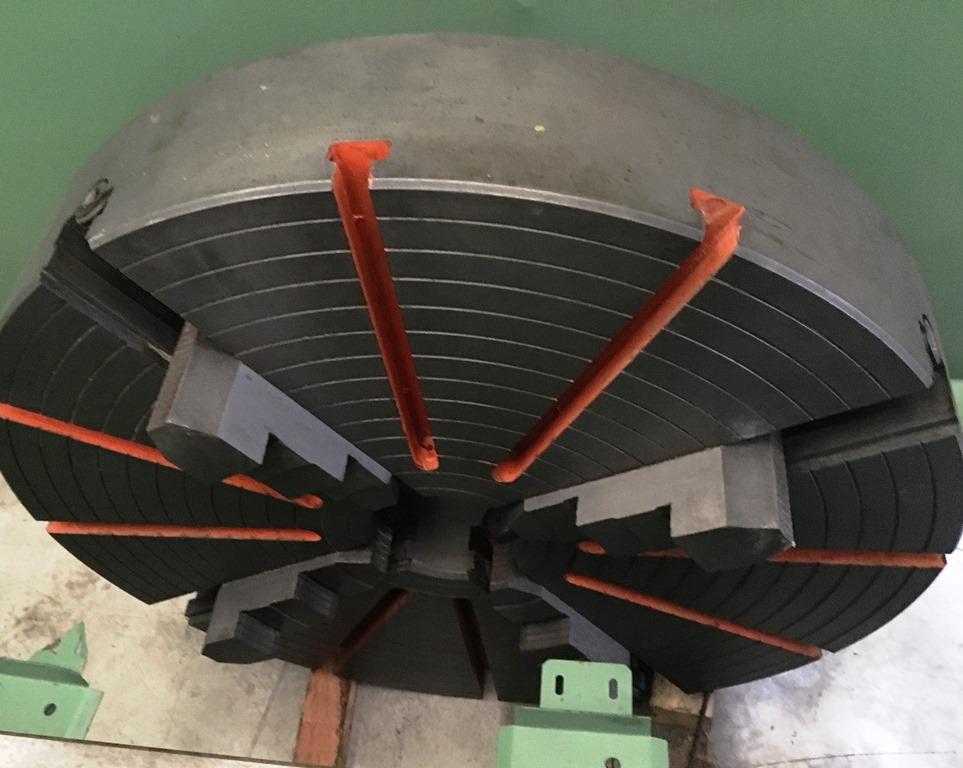

PLATEAU
DEAD CENTER CM6
CHIP COLLECTING TRAY
COOLANT SYSTEM
ROTATING TOOL POST TYPE E
MACHINE NEW
