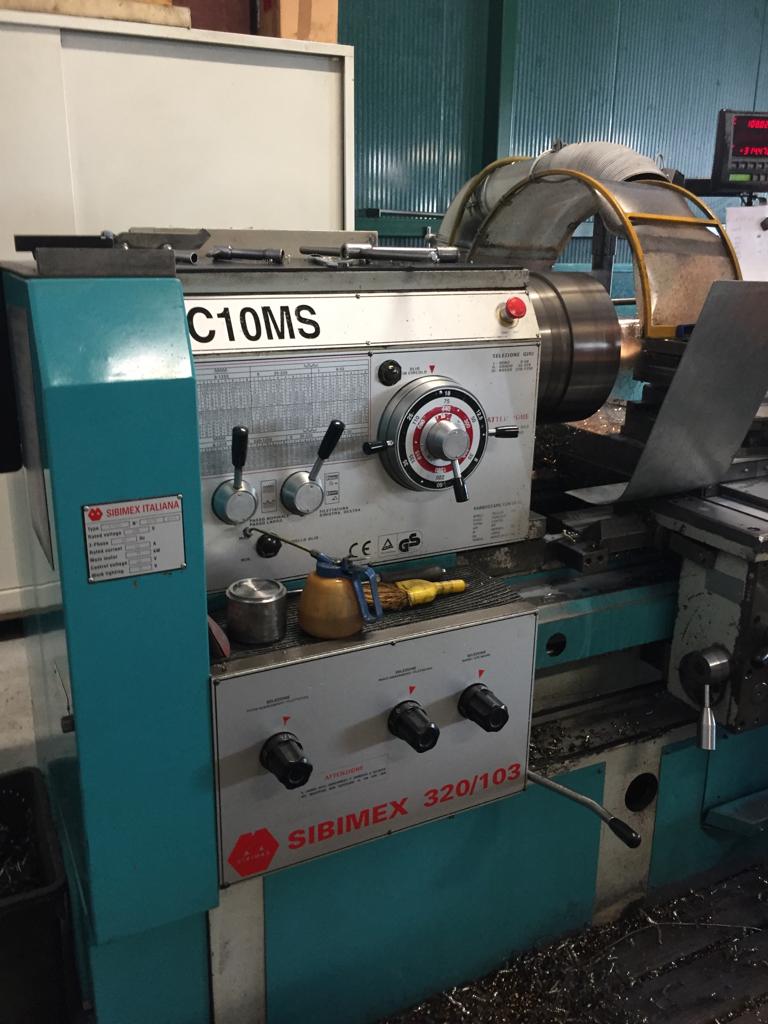

MOD.C10MS
CAPACITY:
Height of centers mm 320
Swing over bed mm 630
Swing over carriage mm 385
Swing in gap mm 820
Bed width mm 520
Distance between centers mm 3000
SPINDLE:
Spindle nose N.11
Spindle bore mm 103
Spindle taper Metric 120
Spindle speed number n.18
Spindle speed Rpm 8-1250
Spindle motor power Kw 11

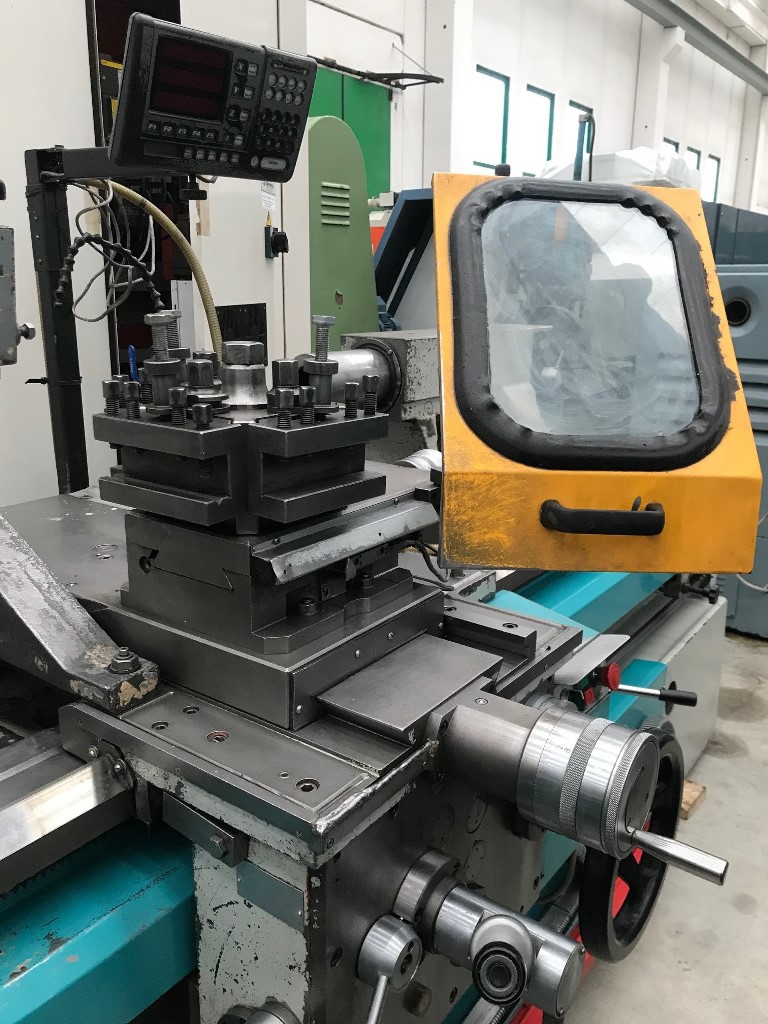

CARRIAGE:
Cross slide travel mm 420
Top slide travel mm 145

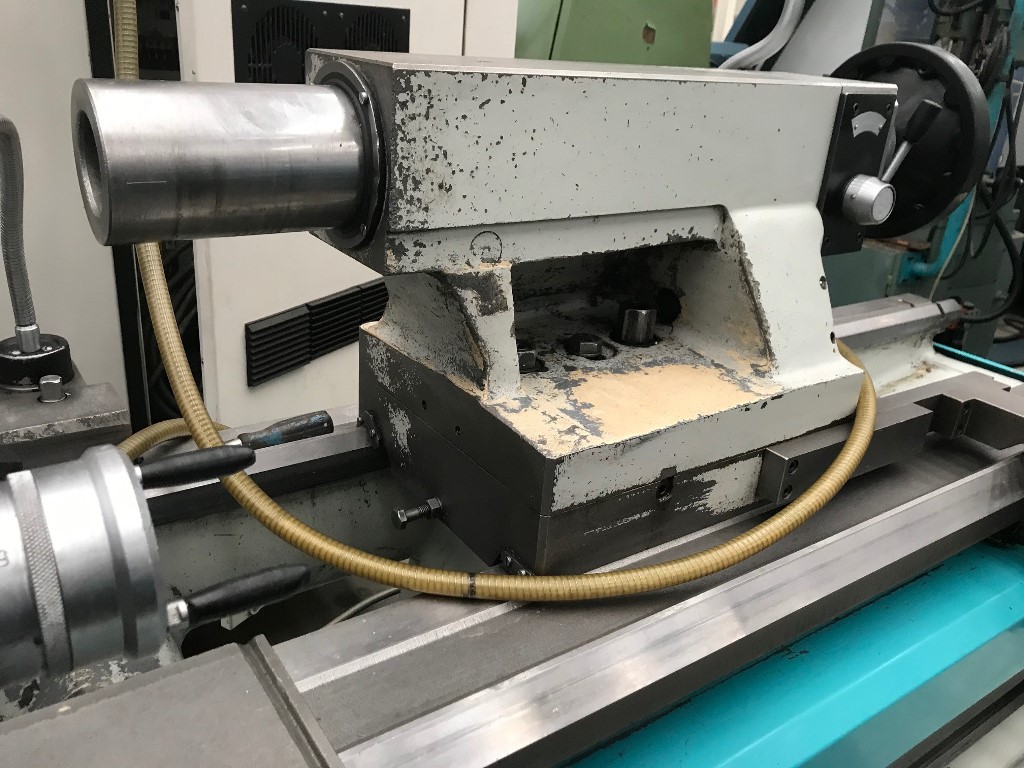

TAILSTOCK:
Quill diameter mm 105
Quill taper Morse N.6
Quill stroke mm 200
APPROX. NET WEIGHT:
Kg 5240
APPROX. OVERALL DIMENSIONS:
Lenght mm 5450
Width mm 1450
Height mm 1485
EQUIPPED WITH:

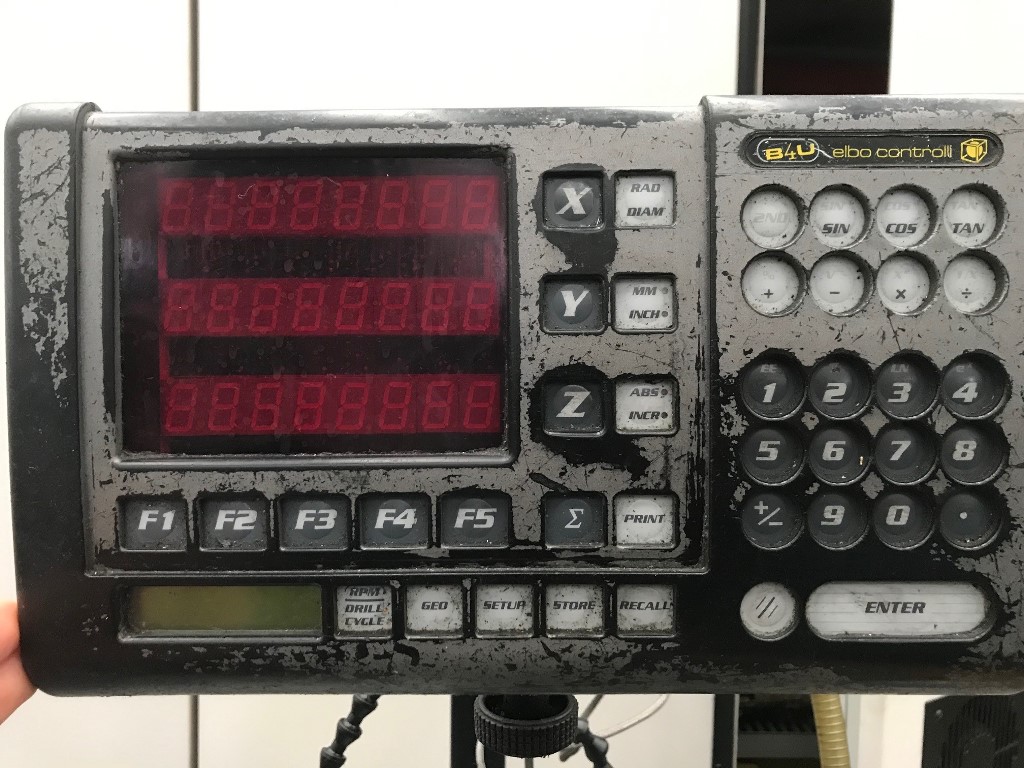

-Digital read out 3 axis
n.1 follow rest mm 20-200

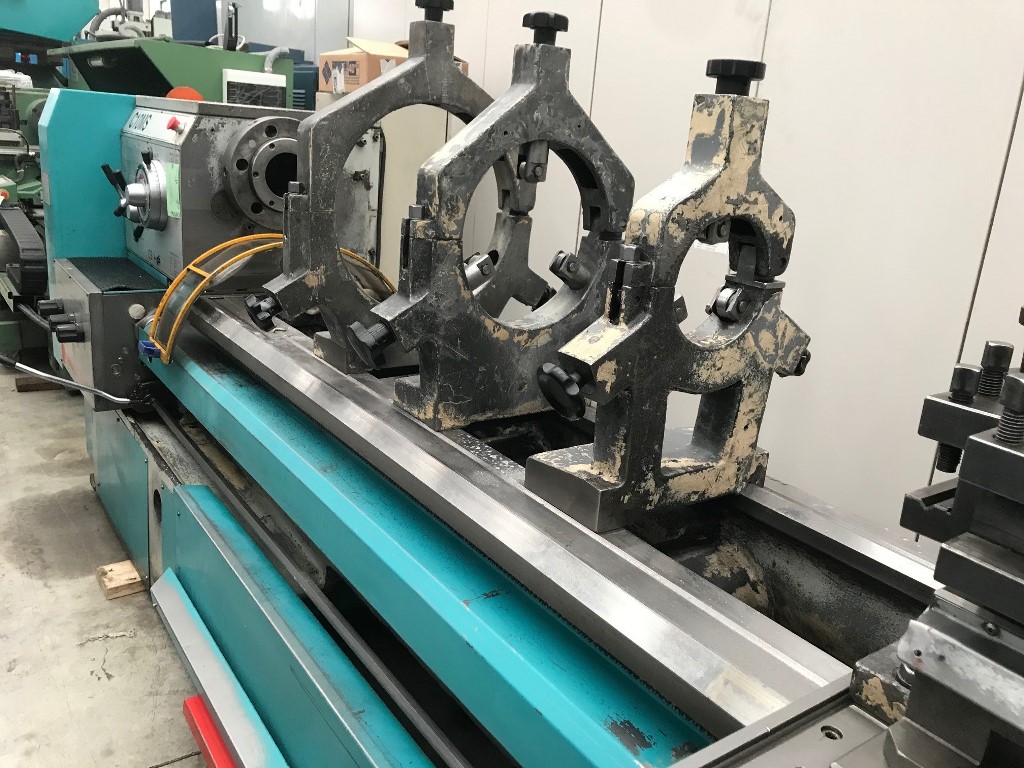

-n.1 steady rest mm 10-120 ca.
-n.1 steady rest mm 50-300 ca.
-n.1 steady rest mm 180-400 ca.

USED MACHINE
