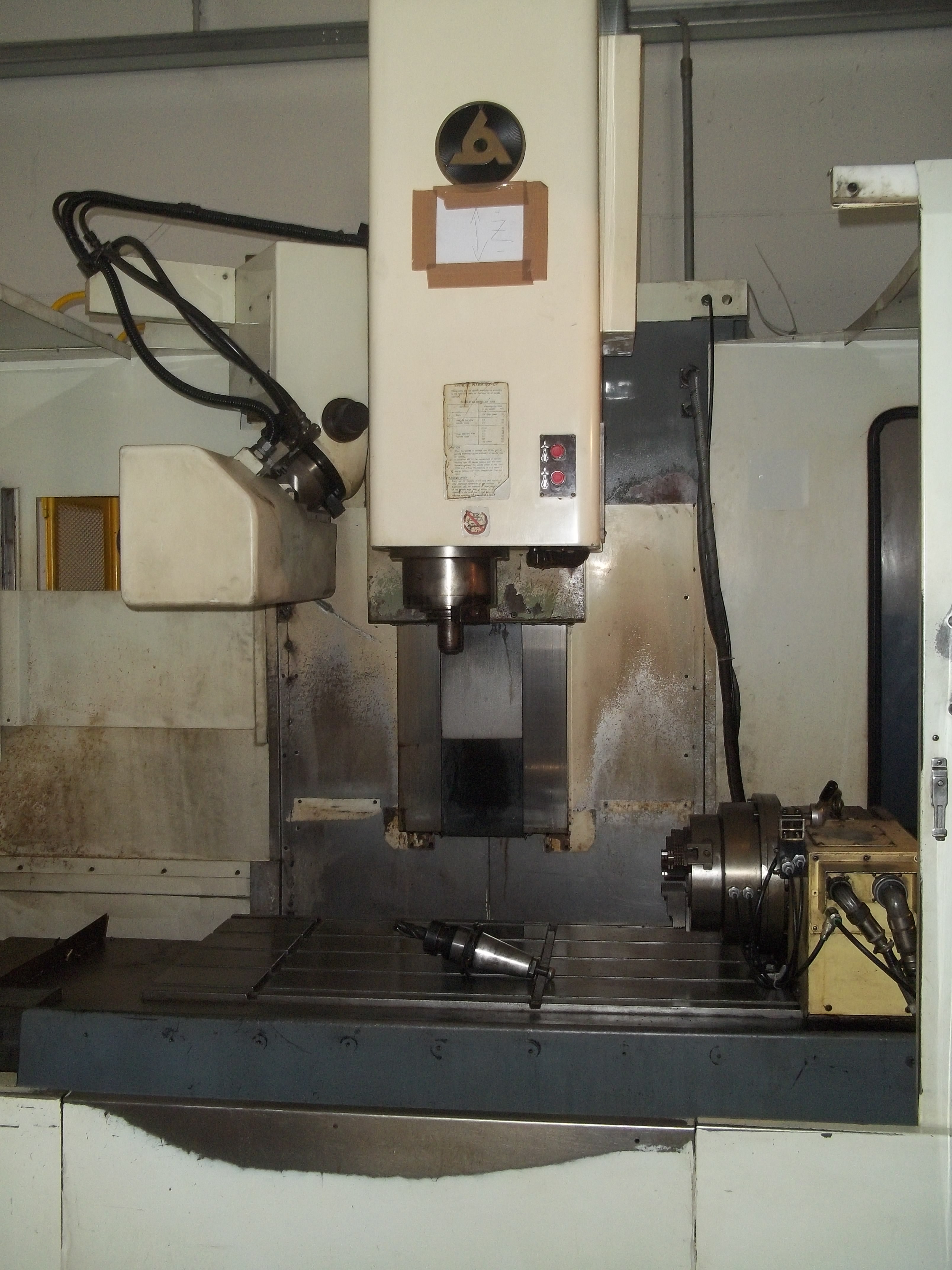

CENTRE KITAMURA MY CENTER 5
Single pallet
machine center - vertical - Used Machines
VIDEOS:
KITAMURA
New04389
New04389
VERTICAL
-CNC FANUC 15 M
-AXIS X MM.1125
-AXIS Y MM.565
-AXIS Z MM.571
-TABLE SIZE MM.1400X570
-DISTANCE TABLE/ SPINDLE NOSE MM.165/736
-DISTANCE COLUMN CENTRE TABLE MM.350/870
-N. 03 CHANGE RANGE
-PUMP HIGH PRESSURE
-SPEED RAPID FEEDRATES X,Y MM/MIN. 15.000
-SPEED RAPID FEEDRATES Z MM/MIN. 10.000
-SPINDLE TAPER BT 50 CAT
-SPINDLE TURNS AL MIN. 35-3500

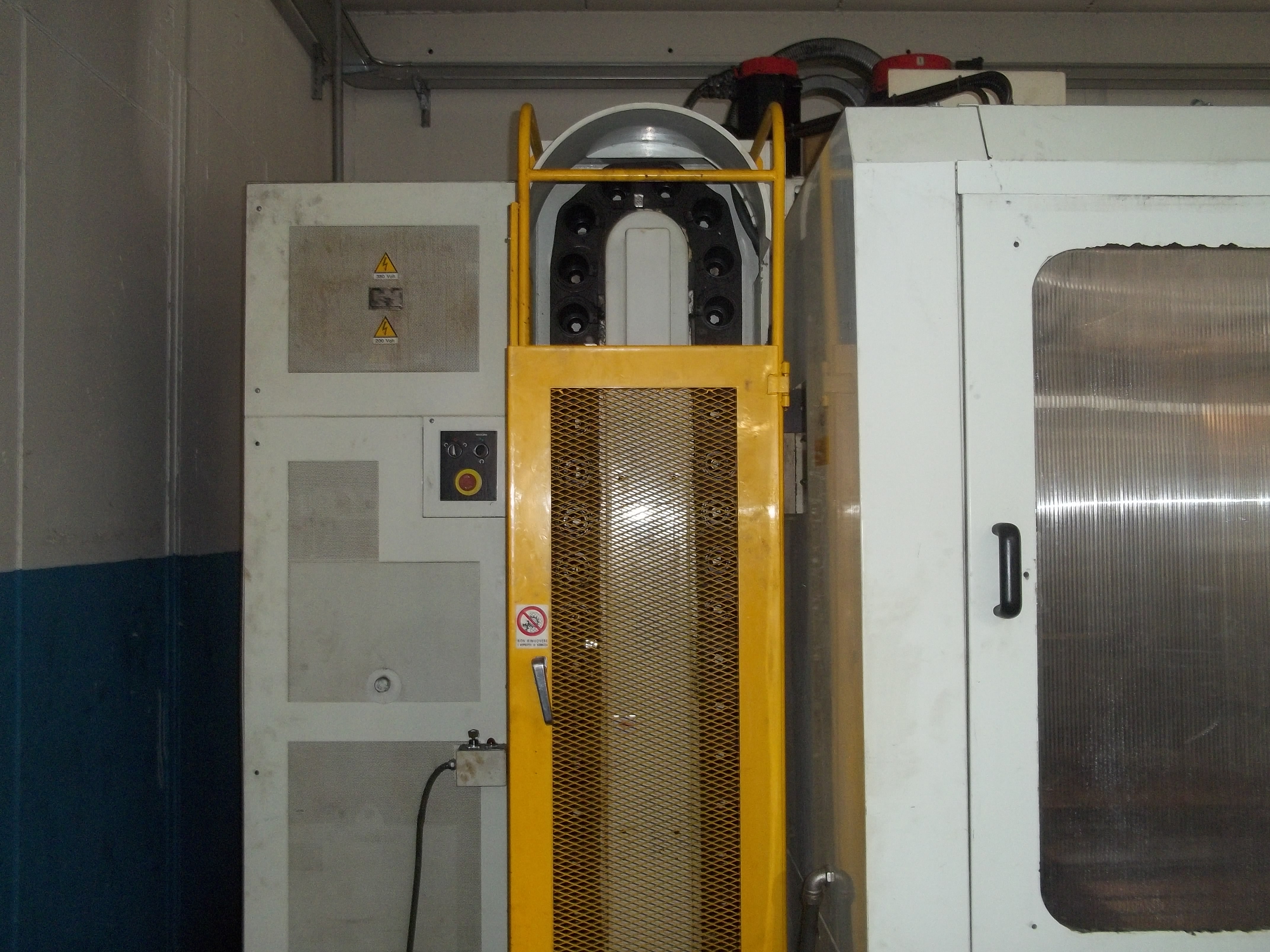

-TOOL CHANGE RANDOM 40 POSITIONS
-SPINDLE ENGINE (30 MIN.) AC 15 KW, 20 HP
-SPINDLE ENGINE (IN CONTINUOUS) AC 11 KW, 15 HP
-WEIGHT KG. 8.800
-OVERALL SIZE MM.3500X2830X2185 H
EQUIPED WITH:
-4TH AXIS TABLE NIKKEN DIAM MM.300
-PNEUMATIC SPINDLE
USED MACHINE
VIDEOS:
FILL OUT OUR FORM FOR MORE INFORMATION
