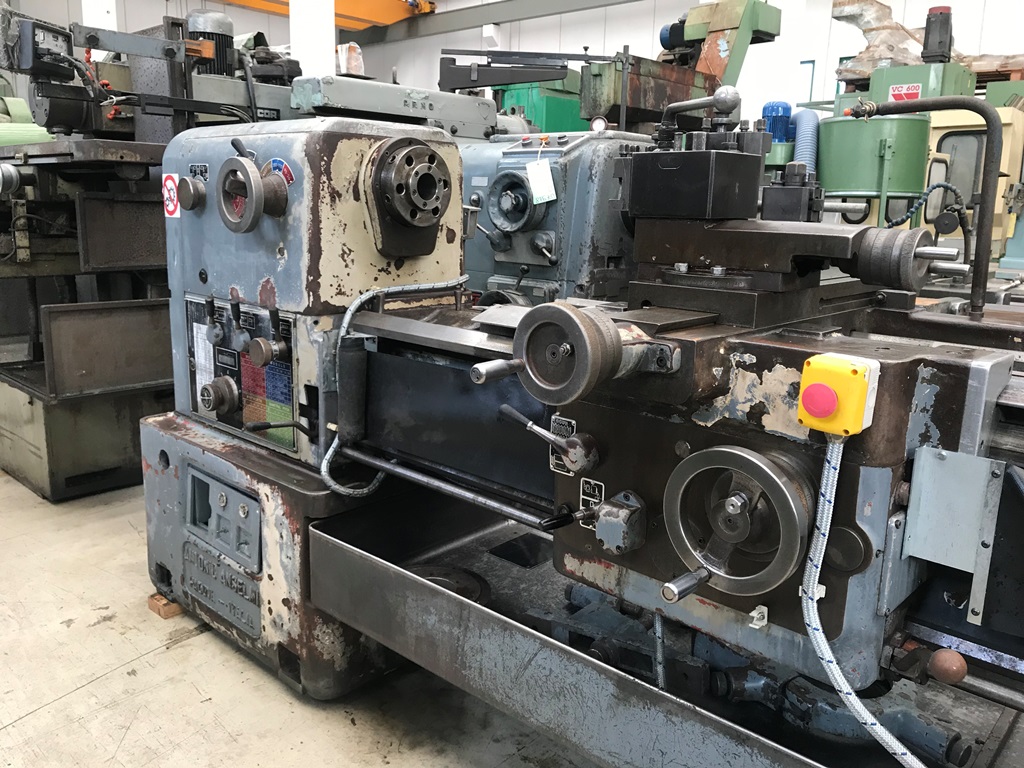

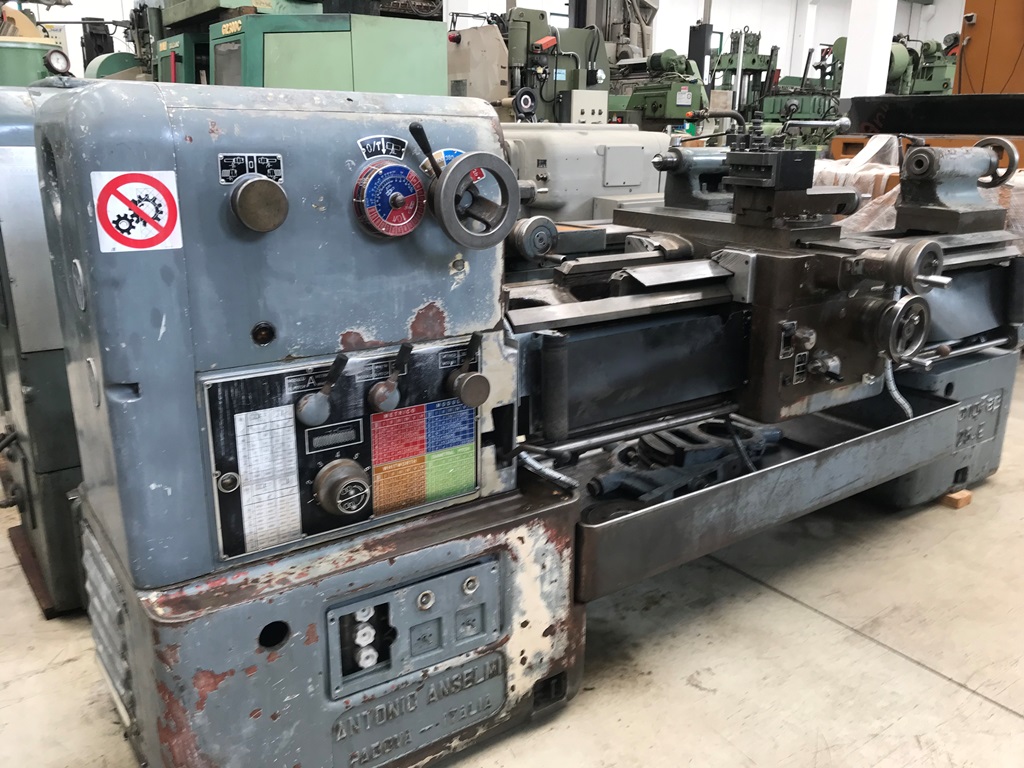

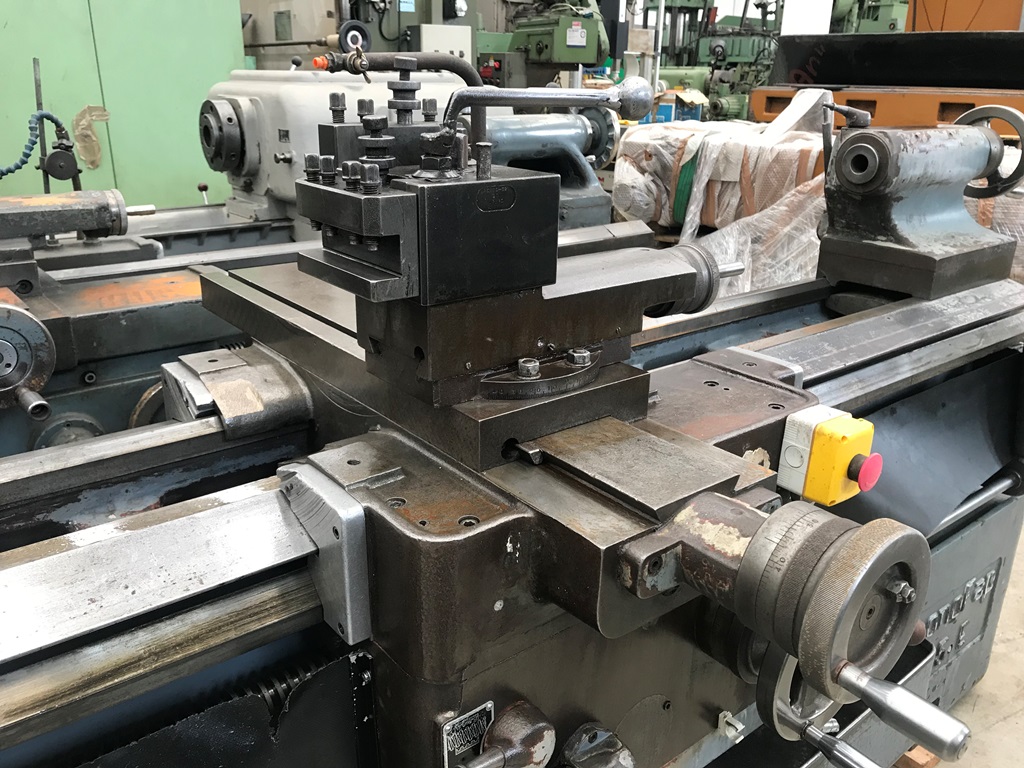

LATHE ANSELMI MONO FAP 225E
Diameter up to 600 mm
lathe conventional - Used Machines
ANSELMI
08517
08517
Distance between center mm 1500
Height of center mm 225
Max swing diameter over the gap mm 600
Max turning diameter over the bed mm 470
Max turning diameter over the cross carriage mm 275
Gap lenght mm 210
Width bed mm 370
Spindle bore mm 55
Spindle nose CAM LOCK 6''
Tailstock quill cone MORSE N.4
Spindle speed n.18 - rpm 23-1800
Motor power HP 7,5
Approx. weight Kg. 2310
Approx. overall weight mm 1000x1280x3060
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
