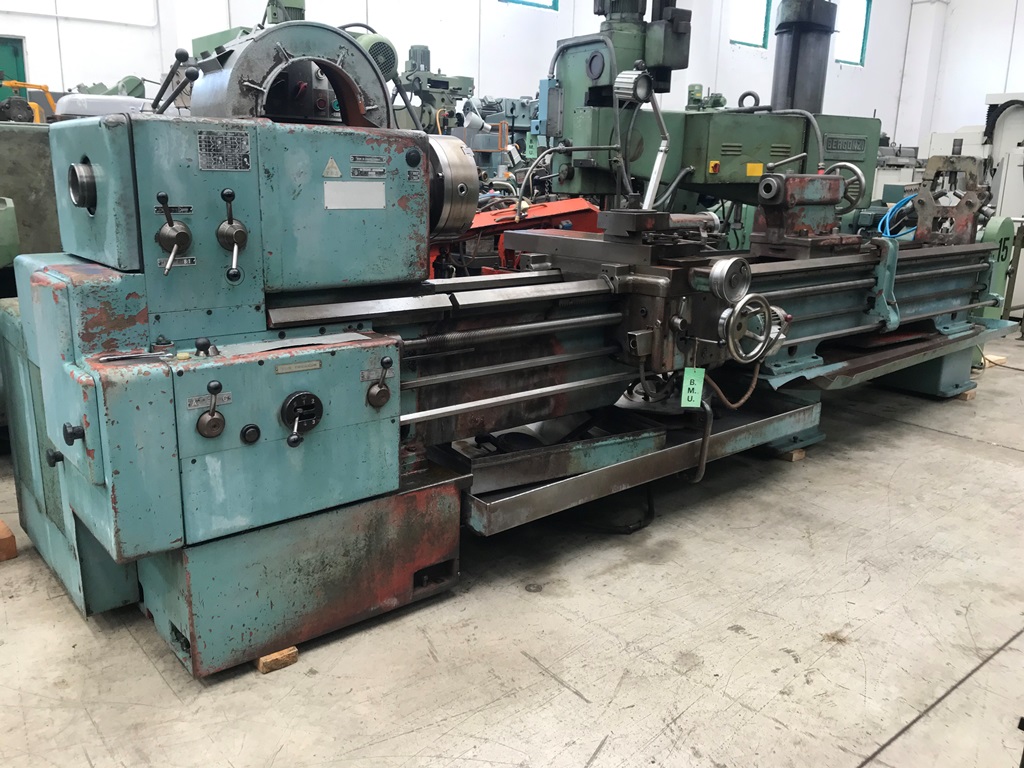

LATHE TRENS 315x3000
Diameter between 600 e 800 mm
lathe conventional - Used Machines
TRENS
08430
08430
MOD SN 63 B
CAPACITY:
Swing over bed mm 630
Swing over saddle mm 640
Swing in gap mm 880
Gap width mm 300
Height of centres mm 315
Distance between centres mm 3125
SPINDLE:
Spindle bore mm 71
Spindle nose CAMLOCK D8
Spindle speed rpm 10-1000
SADDLE:
Working feed of cross slide mm 400
working feed of tool slide mm 180
Max tool dimensions mm 40x25
TAILSTOCK:
Quill diameter mm 90
Quill stroke mm 240
Quill taper MORSE 5
EQUIPPED WITH:

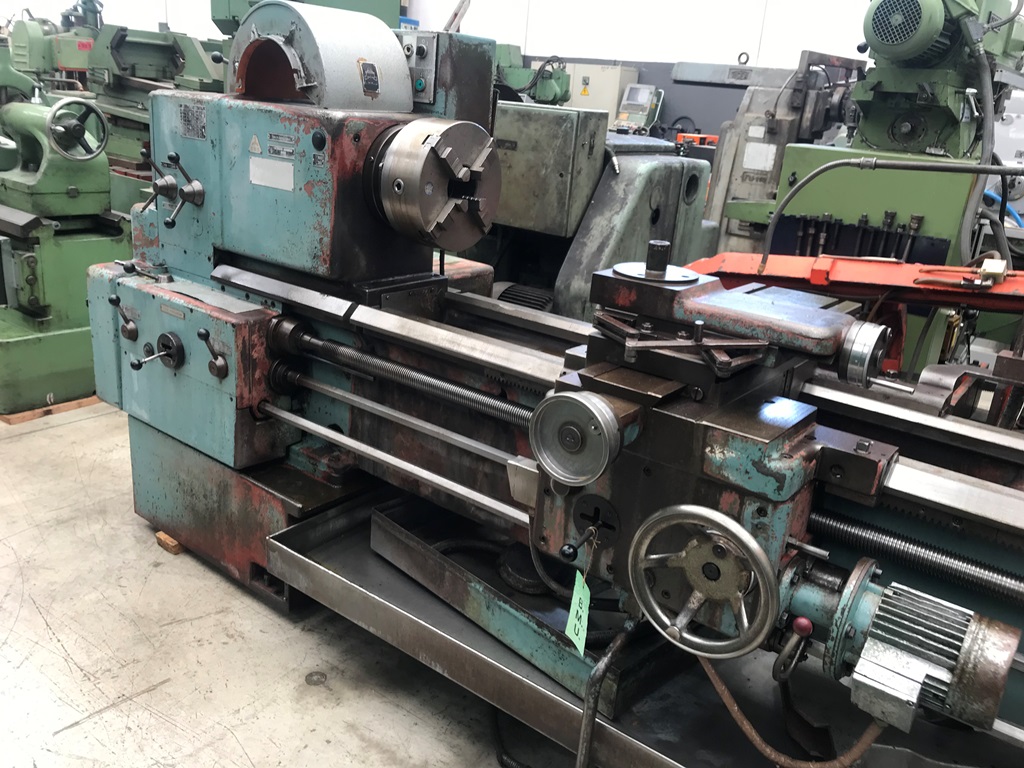

-4+4 jaws self-centering chuck with simple guide mm 315

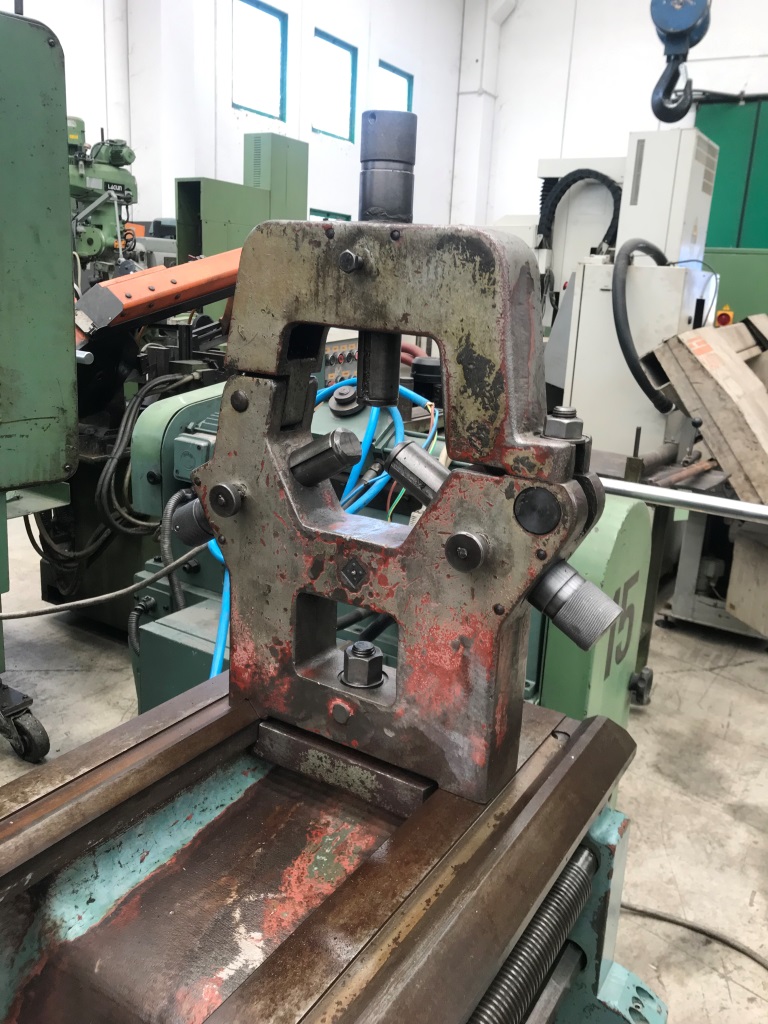

-Steady rest mm180
-Follow rest mm 220
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
