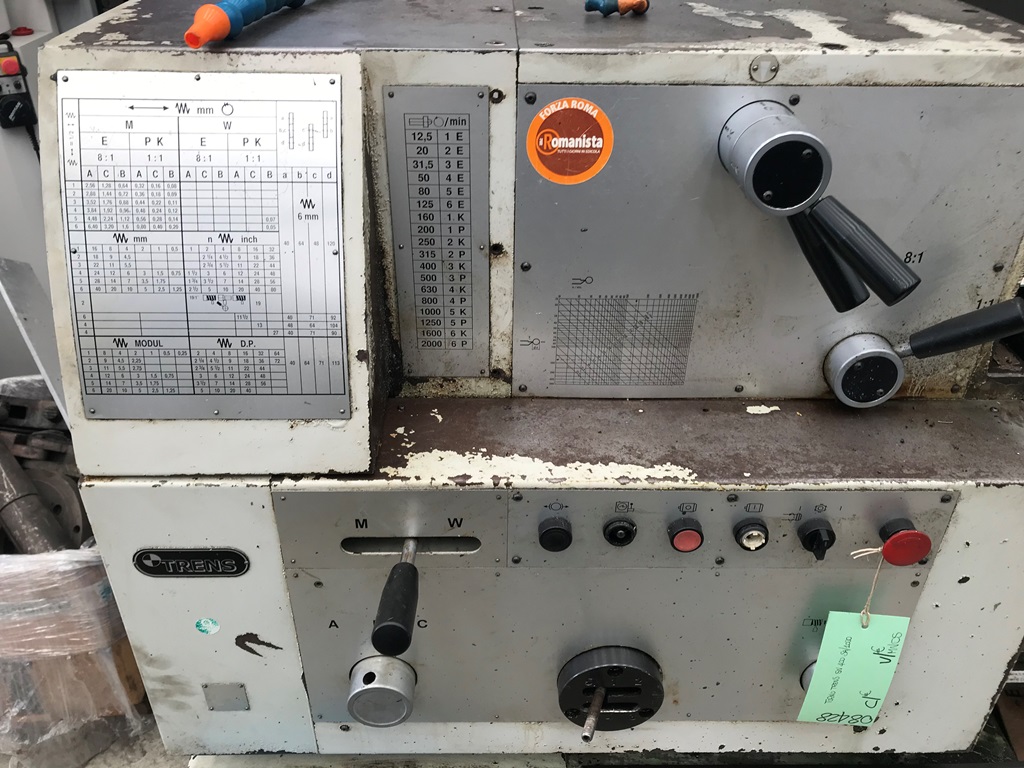

LATHE TRENS SN 400 SA/1000
Diameter up to 600 mm
lathe conventional - Used Machines
TRENS
08428
08428
WORKING RANGE:
Swing diameter over bed mm 410
Swing diameter over carriage mm 220
Swing diameter over gap mm 600
Distance between centers mm 1000
Height of centers mm 200
SPINDLE:
Spindle nose CAMLOCK D8 tipo STN ISO 702/II
Spindle bore mm 77
Spindle speed rpm 12.5-2000
Motor power kW 7.5
TAILSTOCK:
Quill diameter mm 80
Quill stroke mm 180
Quill taper MORSE 5
CARRIAGE:
Cross slide rest travel mm 300
Top slide travel mm 140
Max tool diameter mm 32x25
MACHINE WEIGHT:
Approx. weight Kg 2200
EQUIPPED WITH:

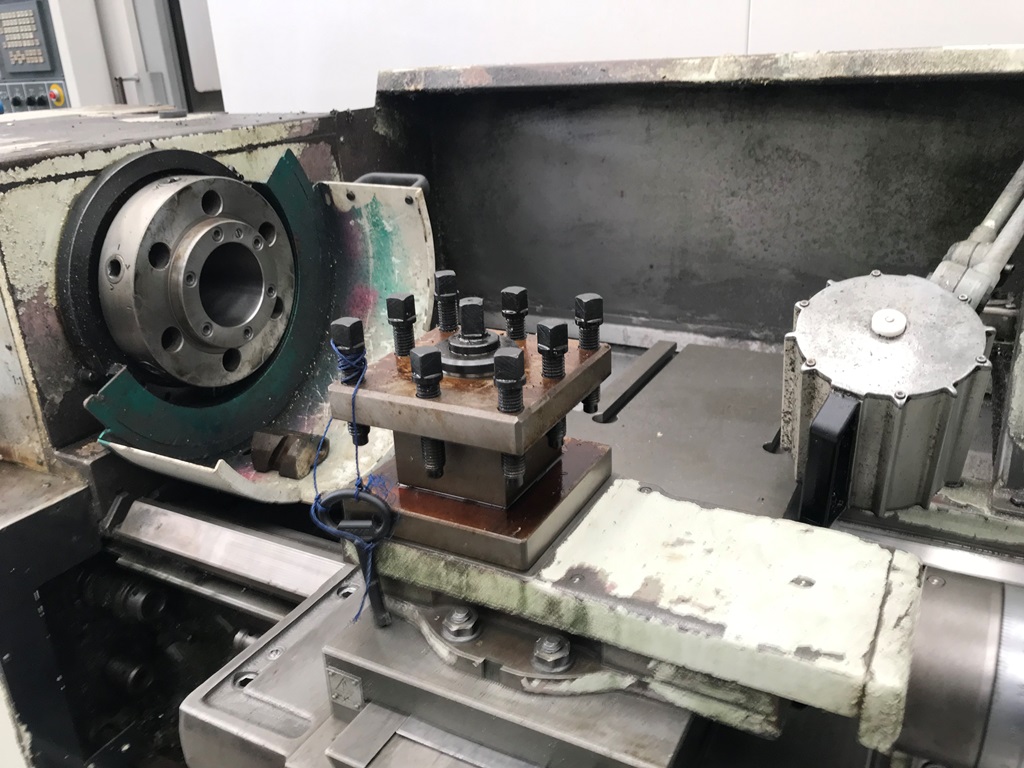

-Fixed four way tool postf
-Steady rest 120
USED MACHINE
