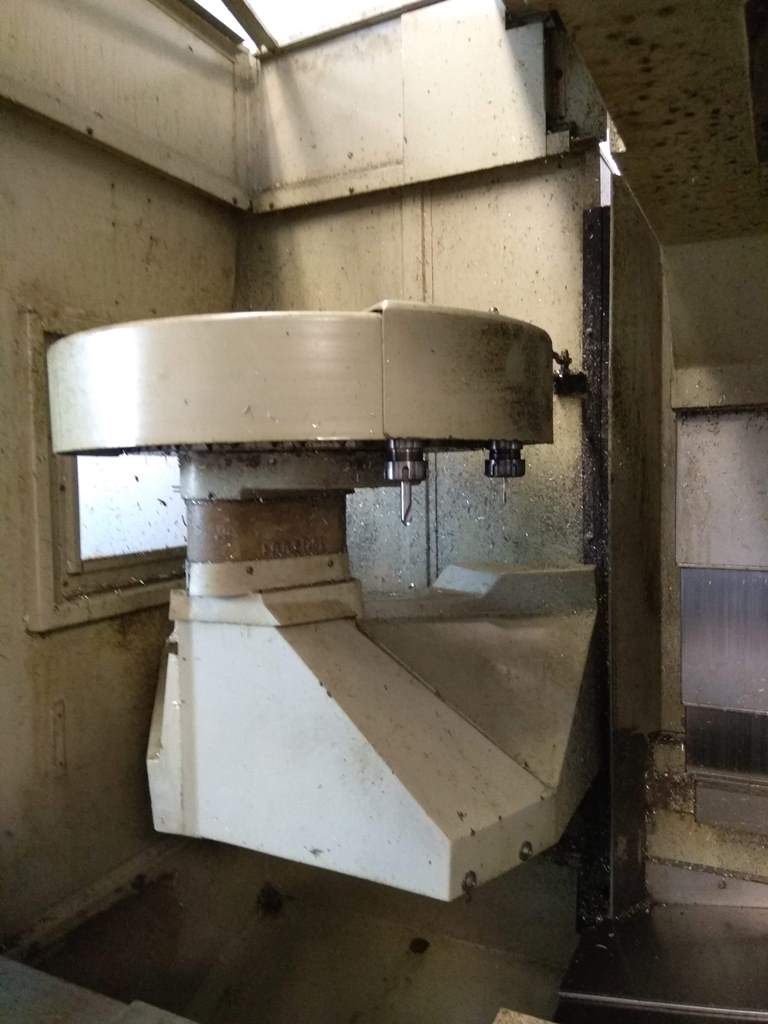

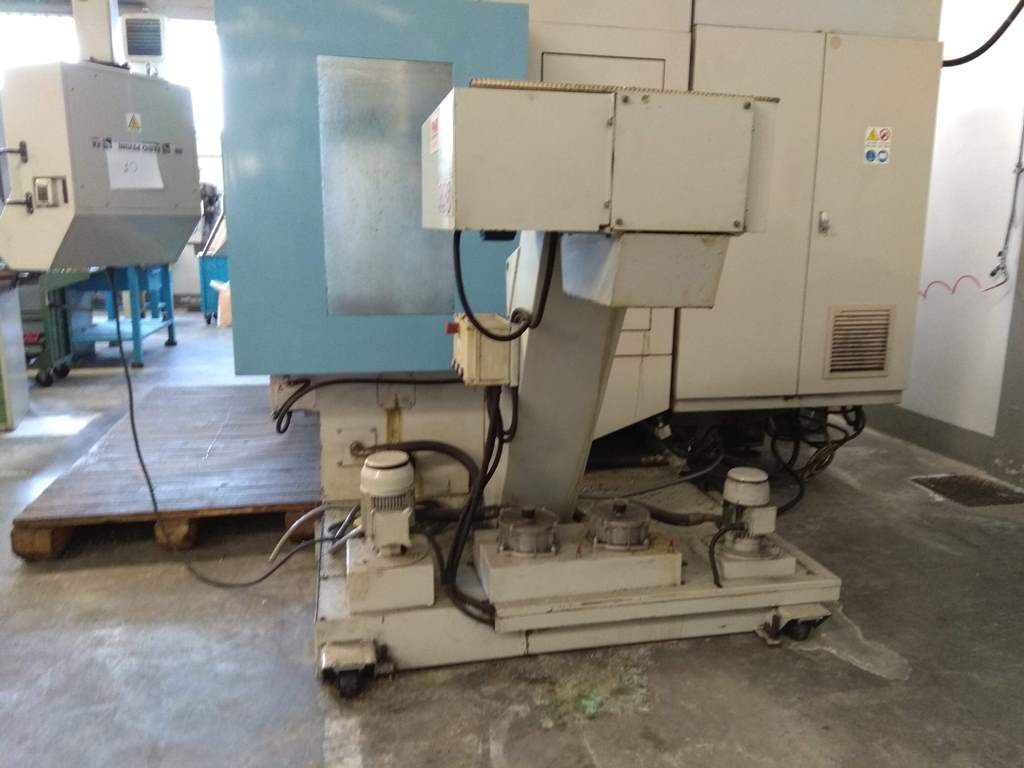

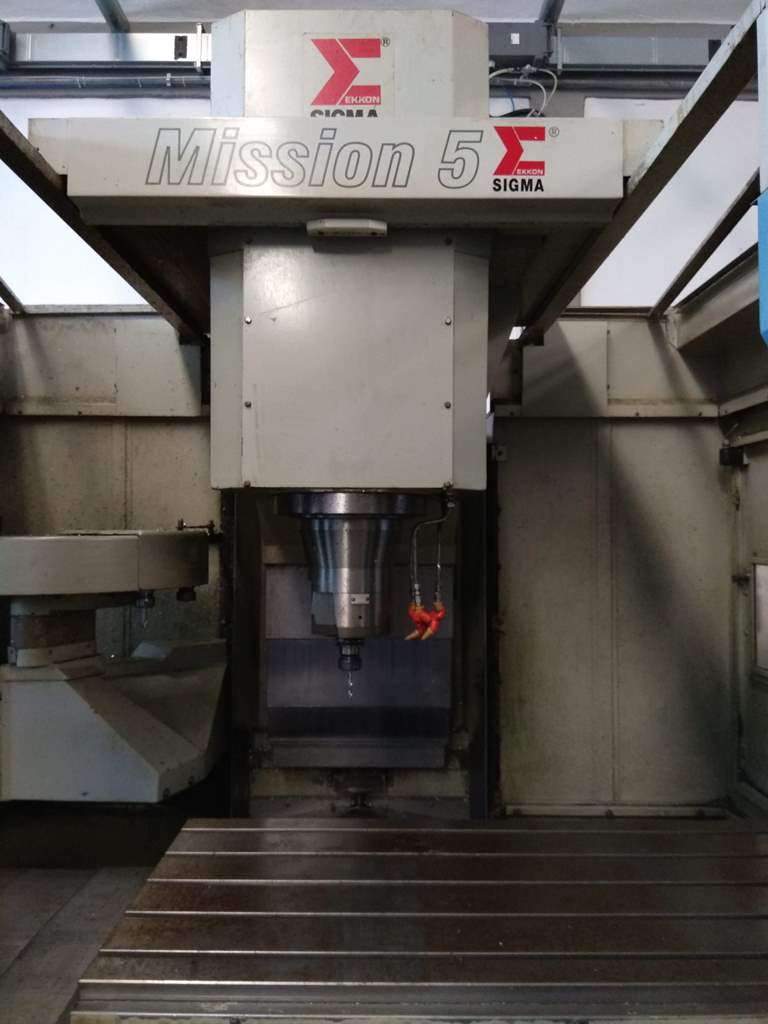

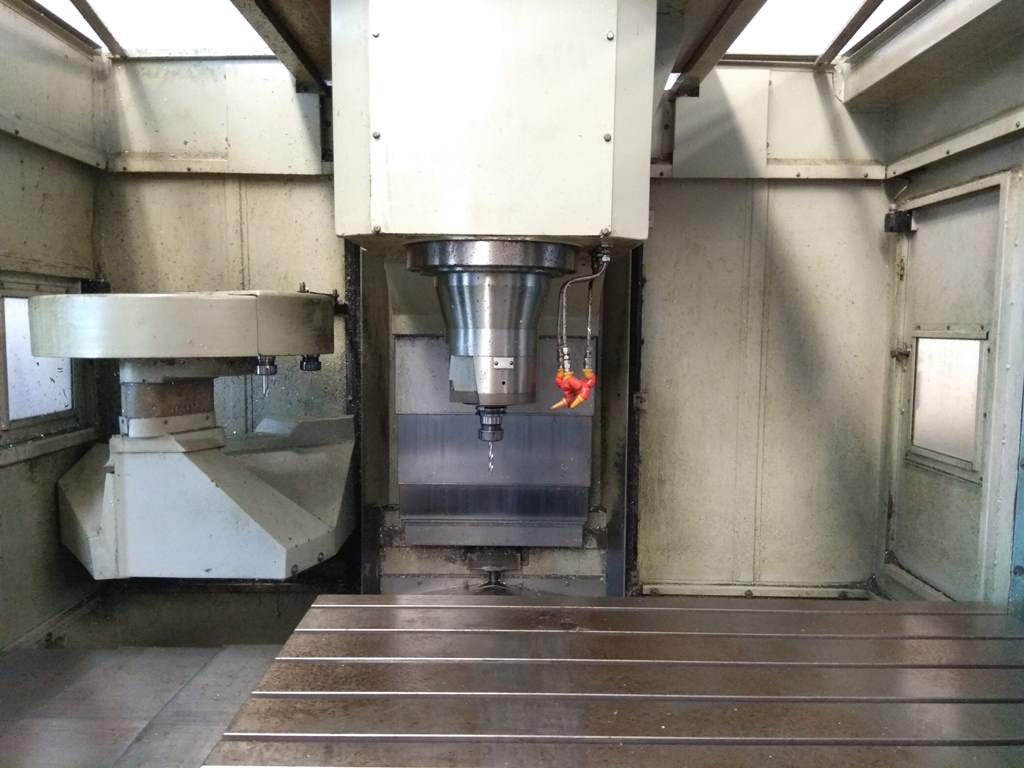

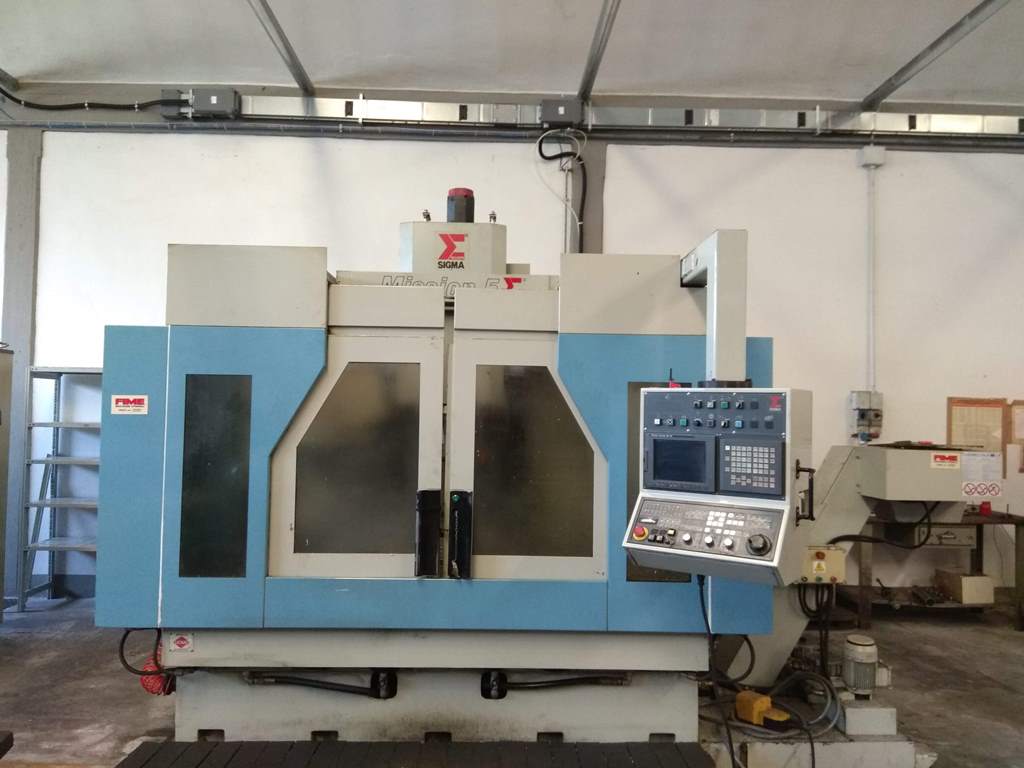

CENTER SIGMA MOD. MISSION 5
Single pallet
machine center - vertical - Used Machines
SIGMA
08343
08343

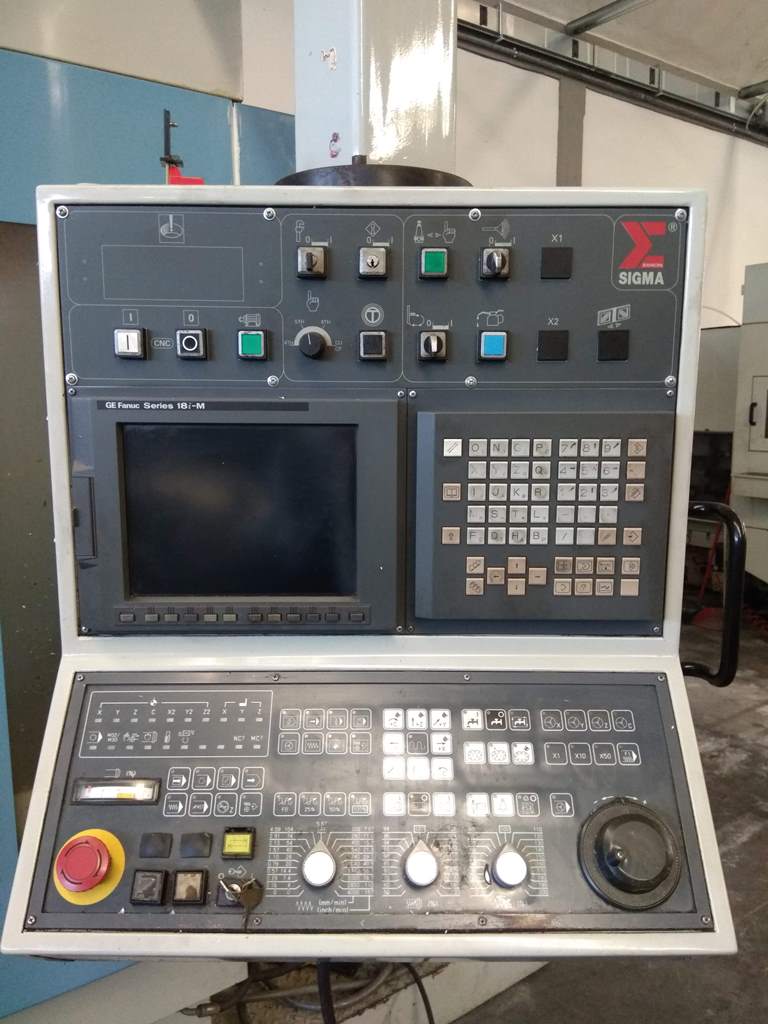

CNC FANUC 18i-M
TABLE SIZE 650x1400 mm
MAX TABLE LOAD 1400 Kg
X-AXIS TRAVEL 1250 mm
Y-AXIS TRAVEL 600 mm
Z-AXIS TRAVEL 685 mm
DISTANCE SPINDLE NOSE-TABLE 150 - 835 mm
DISTANCE COLUMN-SPINDLE AXIS 650 mm
SPINDLE 40-12000 rpm; 18,5-25 kW; ISO 40 - DIN
TOOL MAGAZINECHAIN-TYPE 21 POSITIONS
MAX TOOL LENGHT 250 mm
MAX TOOL DIAMETER 75 (100) mm
MAX TOOL WEIGHT 6 Kg
WEIGHT 8000 Kg
OVERALL DIMENSIONS 2860 x 3580 x 3045 mm
ACCESSORIES:
-HIGH PRESSURE COOLANT
-CHIP CONVEYOR
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
