MILLING MOMAC MOD. FU-2
Universal
milling - Used Machines
MOMAC
06968
06968
Table dimensions mm 1400x300
Longitudinal stroke mm 1100
Cross stroke mm 300
Vertical stroke mm 450
Spindle speed 12 v. 40-1800 Rpm
T-slots n.5
T-slots dimensions 16 H7
Quill diameter mm 90
Distance between spindle and table 50-450 mm
Spindle motor power 5,5 Kw
Max table load Kg 700
Approx. net weight Kg 3500
Approx. overall dimensions (L x P x A) mm 2000x2100x1800
Equipped with:
Digital readout 3 axis

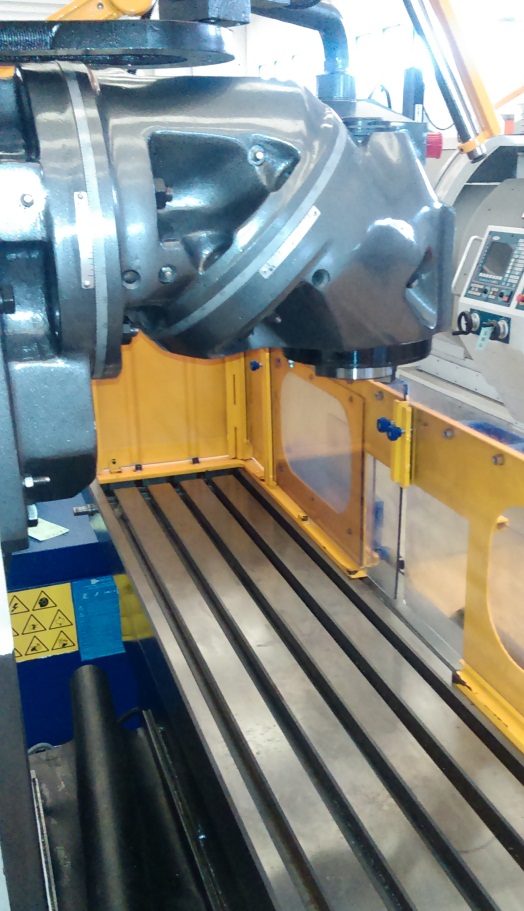

Manual birotative head ISO 40
Coolant system
Axis X, Y, Z motorized
Automatic rapid tool clamping
Chip tank

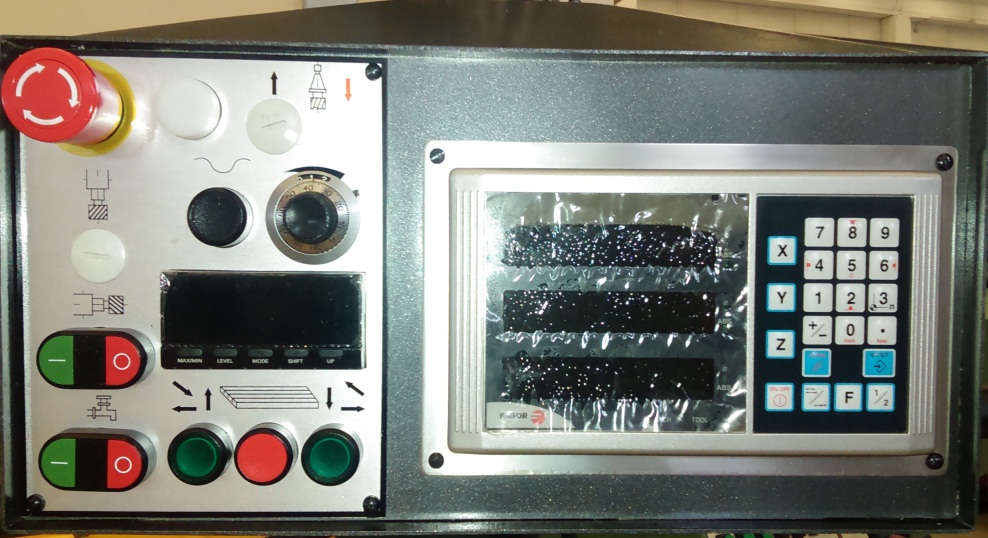

Control panel
Head and table cover
NEW MACHINE
YEAR 2009
