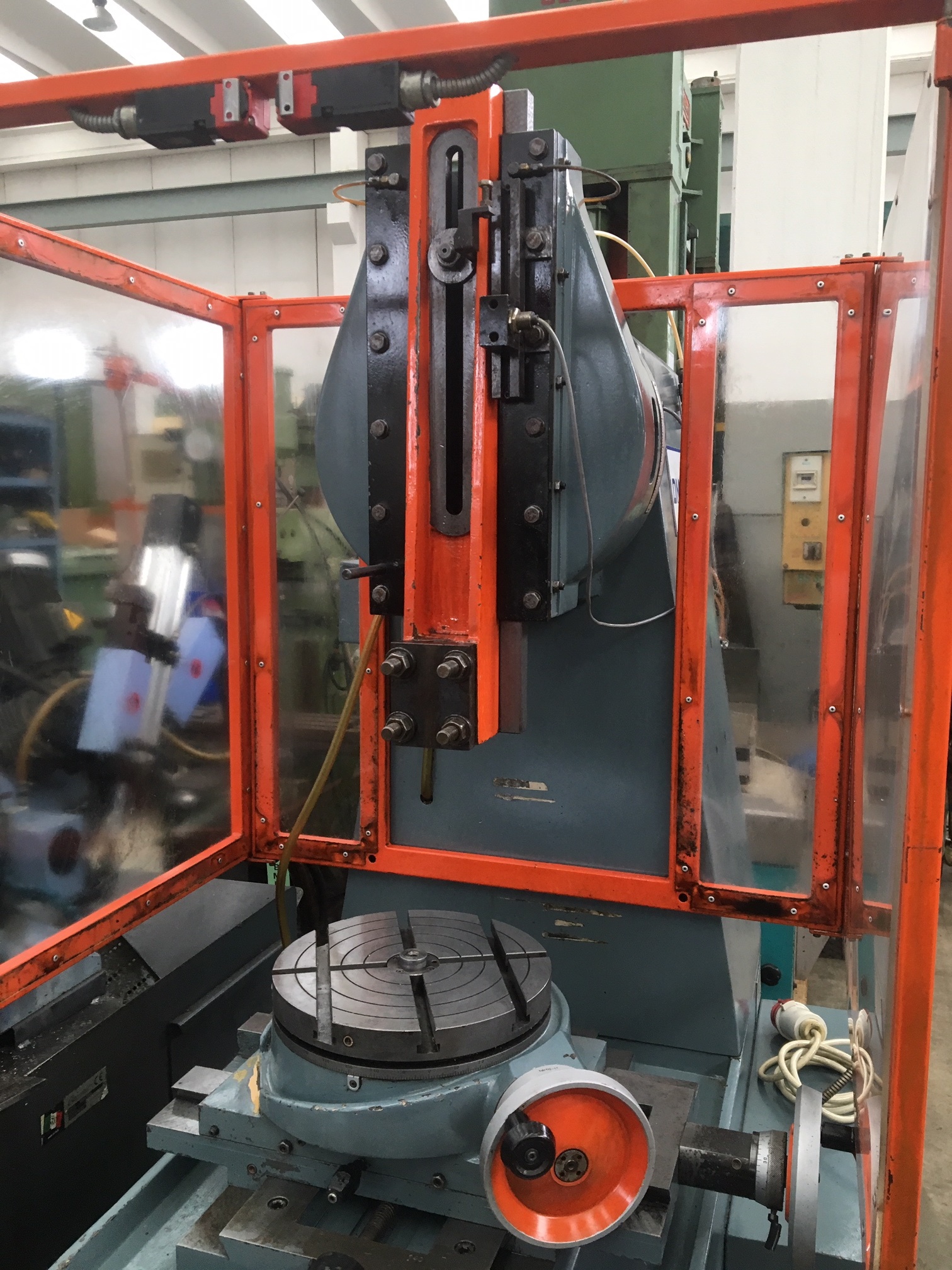

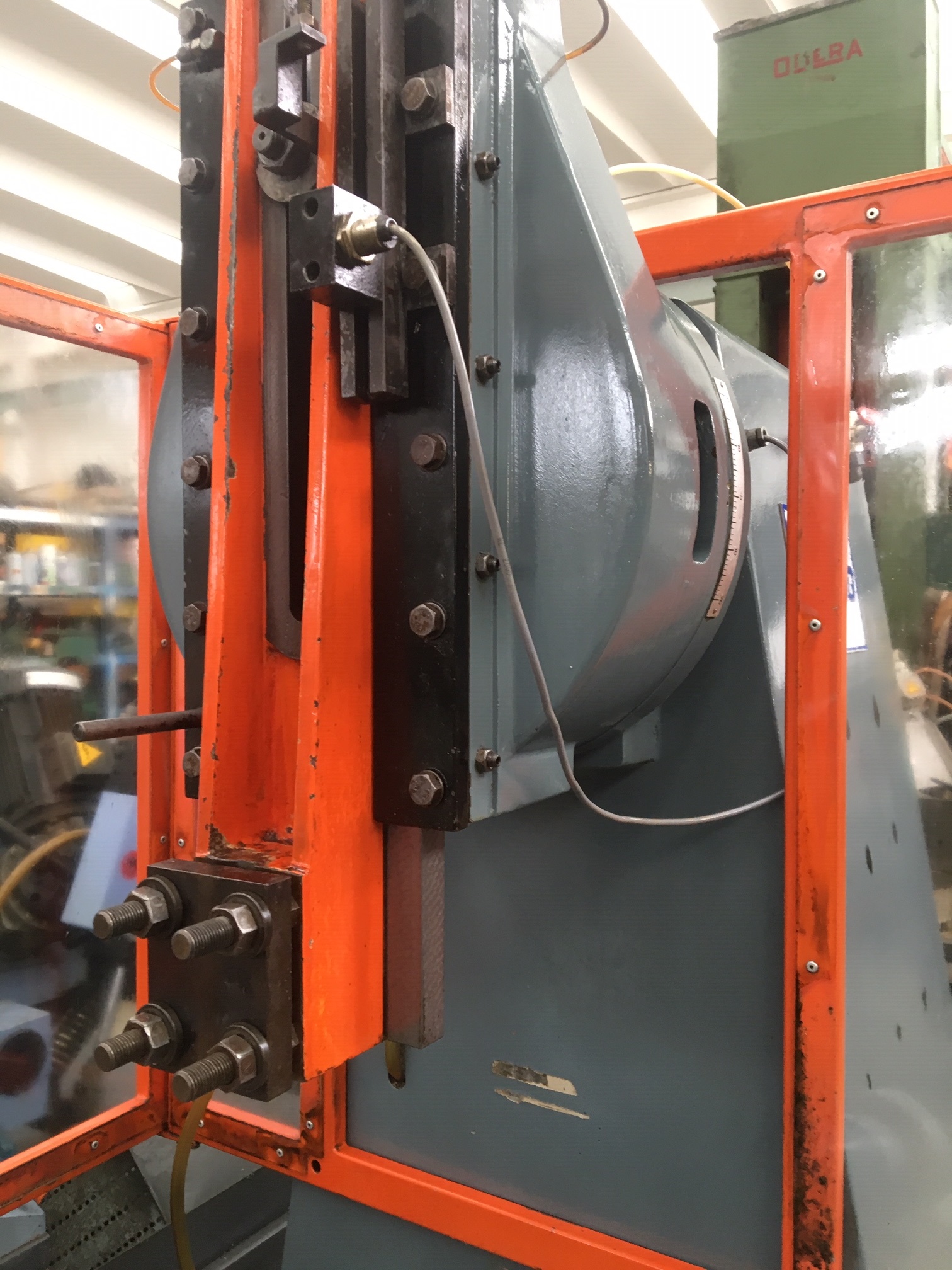

SLOTTING MACHINE MAJEVICA DM200
slotting - Used Machines
MAJEVICA
08328
08328
Adjustable tool travel mm 0-200
Distance between column and tool holder 350 mm
Distance between table and head 370 mm
Distance between rotary table and head 285 mm
Vertical RAM travel mm 360
Table dimensions 280x500 mm
Table longitudinal travel 230 mm
Table cross stroke 230 mm
Variable strokes per minute n/min 30-80

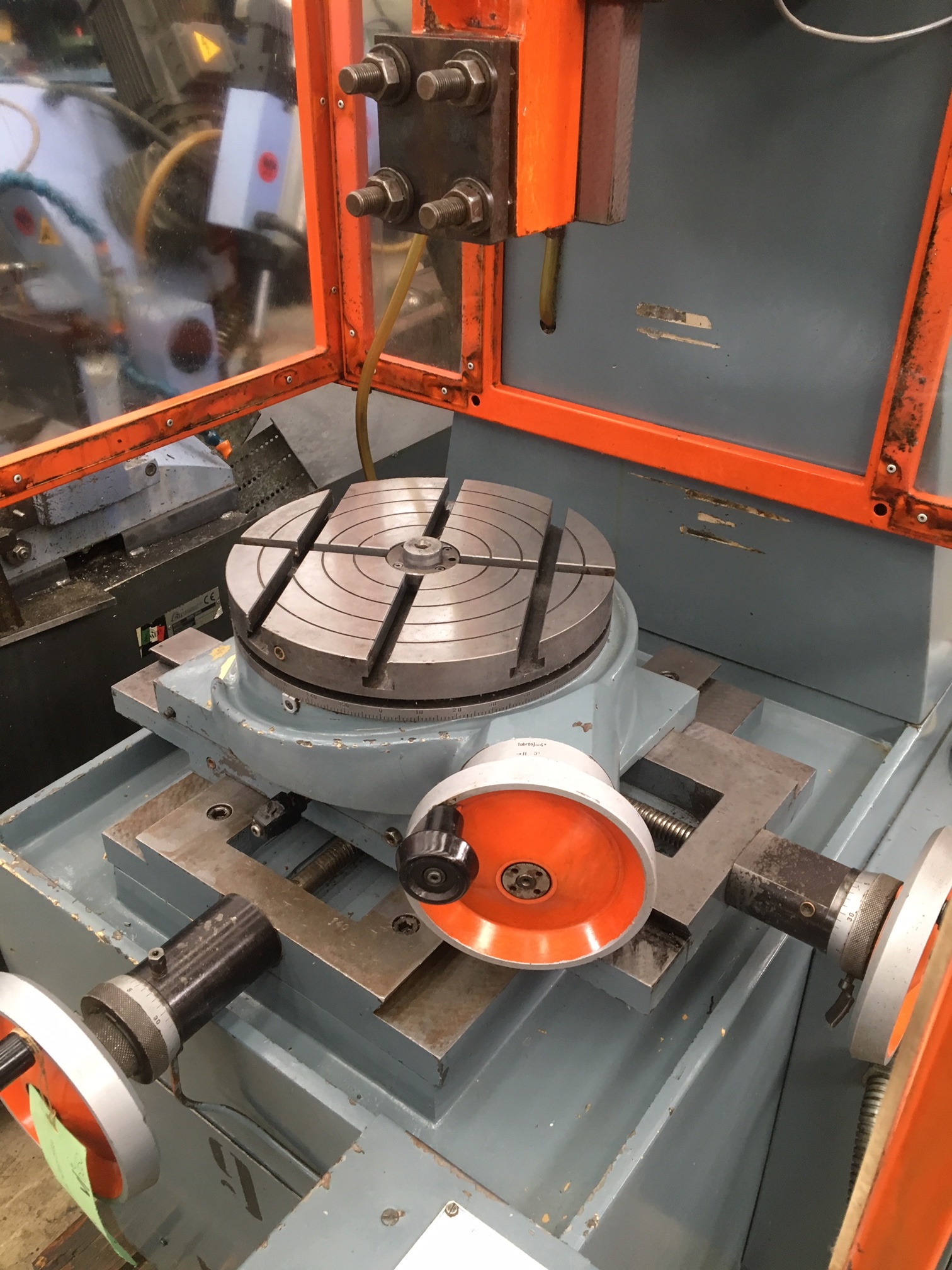

Rotary table diameter mm 310
Rotary table rotation 360 degree
Motor speed 1500 rpm
Motor power kW 1.5
Approx. overall dimensions mm 700x1150x2200
Approx. net weight 1270 kg
USED MACHINE
