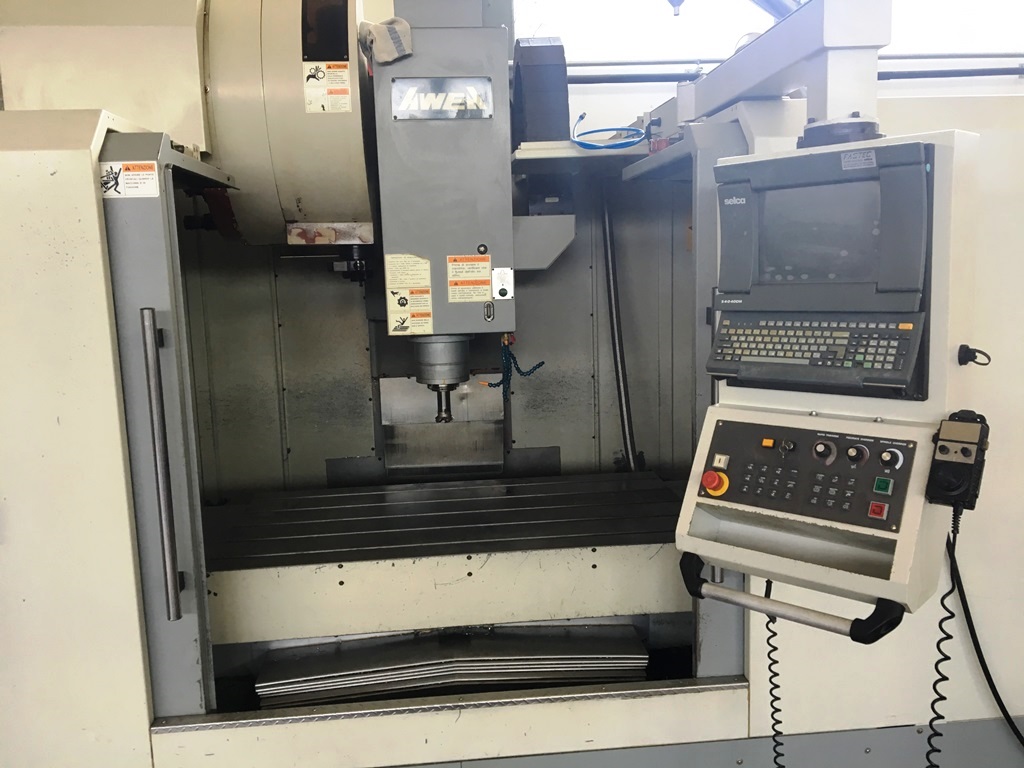

VERTICAL MACHINE CENTER AWEA BM-1300
Single pallet
08042
CNC Selca S4040DH

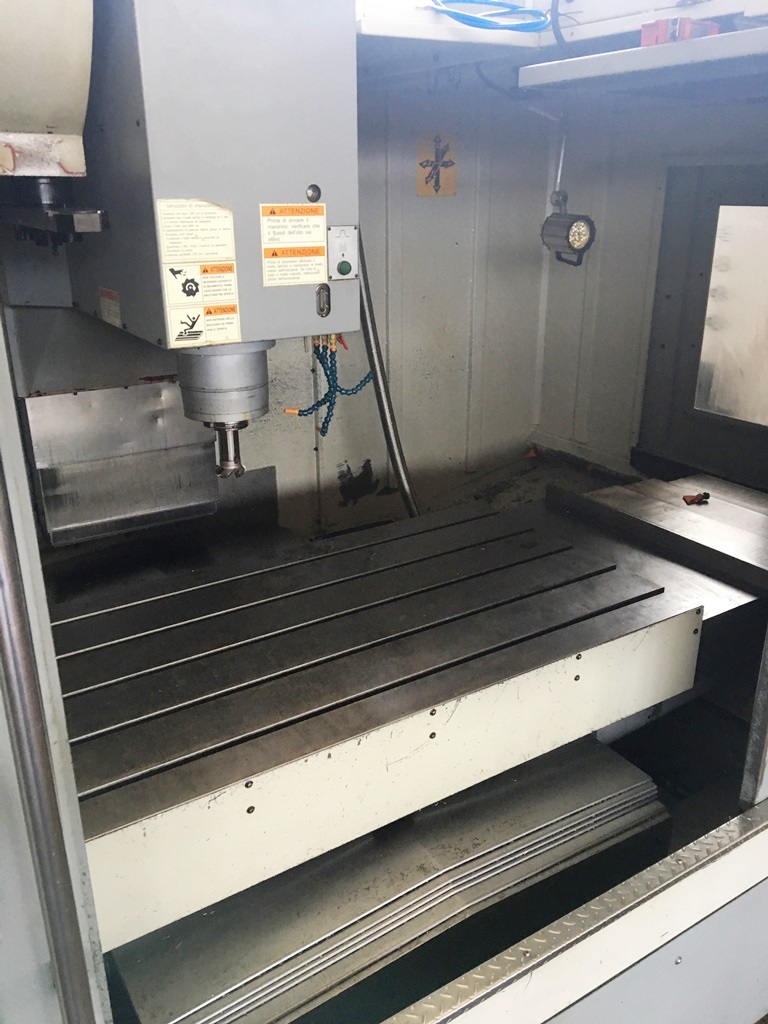

TABLE
Working surface mm 1500x800
Max load Kg 1200
TRAVELS
Axis X mm 1300
Axis Y mm 800
Axis Z mm 700
Distance spindle nose/table mm 150/850
Distance spindle centre/column mm 640
FEEDRATES
Rapid axis X,Y,Z mm/min 24.000

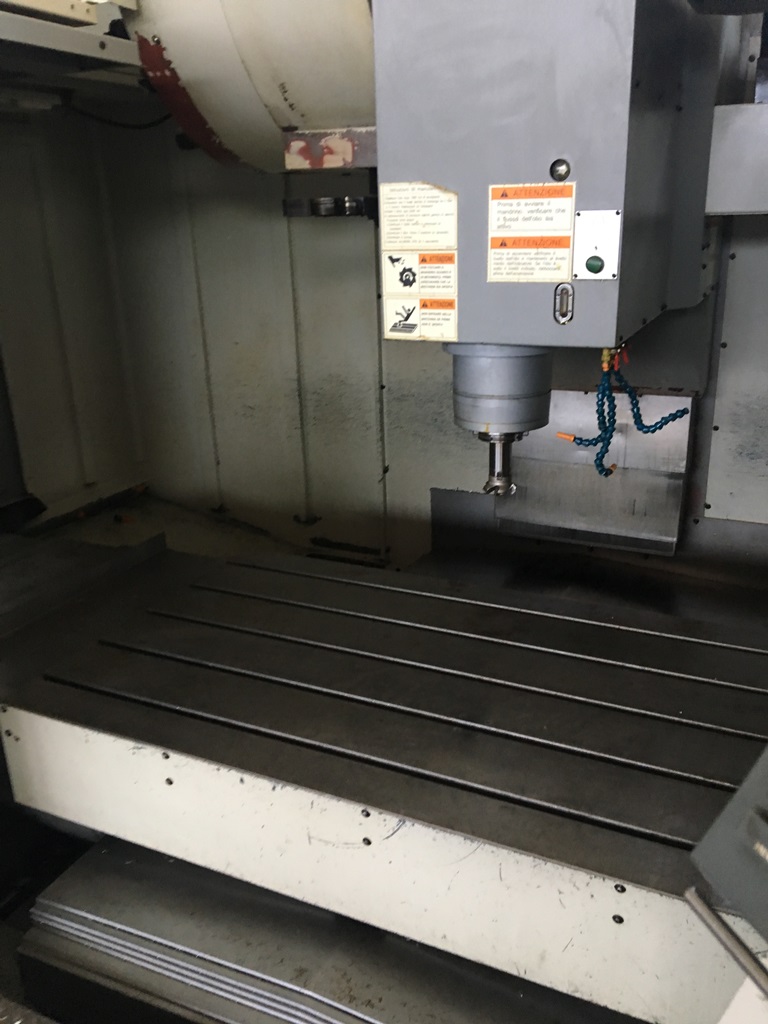

SPINDLE
Taper ISO 50 DIN 69871
Spindle speed 65-6.000 Rpm
Spindle power Kw 15/20
TOOL MAGAZINE
RANDOM type with double arm change
No. position 24
Max tool diameter mm 215
Max tool lenght mm 350
Max tool weight Kg 15
EQUIPED WITH:
Screw type chip conveyor + chip tray
High pressure through spindle 15 bar with separate tank and filtering unit
Preparation for rotary table (only wiring)
Wash gun
Halogen lighting of working area
Alarm lamp 3 colors
Transformer
USED MACHINE
YEAR 2005
FILL OUT OUR FORM FOR MORE INFORMATION
