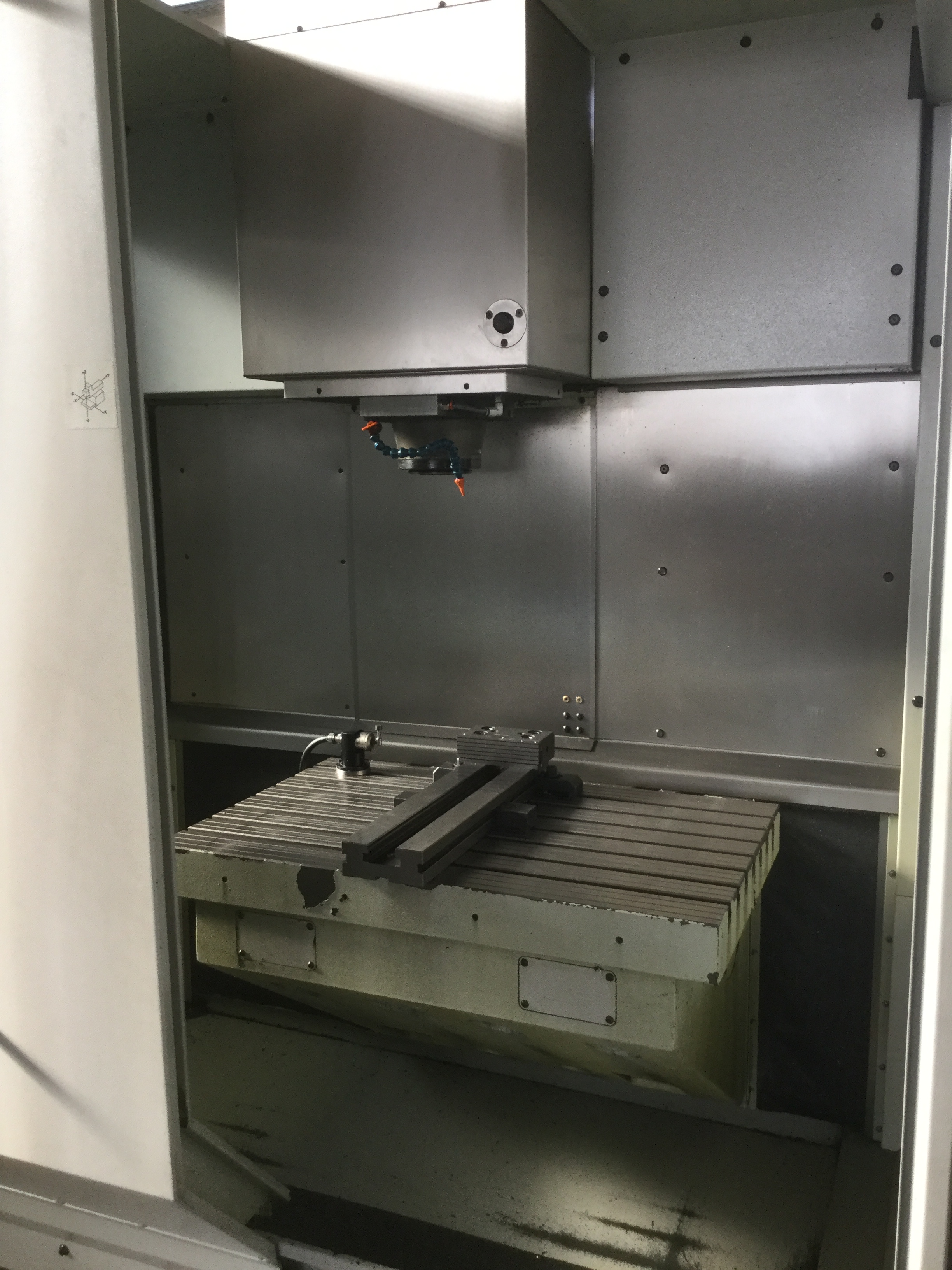

VERTICAL MACHINE CENTER MIKRON VCP 600
Single pallet
machine center - vertical - Used Machines
MIKRON
07961
07961

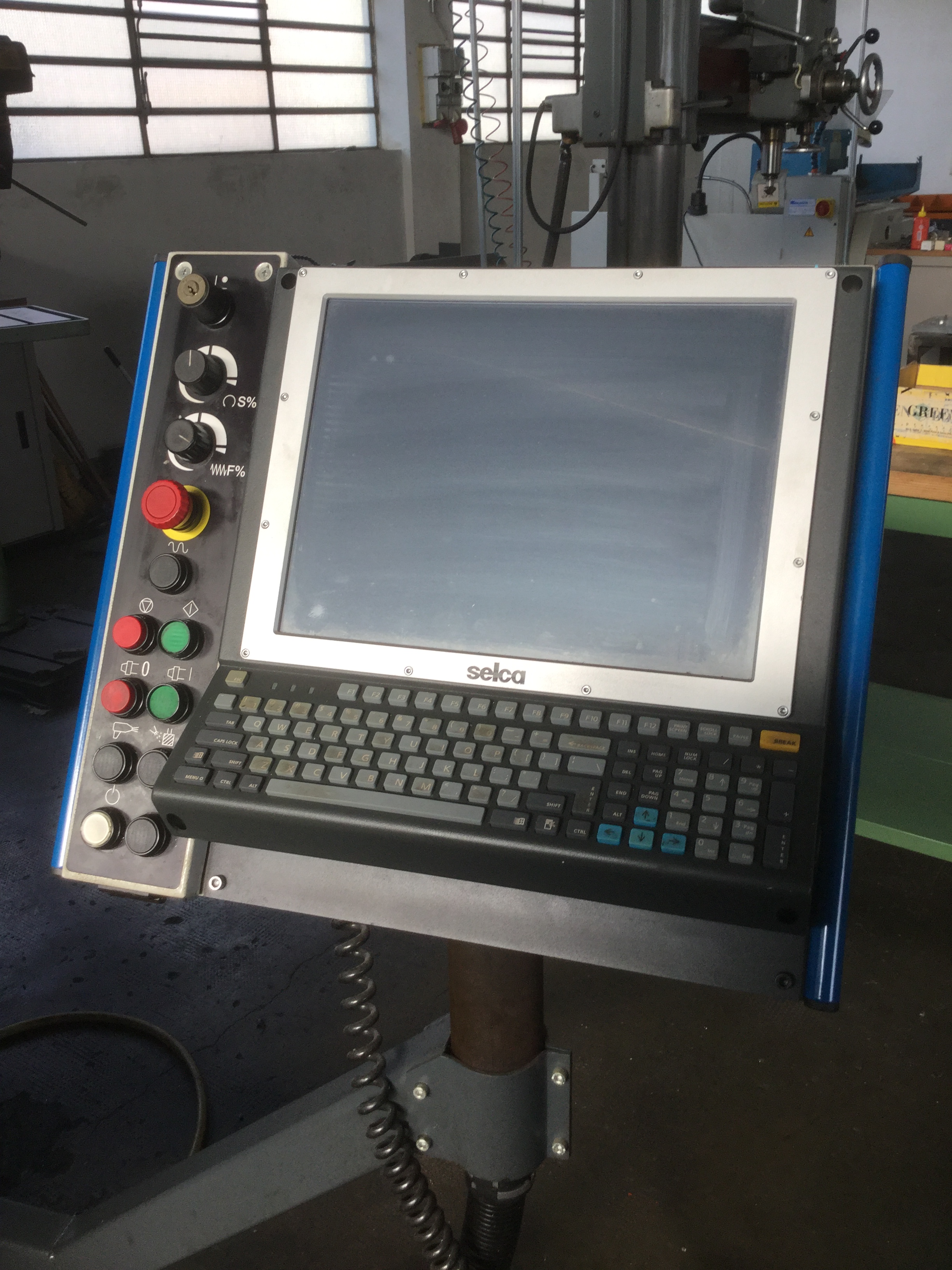

CNC SELCA S4045 PD (Plus)
Travel:
X mm 600
Y mm 450
Z mm 450
Table dimension mm 850 x 530
Spindle:
Speed 20.000 Rpm
Motor power 12/16 Kw
Spindle taper HSK 63
Rapid feed mm/min 22.000
COMPLETO DI:
Automatic tool change 30 positions
Remote handwheel
Probe TS27
Ehernet
Overall dimension mm 2900 x 2400 x 2850
Weight kg 6500
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
