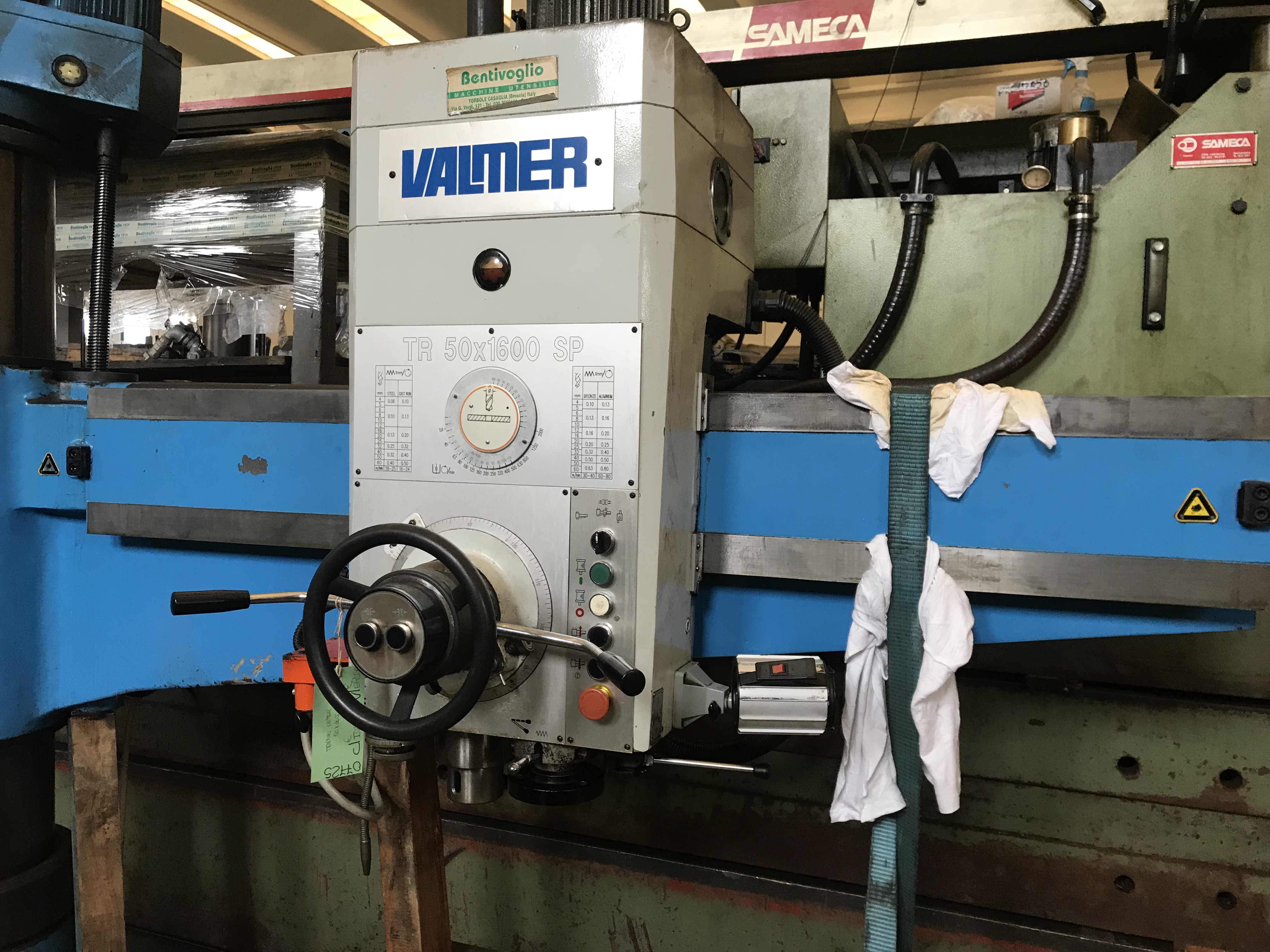

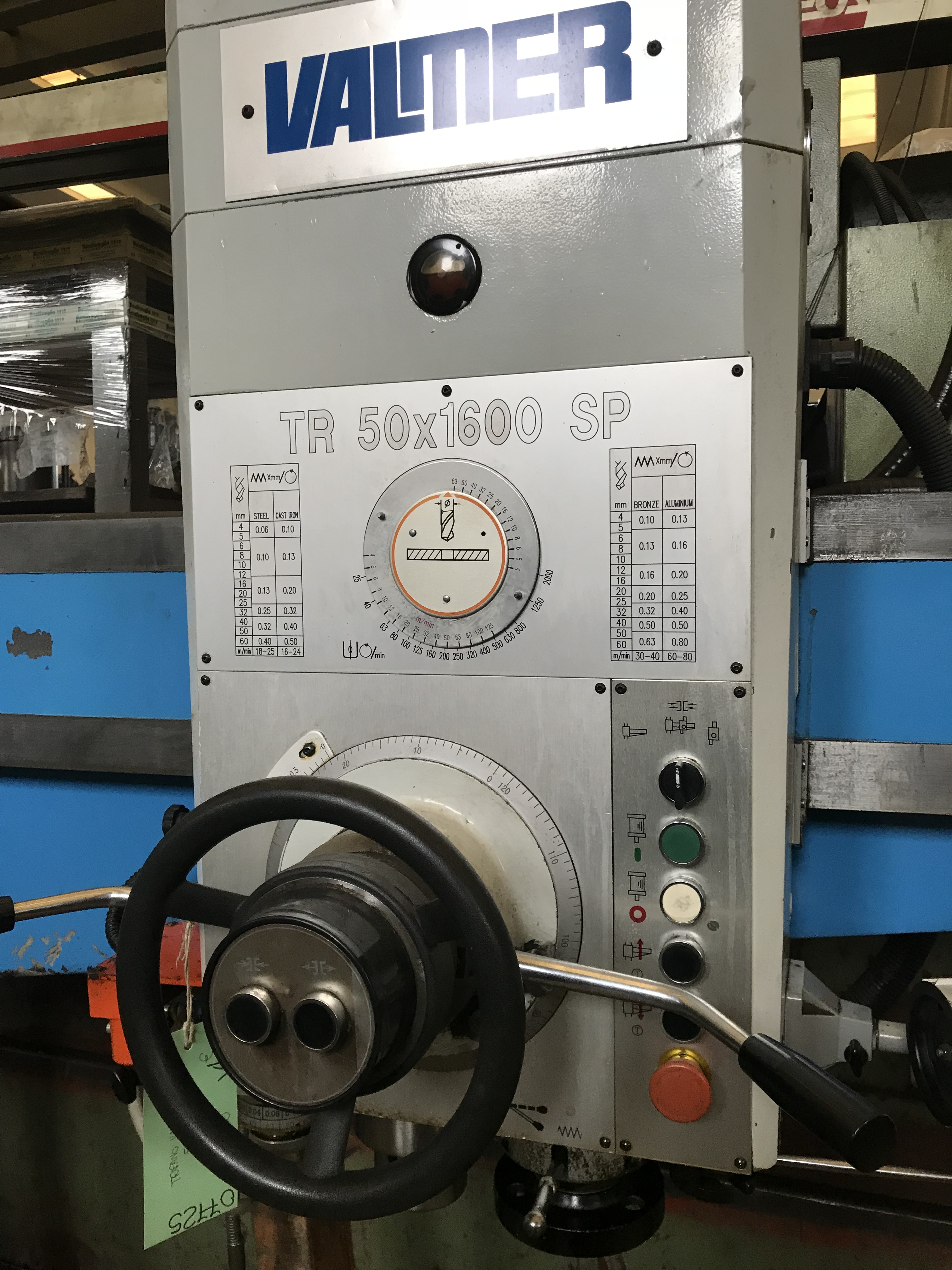

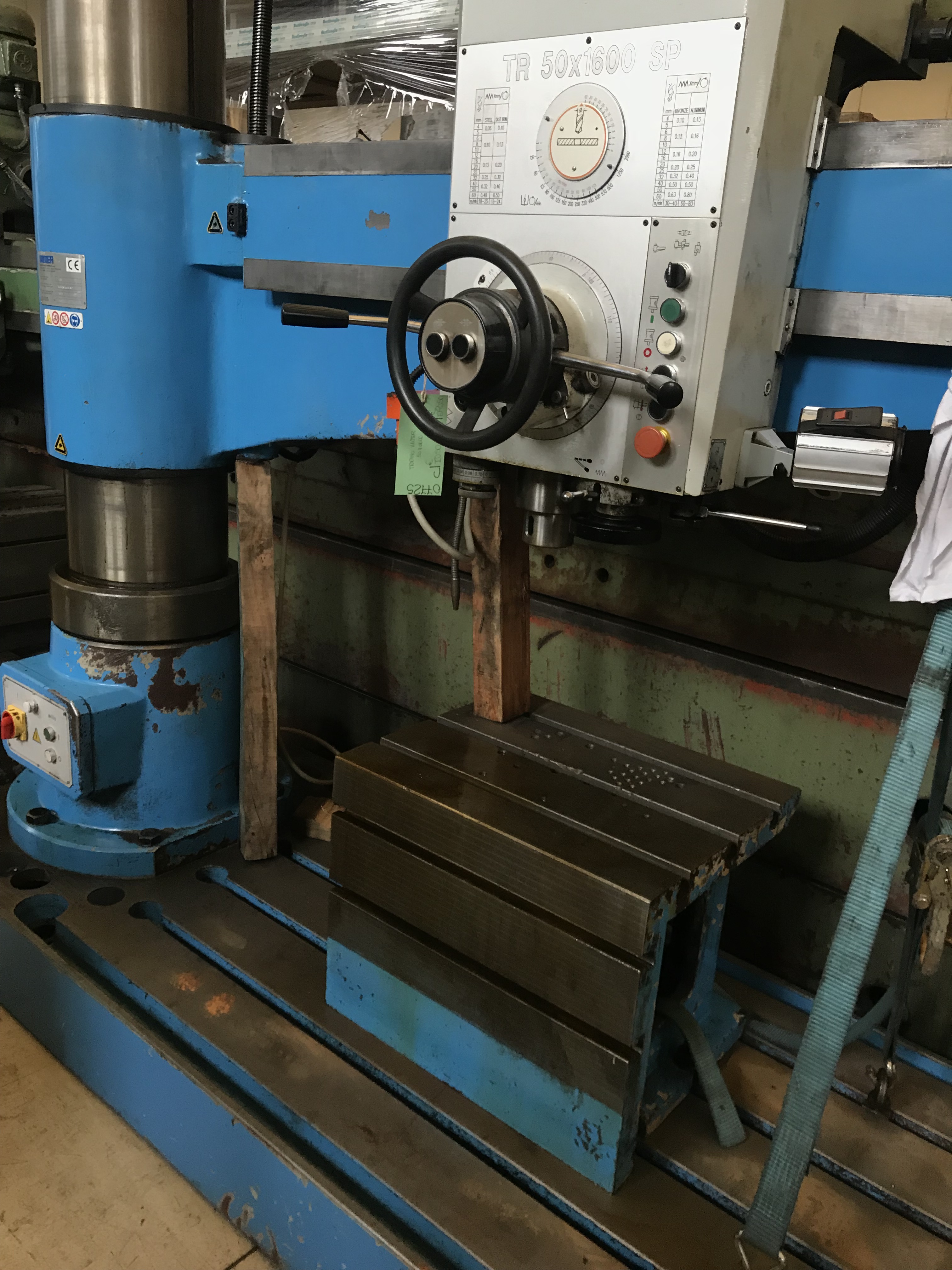

RADIAL DRILL VALMER TR 50/1600 SP
Radial
drilling - Used Machines
VALMER
07725
07725
Max. drilling diameter mm 50
Max. tapping diameter mm 27
Distance max. (spindle axix/column) mm 1600
Distance min. (spindle axix/column) mm 350
Head travel horizontal mm 1250
Dist. max. spindle nose and working basement surface mm 1220
Dist. min. spindle nose and working basement surface mm 320
Vertical arm travel mm 600
Table dimensions mm 600 x 500 x 500
Morse taper MT 5
Spindle travel mm 315
Speeds 16 (25-2000 min.)
Feeds 16 (0.04 - 3.2 mm/U)
Main motor power KW 4
Machine dimensions mm 2500 x 1060 x 2655
Weight Kg 3500
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
