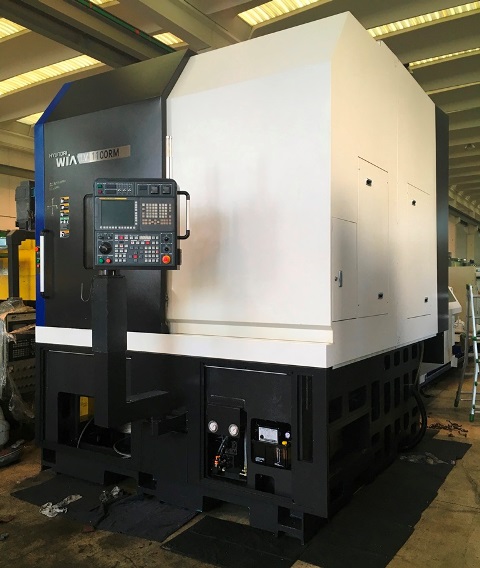

LATHE HYUNDAI WIA LV1100RM
lathe vertical - Used Machines
HYUNDAI WIA
07893
07893
LIVE TOOLS

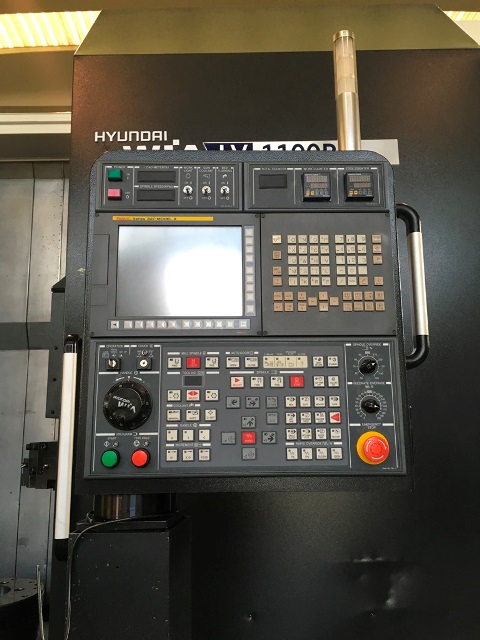

CNC Fanuc F32i
CAPACITY:
Max swing diameter mm 1355
Max turning diameter mm 1160
Max turning lenght mm 1000
STROKES:
x-Axis Travel mm 620
Z-Axis Travel mm 1000
C-Axis 0,001 degrees
SPINDLE:
Spindle speed rpm 850
Spindle motor power kW 45/60

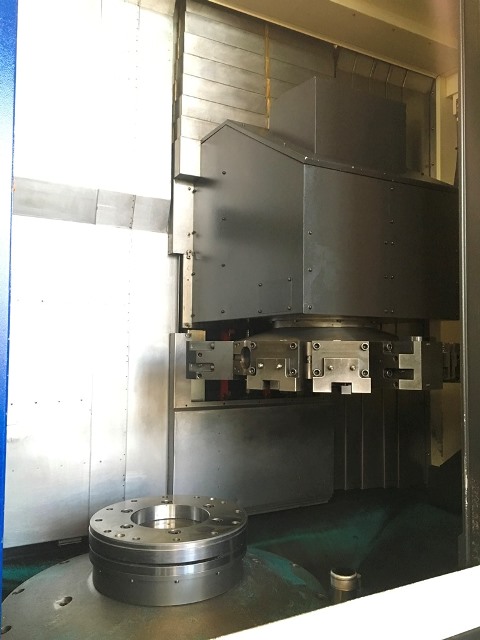

TURRET:
Tools number 12
Max live tools rotation 3000 rpm
EQUIPPED WITH:
-Chip conveyor
-Chuck diam. mm 1000
USED MACHINE
YEAR 2011
FILL OUT OUR FORM FOR MORE INFORMATION
