UNIVERSAL MILLING MACHINE N.2
Universal
milling - Used Machines
06693
Longitudinal stroke X mm 700
Cross stroke Y mm 240
Verticale stroke Z mm 420
Table mm 1150x300
Spindle speed Rpm 70-1500
Spinlde taper ISO40
T-slots n.3
Slideway stroke mm 400
Distance between spindle and table mm 500
Spindle motor 3 Kw, total installed power 4 Kw
Horizontal spindle ISO40
Horizontal spindle speed n.12, Rpm 35-1600
Table rotation +/- 45 degree
Tilting head 45 gradi
Approx overall dimensions (LxPxA) 1600x2050x1750
EQUIPPED WITH:
Speed variator
Readout 3 axis
Coolanti unit
Halogen lamp
Fixed control panel
SAfety guard
USED MACHINE
YEAR 2008
FILL OUT OUR FORM FOR MORE INFORMATION
Potrebbero interessarti

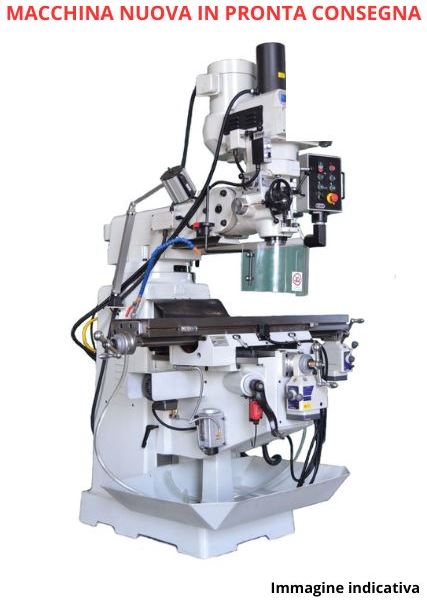

MILLING BOMAC MOD. 858II
