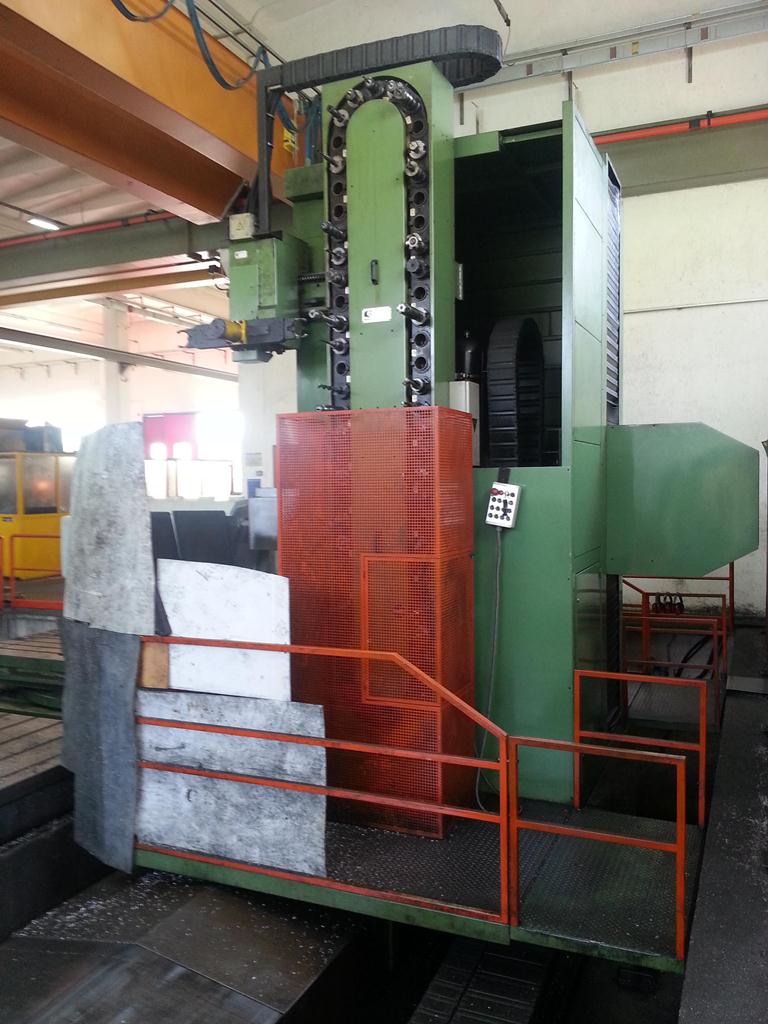

MILLING DEBER MOD. M4M/8
Floor type
06431
TRAVEL COLUMN

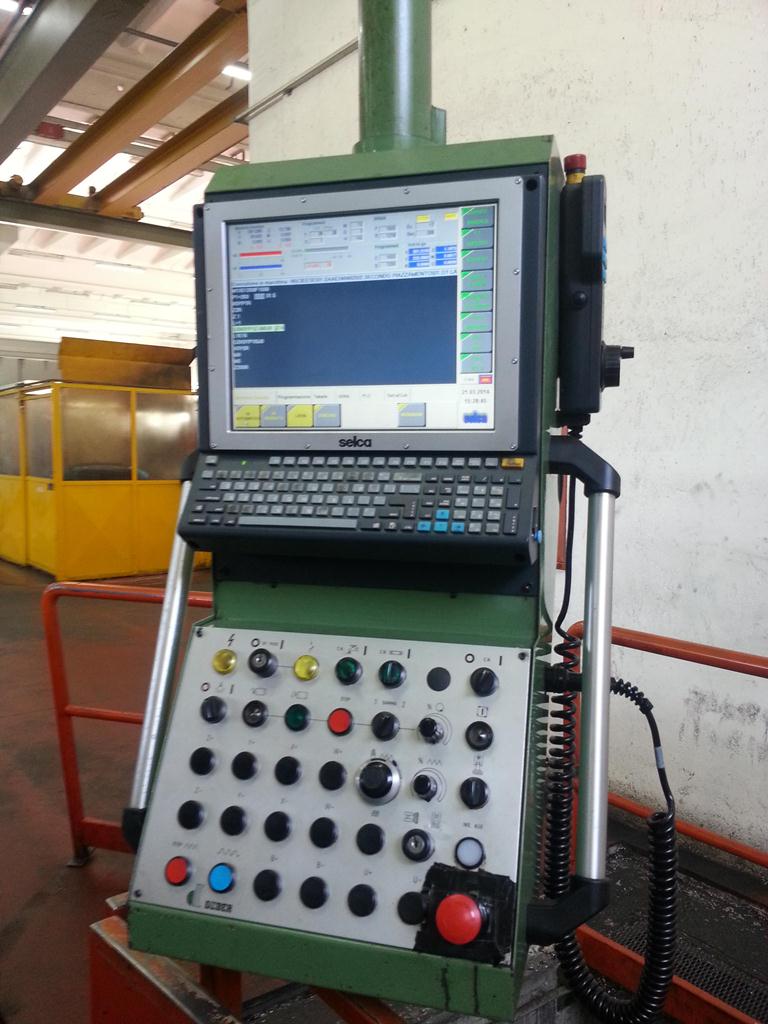

CNC SELCA 4045
STROKES AND FEEDS:
-Axis X mm 8000
-Axis Y mm 1000
-Axis Z mm 2500
-Rotary moving table mm 2200x2500
Load 40 ton.
V axis travel table mm 1500
SPINDLE:
-Motor spindle power kW 37- Nm 1000
-Spindle taper ISO 50
-Spindle speed rpm 2000

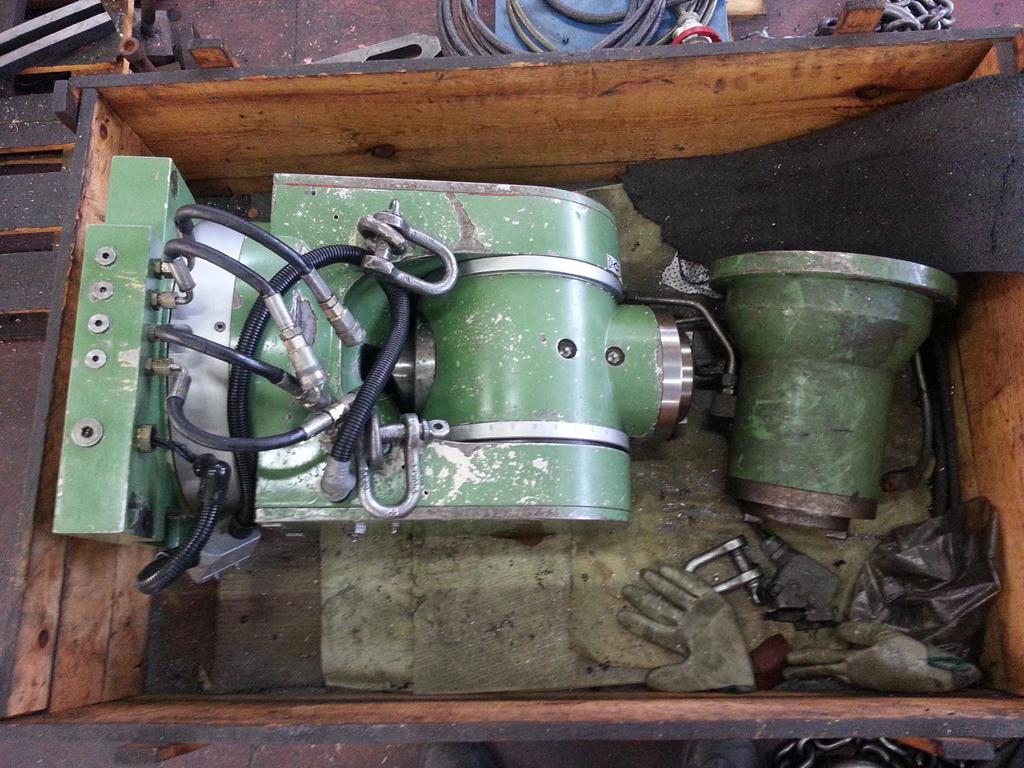

-Tilting head (mod. T09)
Rotation on the ram 2,5 deg.
Front tilting 2,5 deg.
TOOLS CHANGE:
-Chain type n. 60 positions - ISO 50
FLOOR PLATES:
-Dimensions lenght x width mm 6000x2500
-T-slot width mm 28
WEIGHT:
-Net weight Kg 38000
-Max installed power kW 50
EQUIPED WITH:
-Chip conveyor
-Rotary table Scotti diam. mm 350 + tailstock
-Spindle support
-N.02 squares
-N.06 magnetic tables
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
