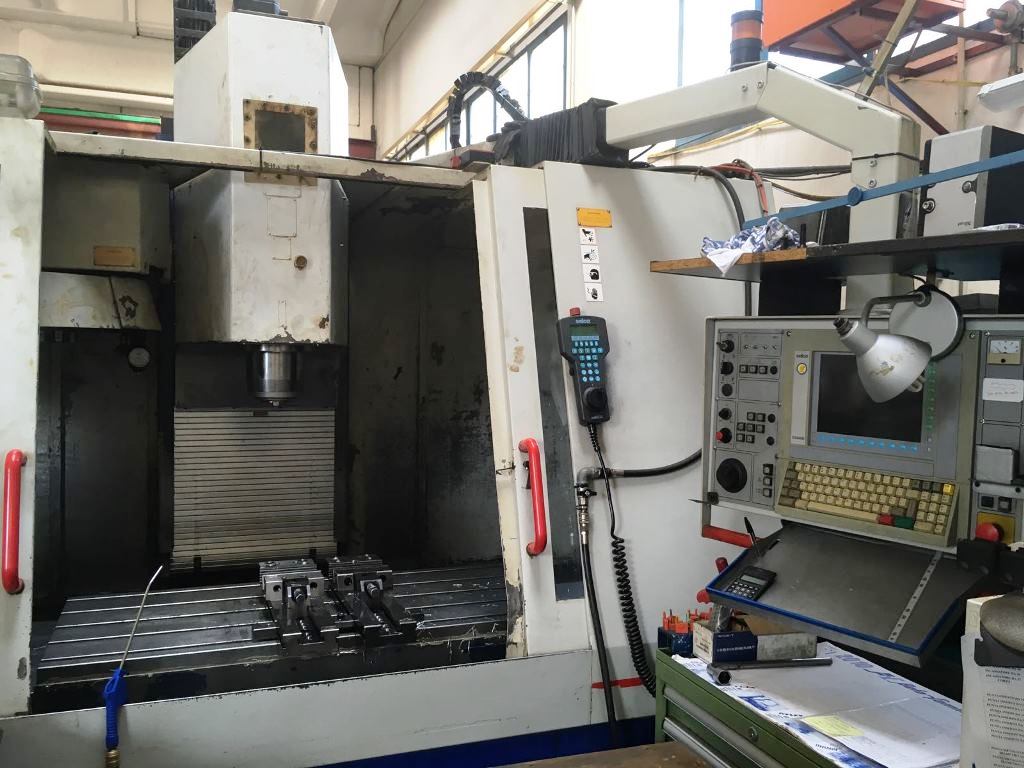

CENTER ZPS MOD. MCFV 1060 NM
Single pallet
07362

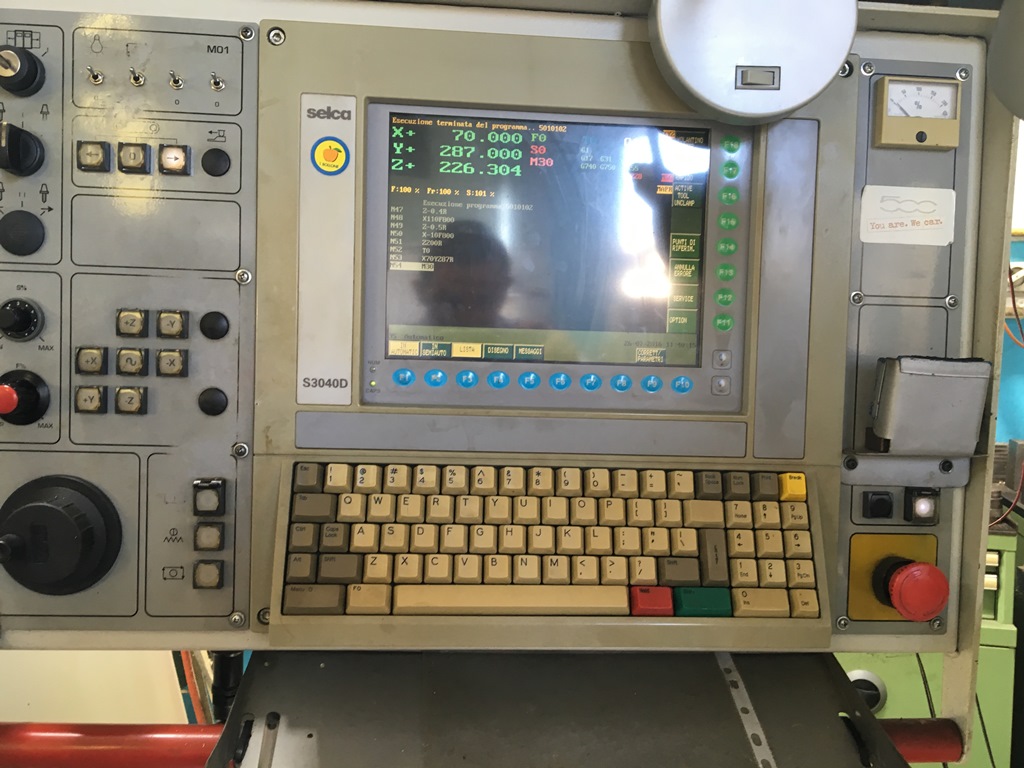

CNC SELCA S3040D
STROKE:
Axis X mm 1016
Axis Y mm 610
Axis Z mm 760
Distance between spindle nose - table surface mm 150:910
Distance between spindle center - column mm 635
TABLE:
Table dimensions with T-slots mm 1270x590
T-slots dimensions mm 18H6
T-slots distance mm 125
Max piece dimensions (with tool lenght mm 300) mm 1016x590x300
Table load Kg 900
SPINDLE:
Spindle taper ISO 40
Spindle speed rpm 80-8000
Speed range with automatic trasmission n.2
Spindle motor power (cont./30 min) kW 11/15
AUTOMATIC TOOL CHANGE:
Toolholder taper DIN 69871-A40
Tool magazine capacity n. 24
Max tool diameter (with adjacent stations full/empty) mm 90/160
Max tool lenght mm 300
Max tool weight Kg 8
Max tools weight on each magazine Kg 68
MACHINE WEIGHT AND DIMENSIONS:
Weight Kg 6700
Overall dimensions mm 2800x2200x3500
EQUIPPED WITH:

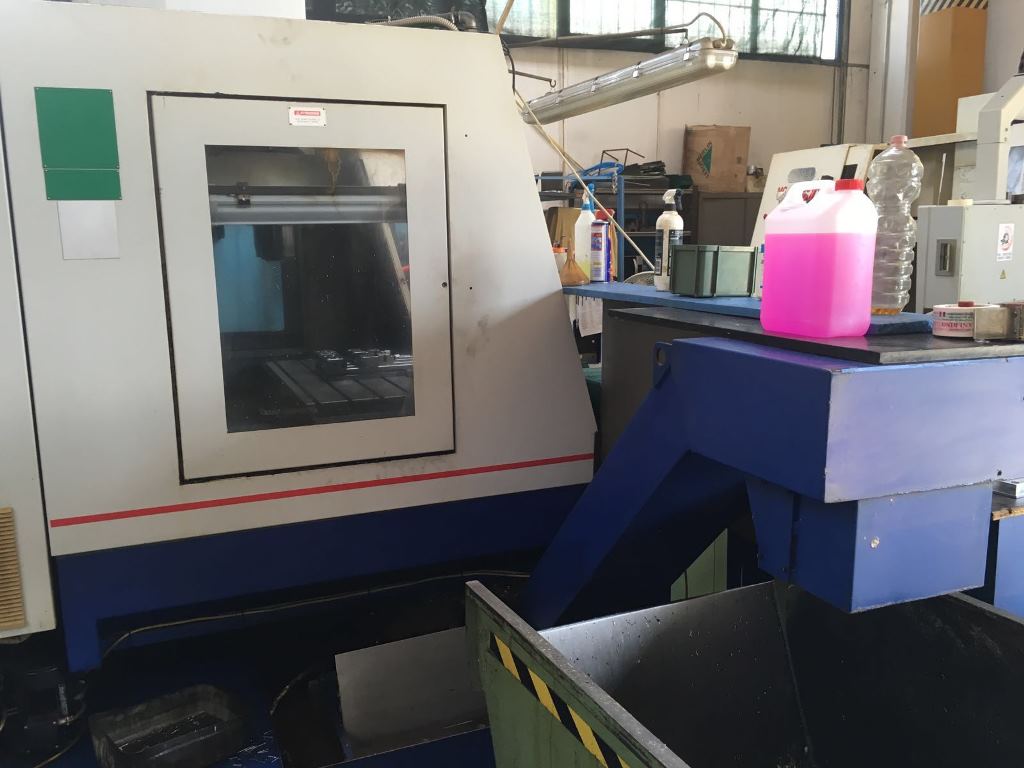

-Chip conveyor
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
