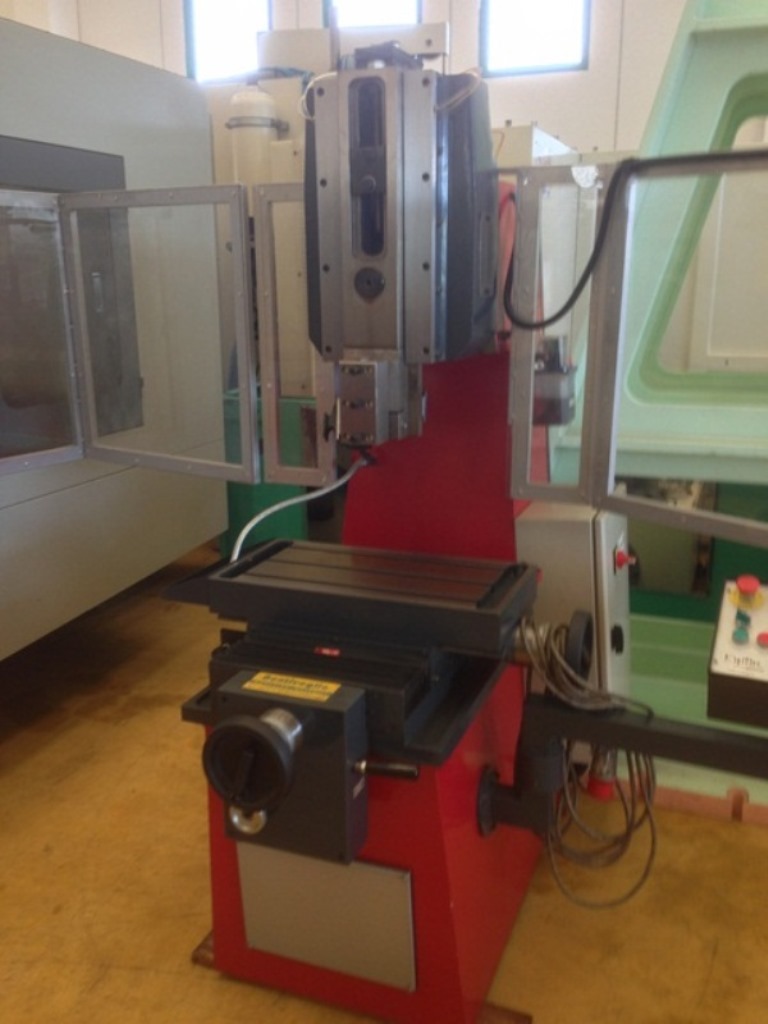

SLOTTING MACHINE EGITAL MOD. S 200
slotting - Used Machines
EGITAL
New01672
New01672
- Tool travel mm.0-200
- Stroke 20:70
- Distance table/head mm.390
- Swivel angle of head +/- 45.
- Worktable mm.600x300
- Ram adjustment mm.250
- Longitudinal travel mm.250
- Transverse travel mm.280
- Self-freaking main motor Kw 1.5
- Weight Kg. 1030
- Overll dimensions mm.840x1450x1850
STANDARD EQUIPMENT
- Automatic tool stop
- Adjustable speed of stroke
- On display beats working at minute
- Working lamp
- Range of longitudinal feeds mm/min.0,01 mm/max 0,3
- Coolant system
- Centralized lubrification
- Safety screen
- Instruction manual and Declaration CE
NEW MACHINE CE
