SHEAR STEEL CUTTING OMERA
Punching machines
06967

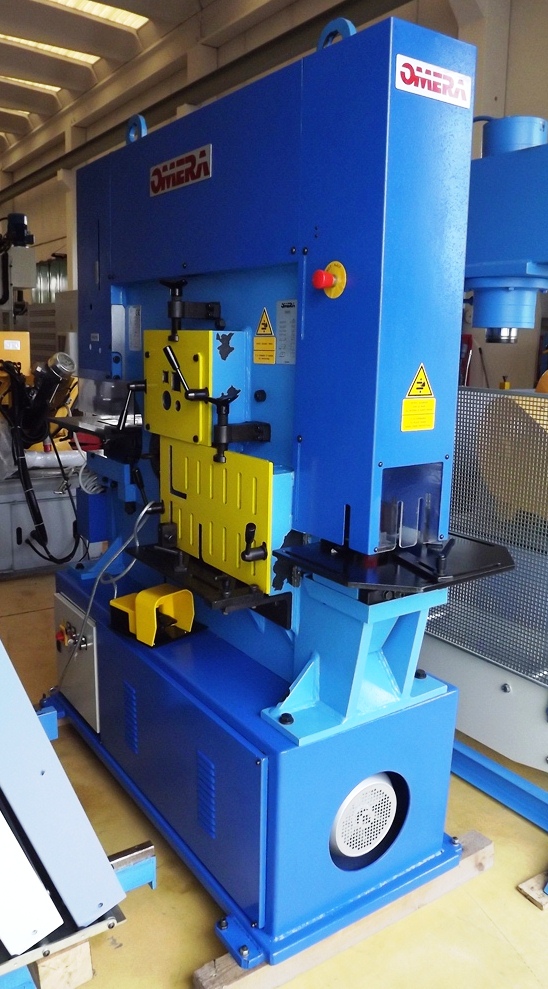

MOD. OM 90 HY
PUNCHING:
Max hole of 35 mm on a thickness of mm 20
IPN i-beams in flange on profiles with size between mm 240 and 500
UPN channels in web on profiles with size between mm 100 and 300
IPN channels in web on profiles with size between mm 80 and 600
FLAT STEEL CUTTING
Width of flat steel (max thickness mm 15) mm 450
CUTTING ROUND AND SQUARE PROFILES:
Max size of square profile (side) mm 20-50
Max size of round profile (diam.) mm 20-55
CUTTING L-SHAPED PROFILES:
Max size of L-shaped iron for 90 degrees cutting (lxlxs) mm 150x150x12
Max size of L-shaped iron for 45 degrees cutting (lxlxs) mm 100x100x10

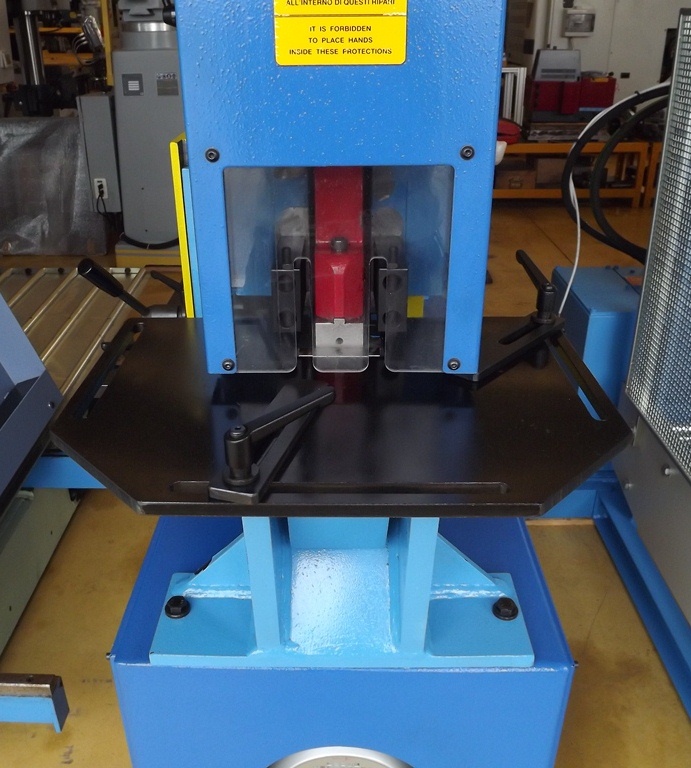

SLOTTING:
Max size rectangular slotting in one stroke (hxlxs) mm 65x52x12
NEW MACHINE
YEAR OF PRODUCTION 2008
FILL OUT OUR FORM FOR MORE INFORMATION
