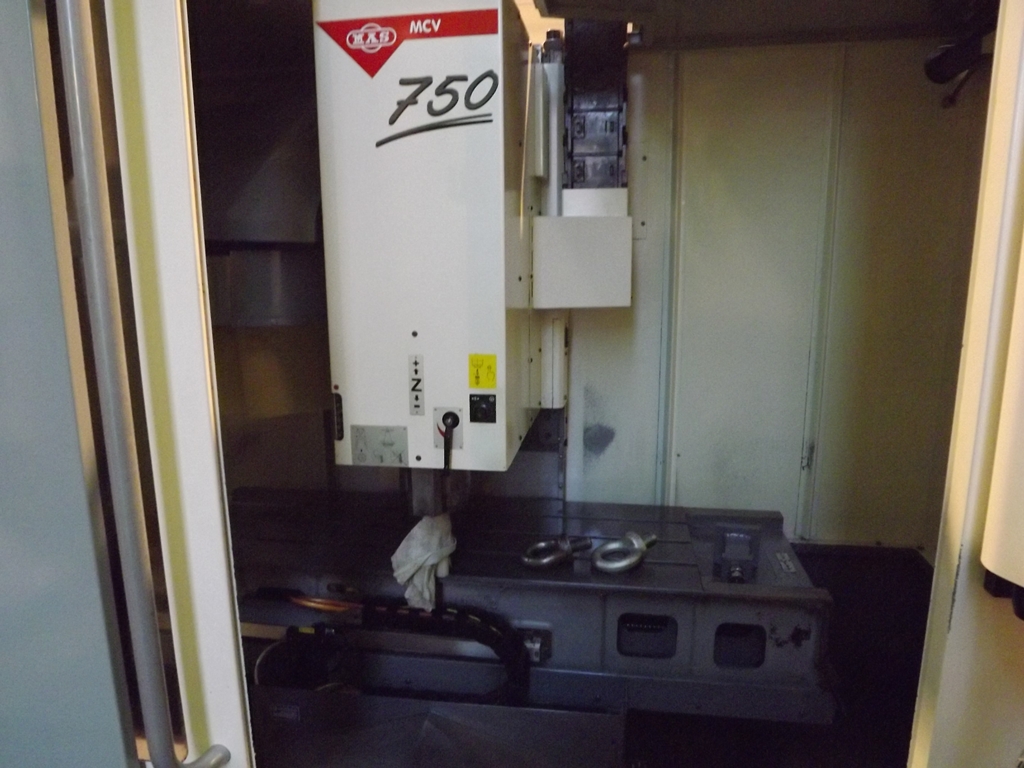

CENTER MAS KOVOSVIT MCV 750
Single pallet
07004

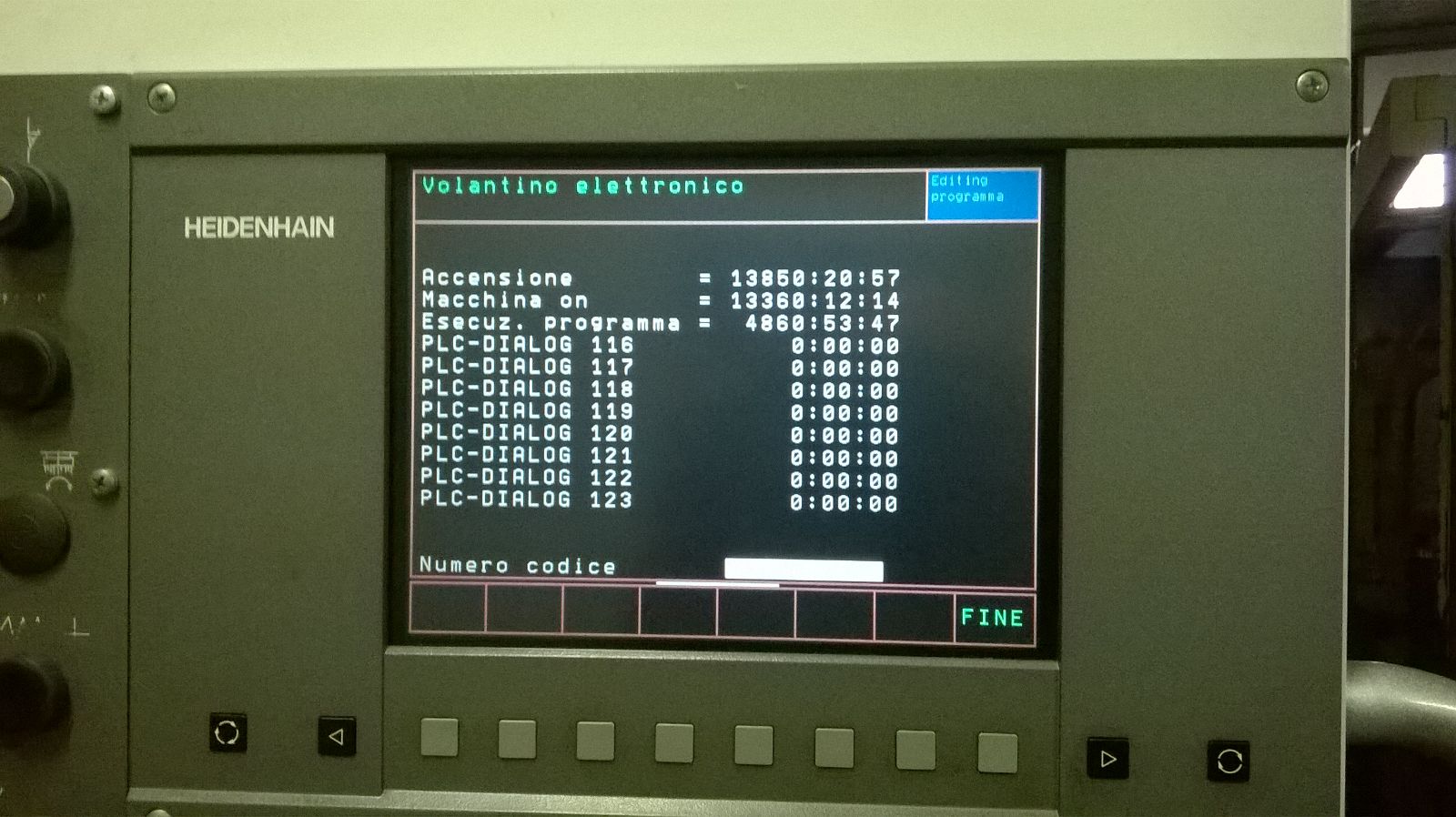

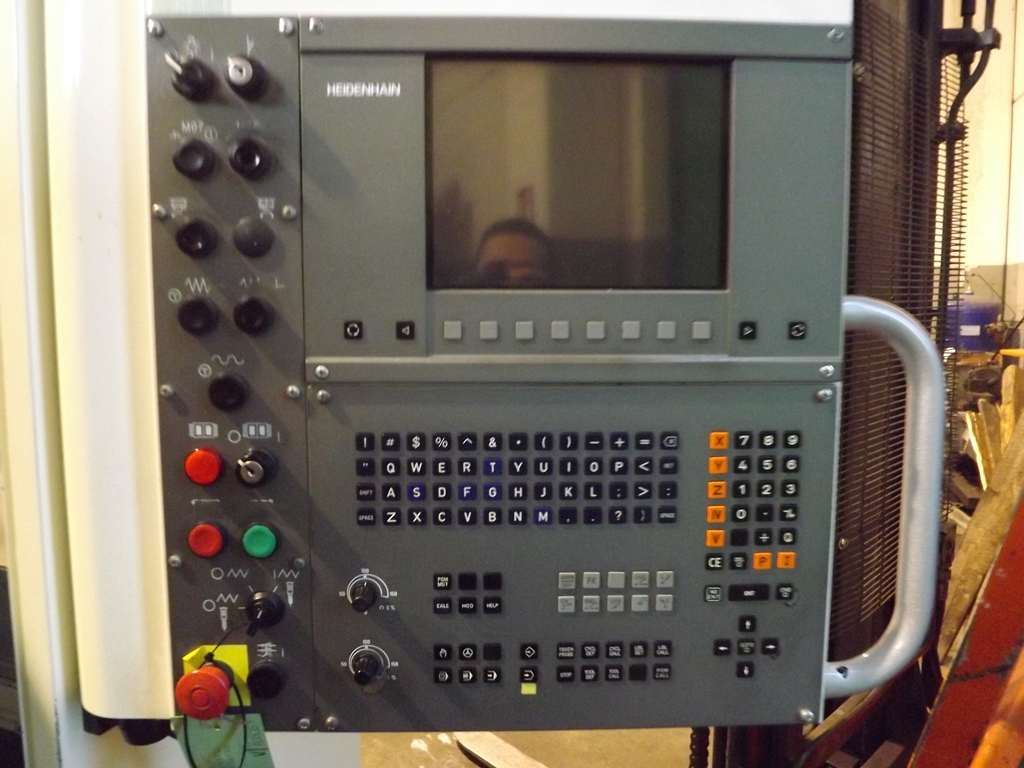

CNC HEIDENHAIN TNC 430
TECHNICAL DATA:
-Table dimensions mm 1000x500
-T-slots n.3
-T-slots width and pitch mm 18/125
-Axis X stroke mm 750
-Axis Y stroke mm 500
-Axis Z stroke mm 500
SPINDLE:
-Spindle speed (continues) rpm 20-6000
-Spindle taper ISO 40
-Distance min/max between table to spindle mm 150-650
-Spindle motor power kW 7,5
FEED:
-Rapid feed mm/min 16000
TOOLS MAGAZINE:
-Positions number 20
-Max tool diameter mm 80
-Max tool lenght mm 300
-Max tool weight Kg 6
APPROX. OVERALL DIMENSIONS AND WEIGHT:
-Installed power kW 15
-Overall dimensions (lenghtxwidthxh) mm 2085x2380x2550
-Machine weight Kg 4000
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
