CENTER MIKRON UCP 600
06547
5 AXIS

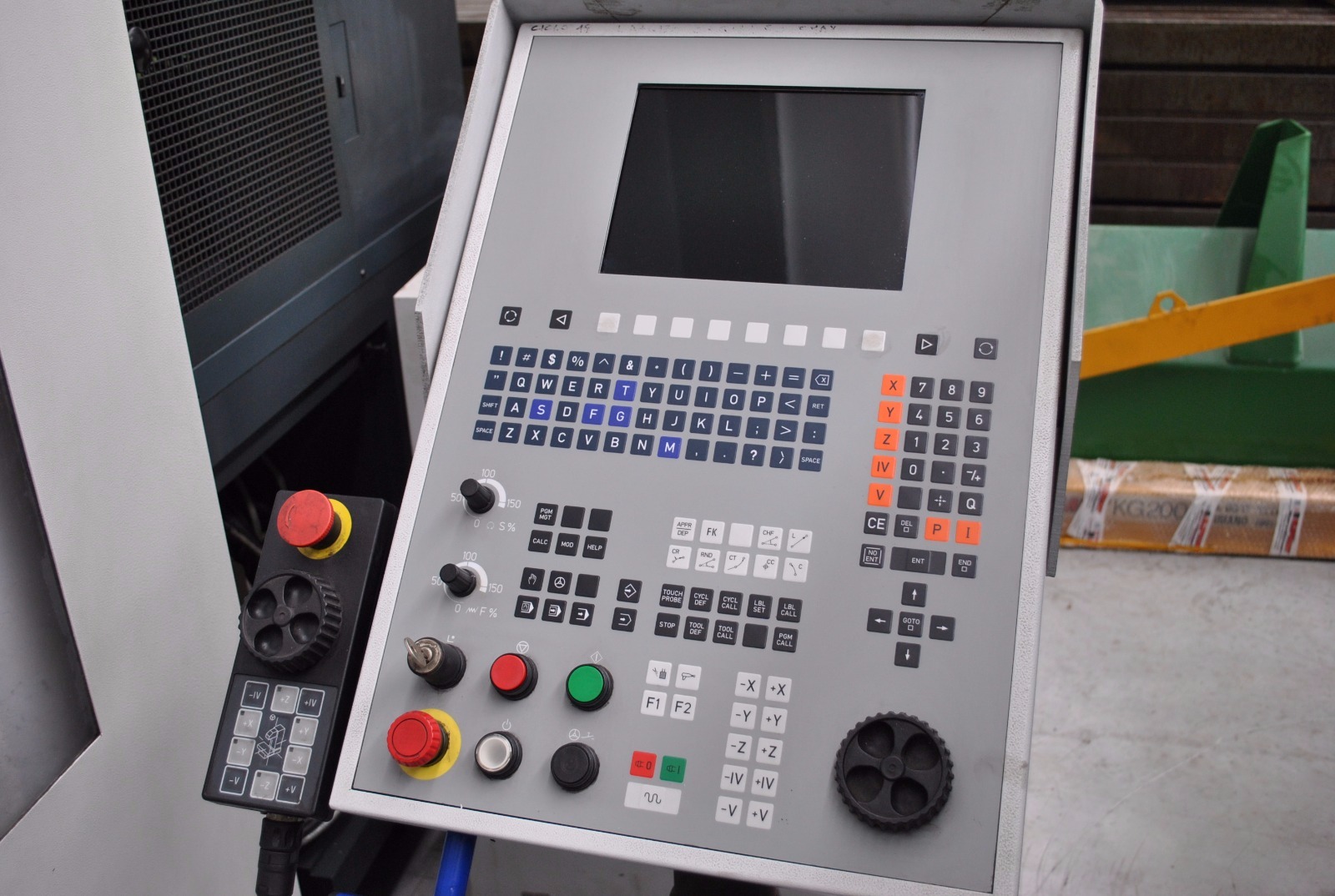

CNC HEIDENHAIN TNC 430 M
Axis X mm 530
Axis Y mm 450
Axis Z mm 450
Spindle speed 12000 rpm
Spindle power kW 12 (100%) /16 kW (40%)
Spindle taper ISO 40

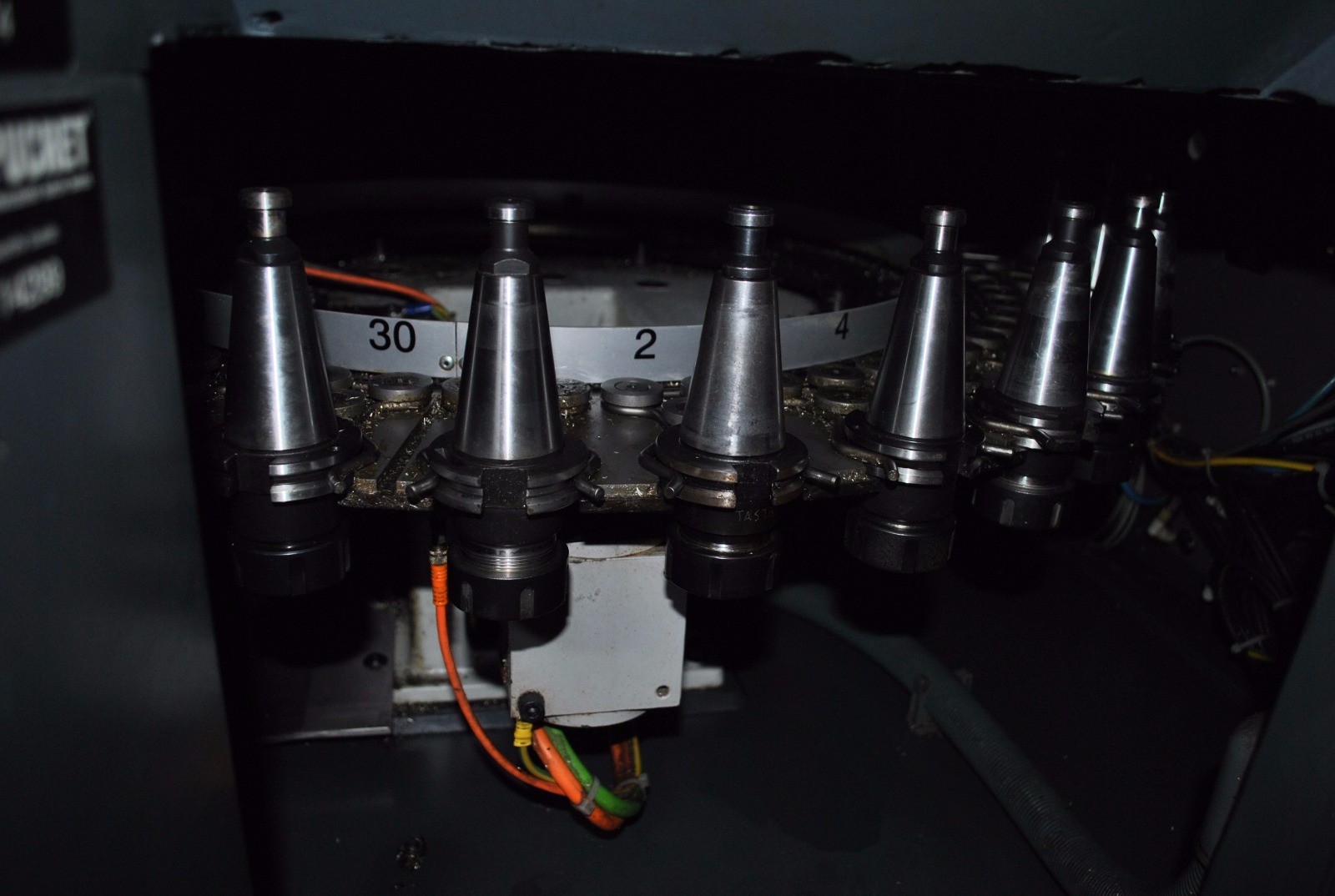

Tool change 30 positions
Max tool diameter mm 110
Max tool lenght mm 250
MAx tool weight Kg 6
Tool change time chip/chip sec. 11

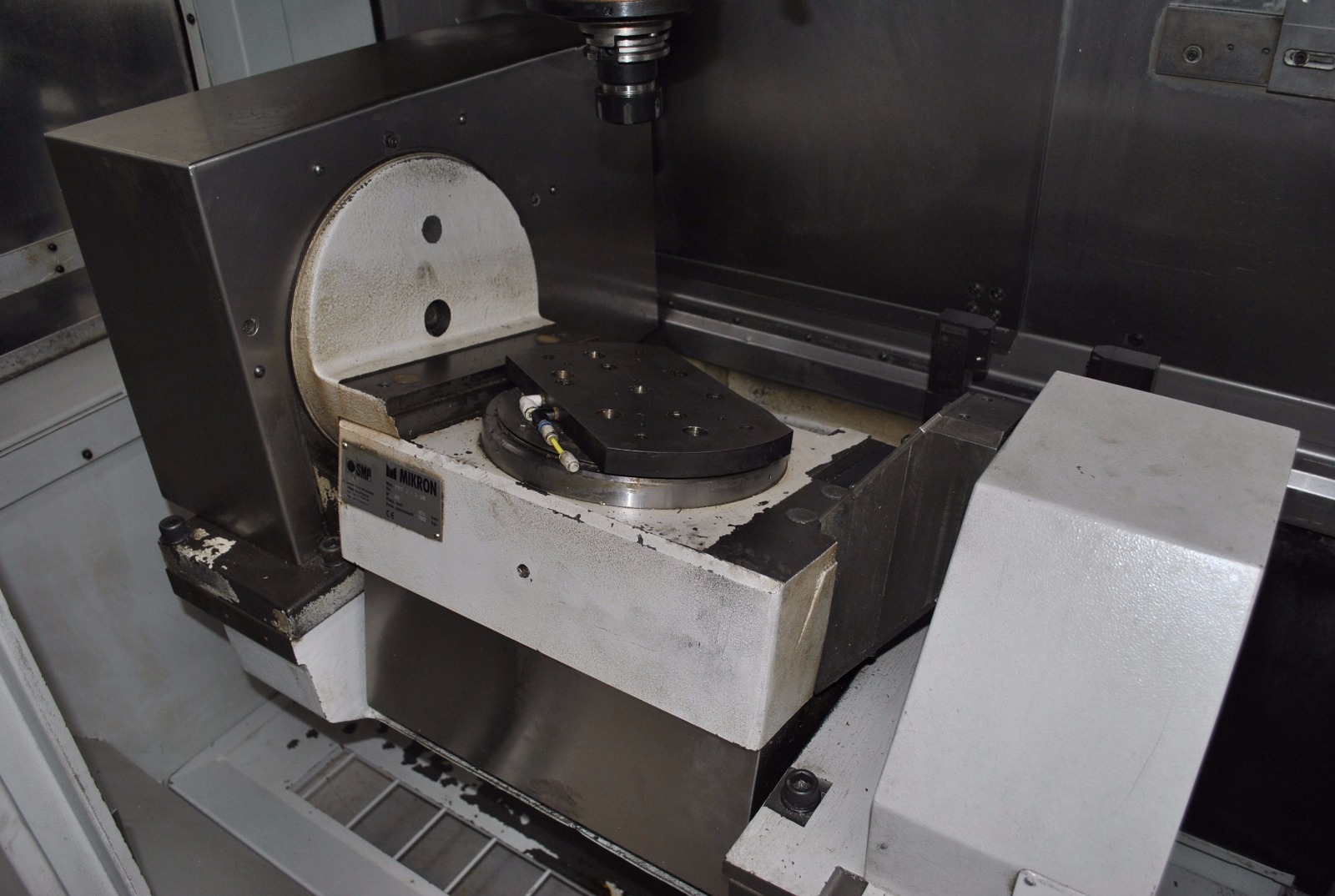

Rotary tilting table (4th+5th axis) diam. mm 280
Table max load Kg 200
C-axis rotation 360.000 degrees
A-axis swivelling +122 degrees/-15 degrees
APPROX. OVERALL DIMENSIONS AND WEIGHT:
Lenght mm 3400
Widht mm 2920
Height mm 2645
Weight Kg 6500
EQUIPPED WITH:
High pressure through spindle 18 bar
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
