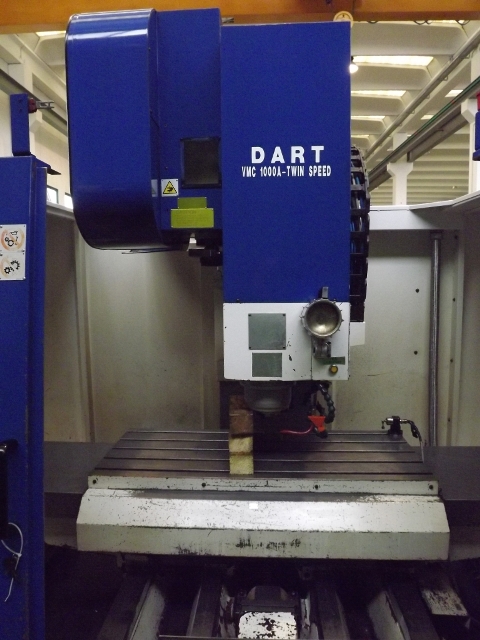

CENTER DART MOD. VMC 1000/A TWIN SPEED
Single pallet
VIDEOS:
06993

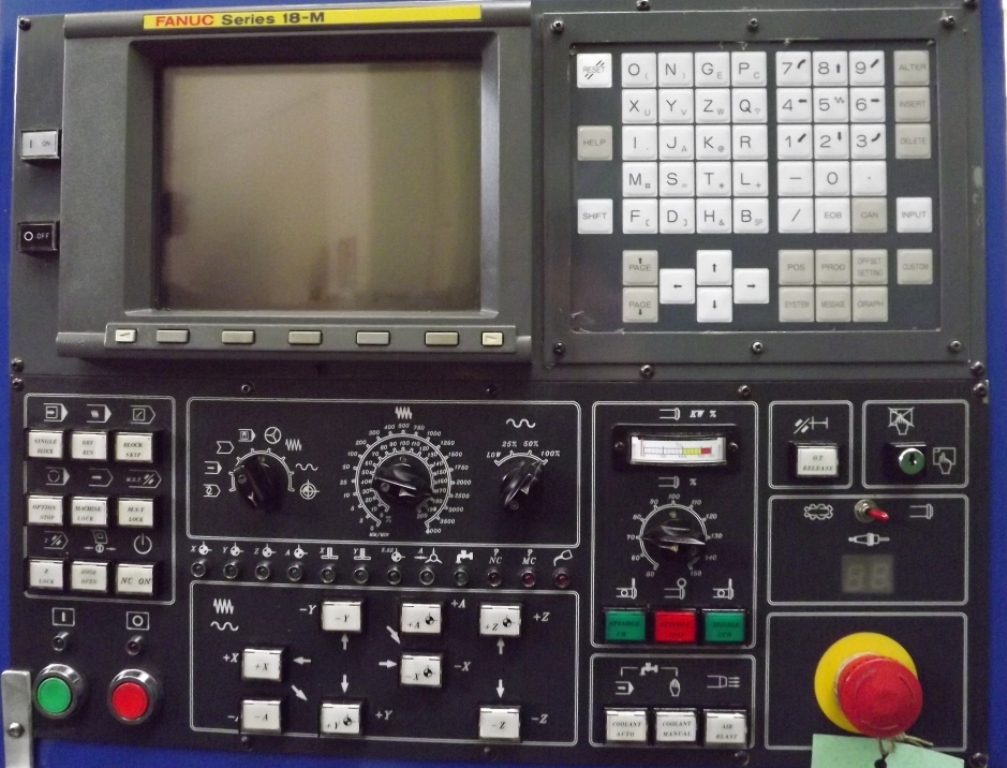

CNC FANUC serie 18-MC
TABLE:
-Table dimensions mm 1220x500
-Max load Kg 1500
STROKE:
-Longitudinal stroke axis X mm 1100
-Cross stroke axis Y mm 530
-Vertical stroke axis Z mm 640
-Distance between spindle nose tp table mm 150:790
-Distance between spindle axis to column mm 550
FEED:
-Rapid feed axis X e Y mm/min 30000
-Rapid feed axis Z mm/min 20000
SPINDLE
-Spindle diameter mm 75
-Spindle nose ISO 40/BT 40
-Spindle speed:
With gear drive
Gear change "ZF"
Rpm 60:8000
TOOL MAGAZINE :
-Tool magazine capacity n.24+1
-Max tool weight Kg 10
-Max tool dimension mm 75x320
-Tool taper BT 40
-RANDOM type
MOTORS:
-Main motor power kW 7.5/11
OVERALL DIMENSIONS AND WEIGHT:
-Machine weight Kg 6300
-Total power requirement kVA 25
-Overall dimensions mm 3300x3300
EQUIPPED WITH:
-Chip conveyor
-High pressure pump
-Presetting Renishaw
USED MACHINE
VIDEOS:
FILL OUT OUR FORM FOR MORE INFORMATION
