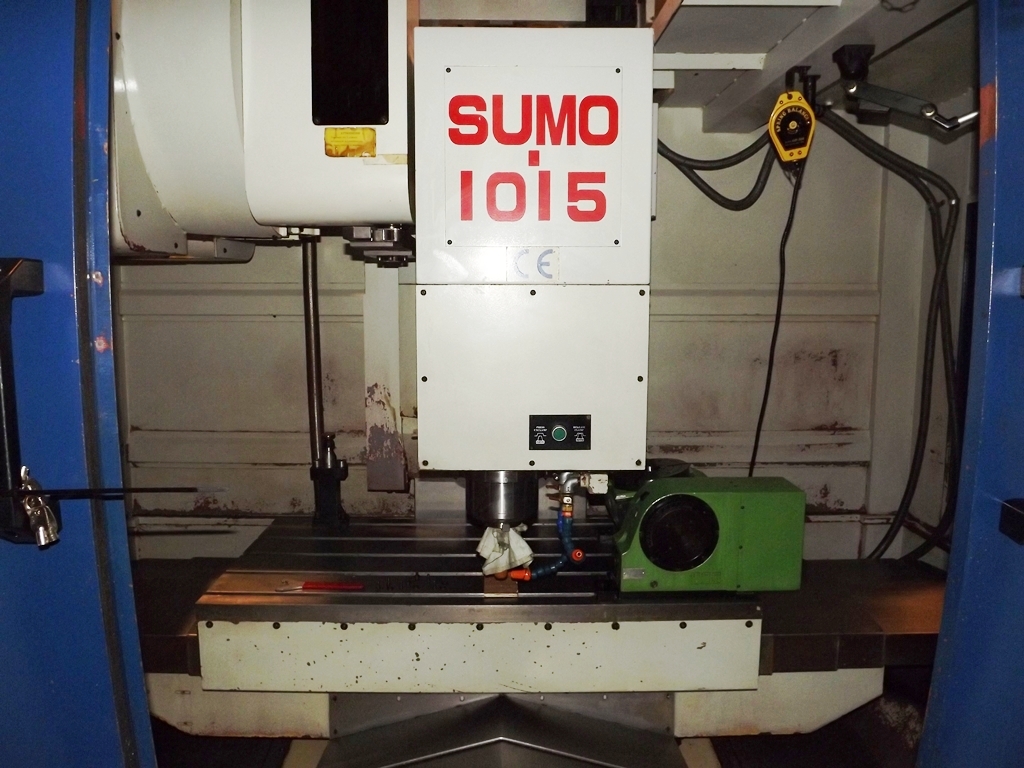

CENTER EUMACH MOD. SUMO 1015
Single pallet
07005

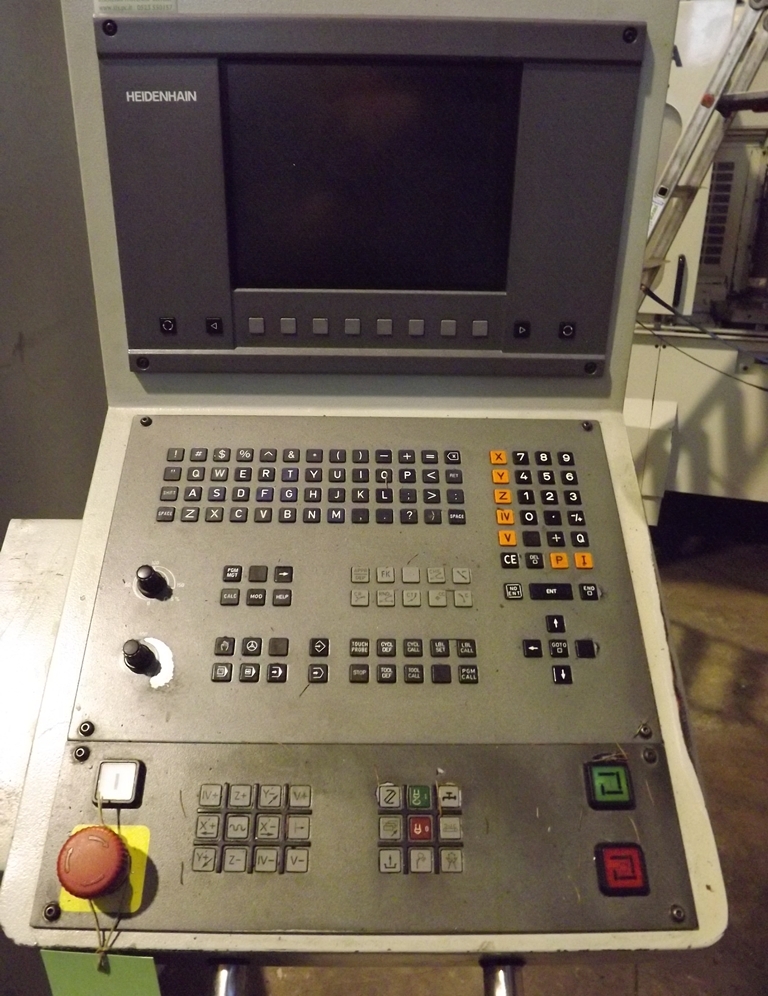

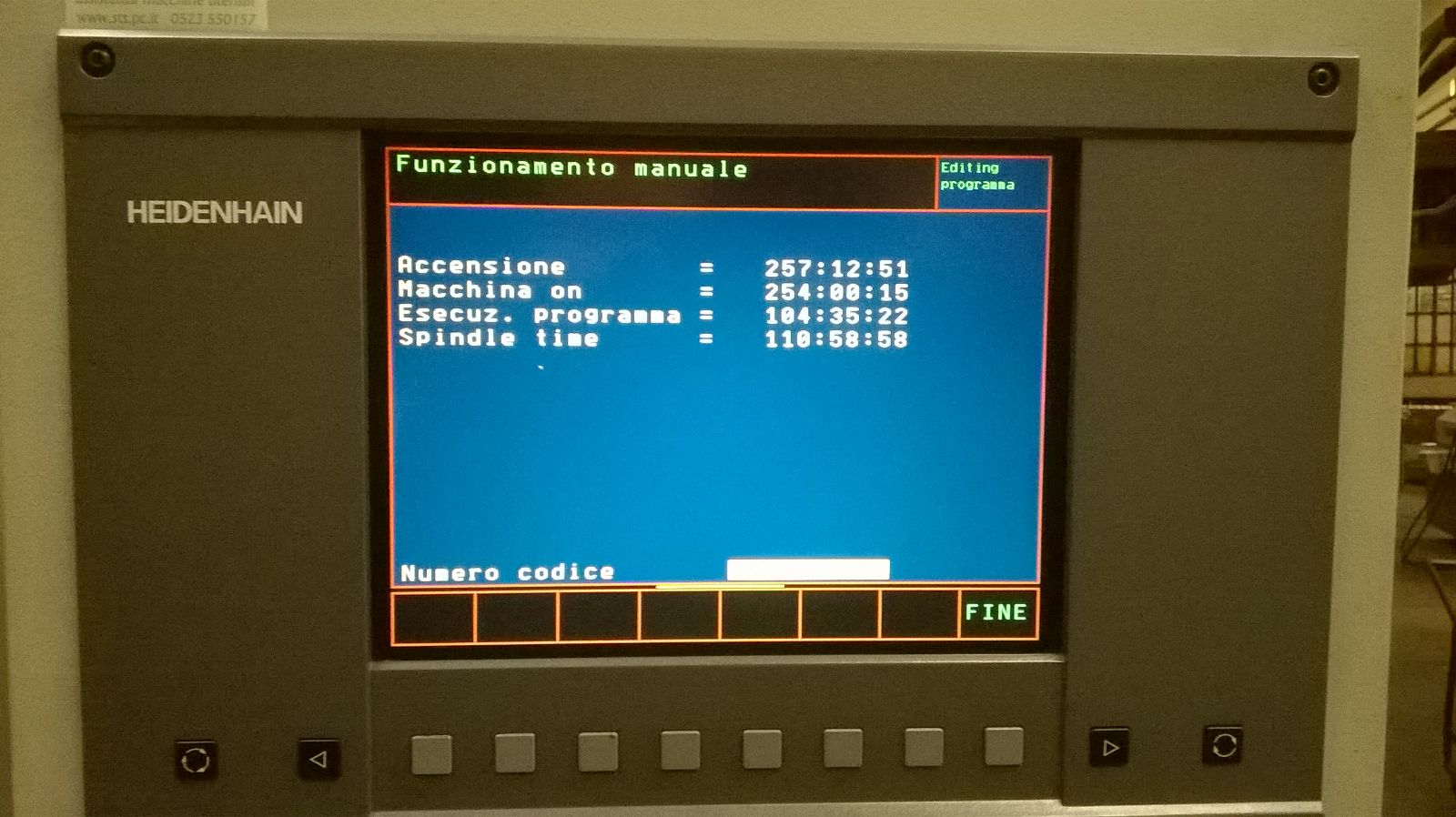

CNC HEIDENHAIN 430
TECHNICAL DATA:
-Table dimensions mm 1270x600
-T-slots (n.xdimensions) 5x18
-Table load Kg 1000
-Axis X stroke mm 1015
-Axis Y stroke mm 610
-Axis Z stroke mm 640
-Distance between table to spindle nose mm 110:750
-Rapid feed mm/min 18000
-Plane guidelines
SPINDLE:
-Spindle taper BT 40
-Spindle speed rpm 8000
-Spindle motor power kW 14
TOOLS MAGAZINE:
-Positions number 24
-Max tool dimensions (diam.xlenght) mm 150x300
TAILSTOCK:
-Tailstock quill diameter mm 35
-Tailstock quill taper Morse 3
-Tailstock quill stroke mm 80
WEIGHT:
-Approx. machine weight Kg 7000
-Floor space mm 2800x2700
-Height machine mm 2900
EQUIPPED WITH:
-Zero point tool probe and software
-Oil cooler
-Chip conveyor
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
