-Working lenght mm 1150
-Width longitudinal abrasive belt mm 1180
-Lenght long. abrasive belt mm 2620
-Working thickness min/ max mm 0,8 - 160
-Height working surface mm 740 - 900
MAIN MOTORS 1 SPEED:
-For cylinder unit 18 m/sec
-For pad unit 12 m/sec
Standard main motor 1 speed kw 9
MAIN MOTORS 2 SPEEDS:
-For cylinder unit 9 m/sec
-For pad unit 6 m/sec
CONTINUOUS VARIABLE CUTTING SPEED:
-For cylinder unit 2-18 m/sec
-For pad unit 2-12 m/sec
FEED:
-Feed motor power 2 speeds kw 0,45
-Motor feed speed 2 speeds m/min 4
THICKNESS ADJUSTMENT:
-Motor power kw 0,25
CONSUMPTION (COMPRESSED AIR)
-Min pressure compressed air bar 6
-Belt checking NI/min 100
-Compressed air consumption (for unit) NI/min 600
STANDARD DETAILS
-Machine weight kg 2500
-Volt 380 - Hz 50
-kw 50

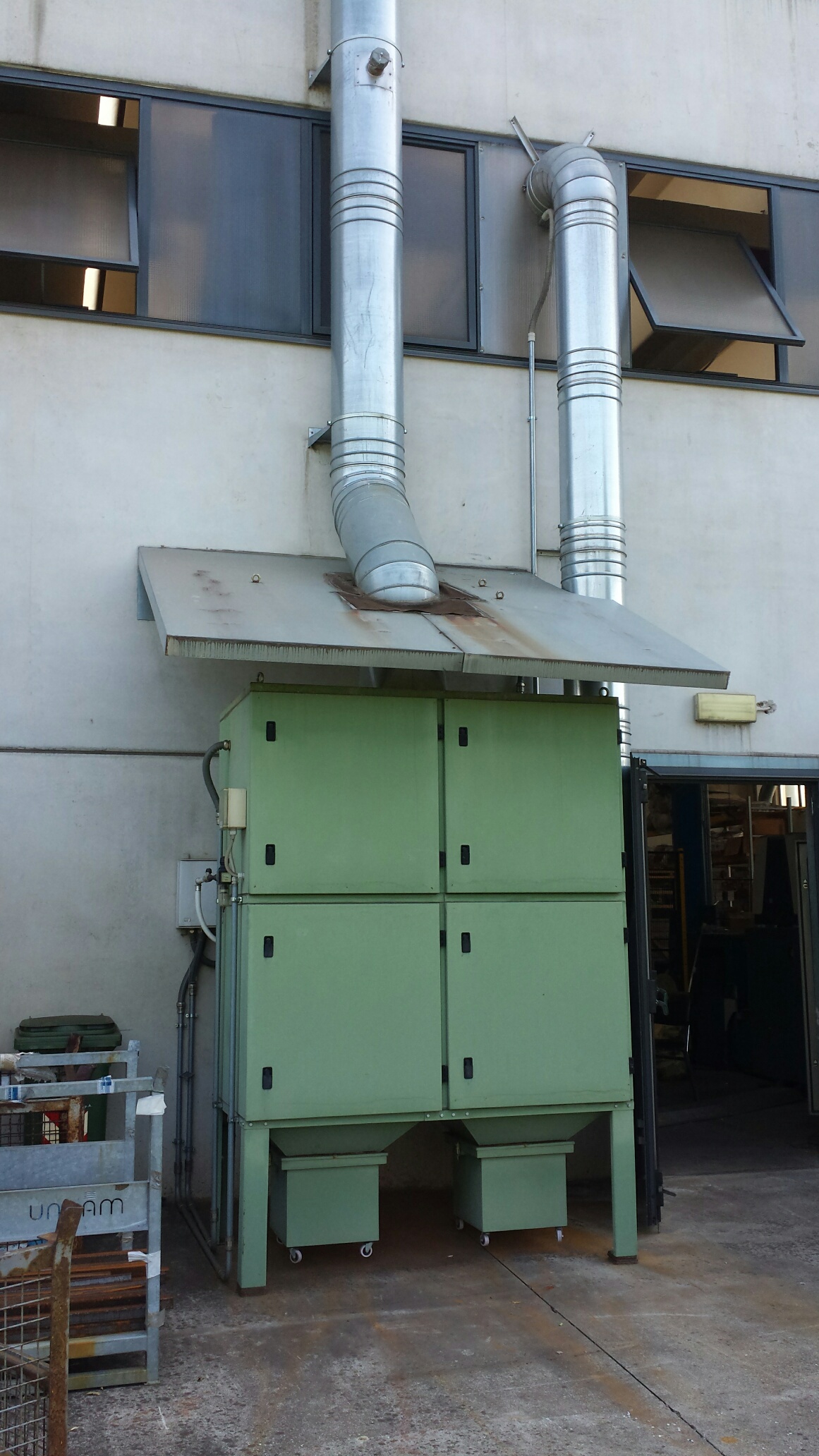

-Machine equipped with dust system 7,5 kW

USED MACHINE
