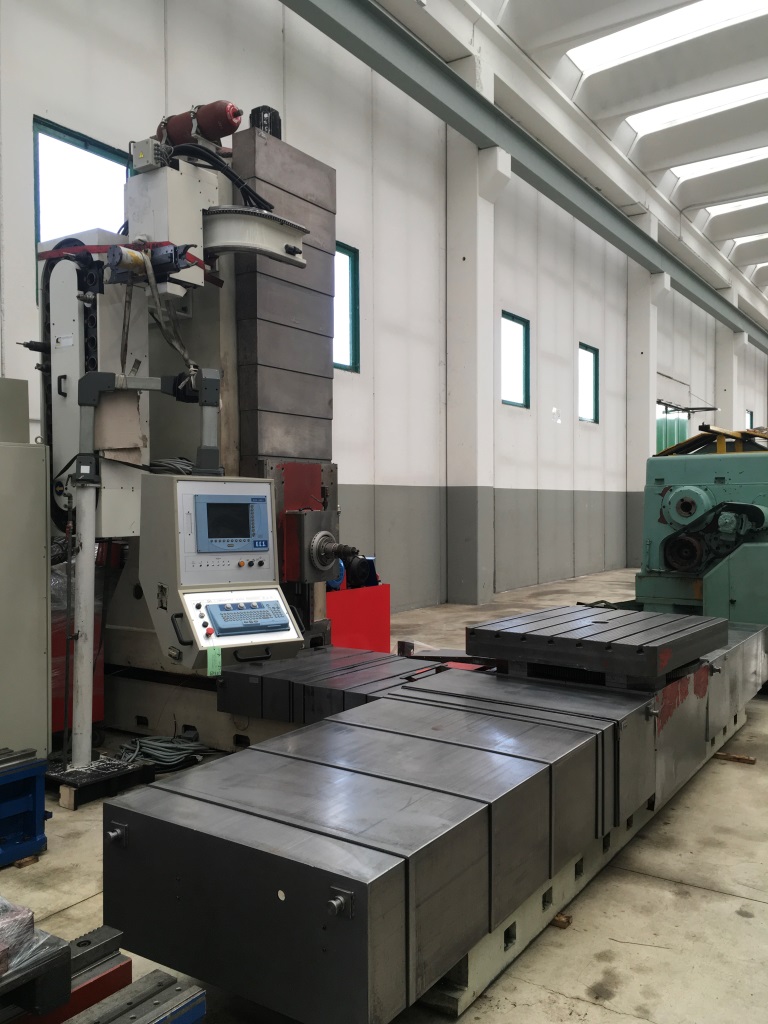

BORING SAN ROCCO 110 FMC 110/S-MMZ
T type
boring cnc - Used Machines
SAN ROCCO
07749
07749
CNC ECS 4801
Axis X 3100 mm
Axis Y 2000 mm
Axis Z 1600 + 600 mm at the table center
Axis W (spindle stroke) 600 mm
Axis B (Rotary table) continuous

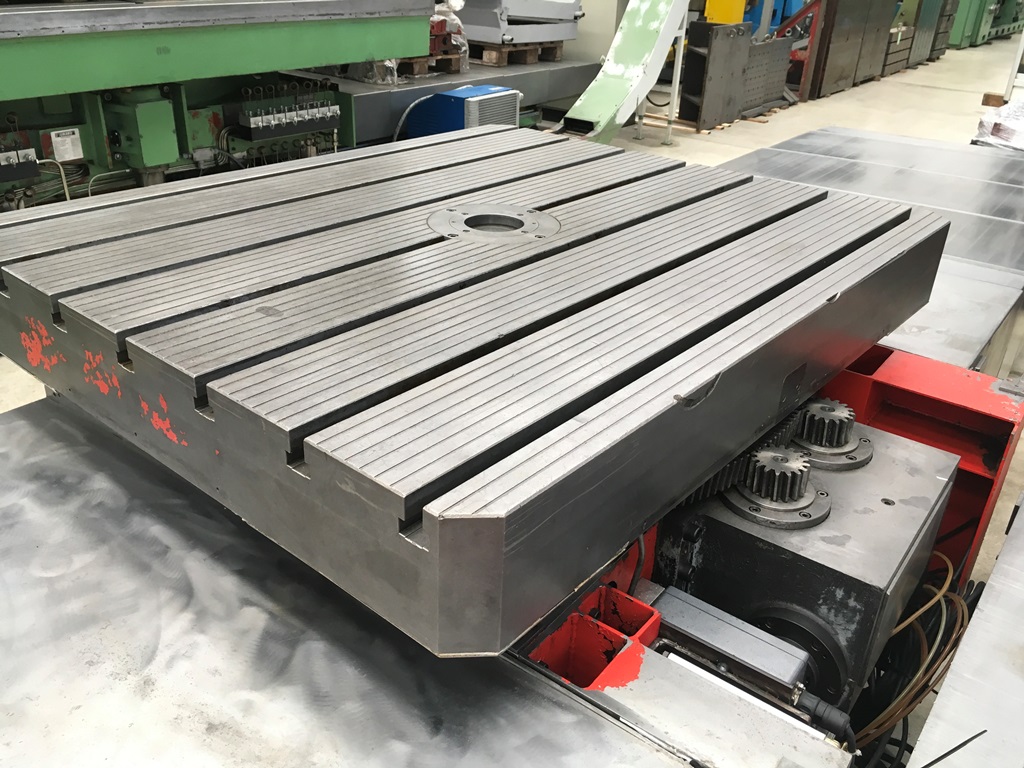

Table 1300 x 1100 mm
T slots n.7 distance mm 160 22 H7
Load on table 5.000 kg
Horizontal spindle
Quill diameter mm 110
spindle speed 265-3500 rpm
motor spindle power 25 kW
taper ISO50 DIN 69871

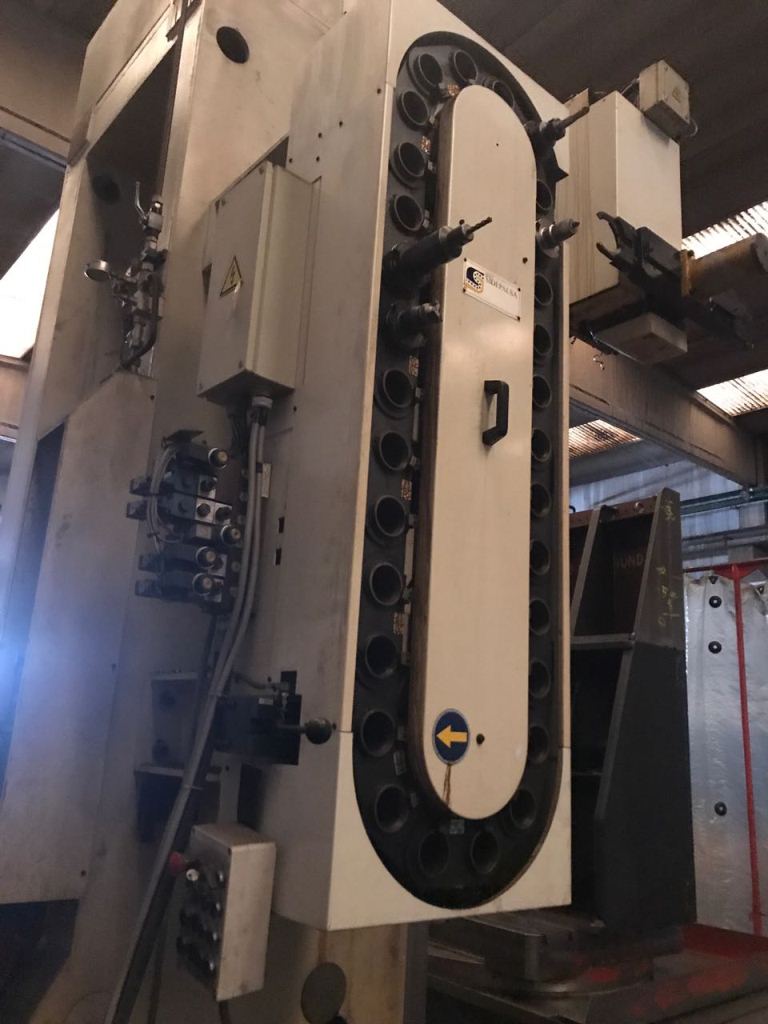

Automatic tool changer 30 position
Distance between tools mm 130
Max tools length mm 400
Max tool weight 30 Kg
Linear scale Heidenhain
USED MACHINE
IMAGES:
