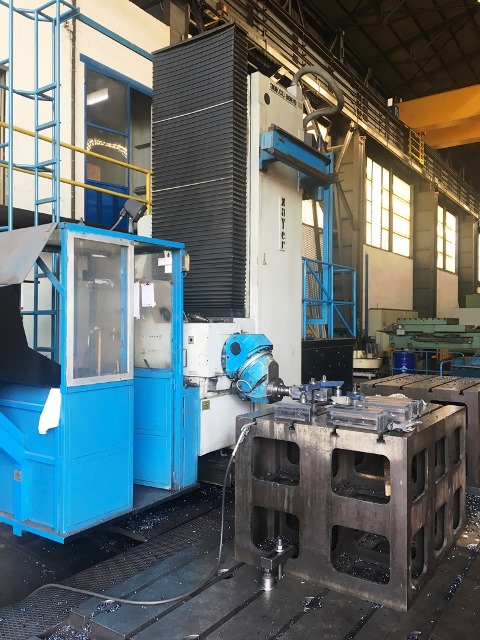

MILLING/BORING ZAYER MOD. KCU 8000x2500
Floor type
milling cnc - Used Machines
ZAYER
07740
07740

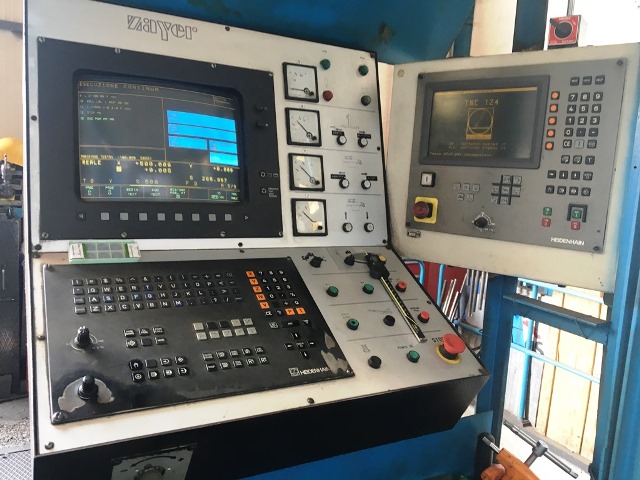

CNC HEIDENHAIN 407
Axis X stroke mm 8025
Axis Y stroke mm 1263
Axis Z stroke (vertical) mm 2502
Axia V stroke table mm 1200
Tool taper ISO 50
Spindle speed min/max rpm 35-3000
Spindle motor power KW 37
Approx. net weight Kg 33.000
EQUIPPED WITH:
-Automatic head 2,5 x 2,5 degrees
-Tool change 30 posti

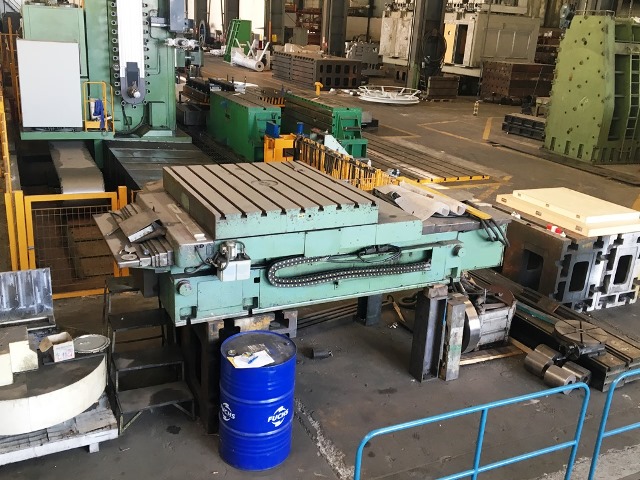

-Rotary table UNION controlled by CNC HEIDENHAIN TNC 124:
Dimensions mm 1400x1600
Load ton 16/18 ca.
-N.04 fixing plates mm 3200x1600
-N.02 cube/supports mm 1200x1500x1500H with T slots
-Linear scales
-Coolant through spindle
USED MACHINE
