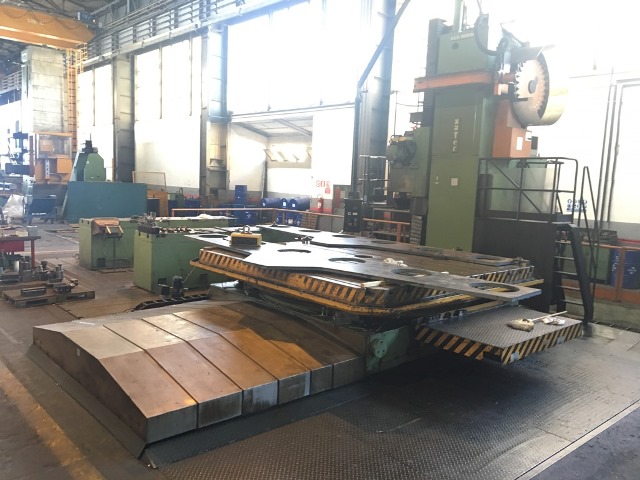

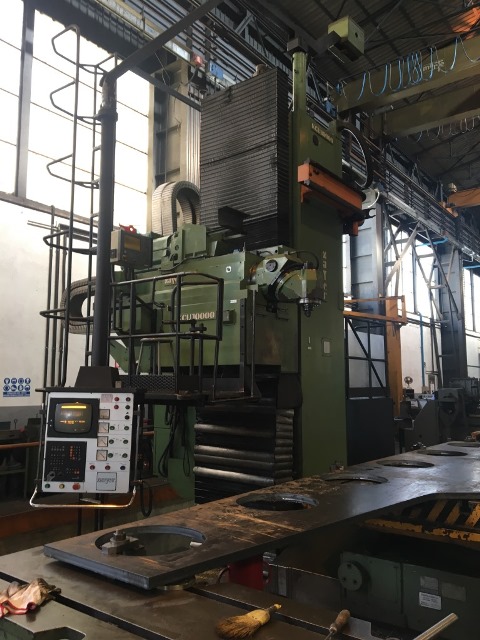

MILLING/BORING ZAYER MOD. KCU 10.000x3000
Floor type
milling cnc - Used Machines
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
ZAYER
07739
07739

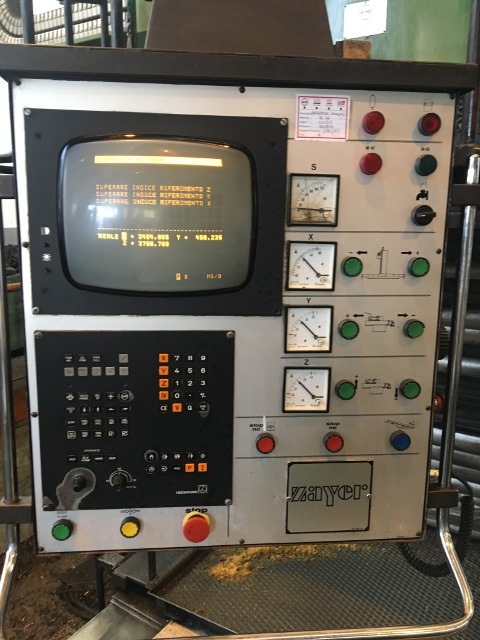

CNC HEIDENHAIN 355
Axis X stroke mm 10.000
Axis Y stroke mm 1000
Axis Z stroke (vertical) mm 3000
Tool taper ISO 50
Spindle speed min/max rpm 35/3000
Spindle motor power CV/KW 40/29,4
Approx. net weight Kg 35.000
EQUIPPED WITH:

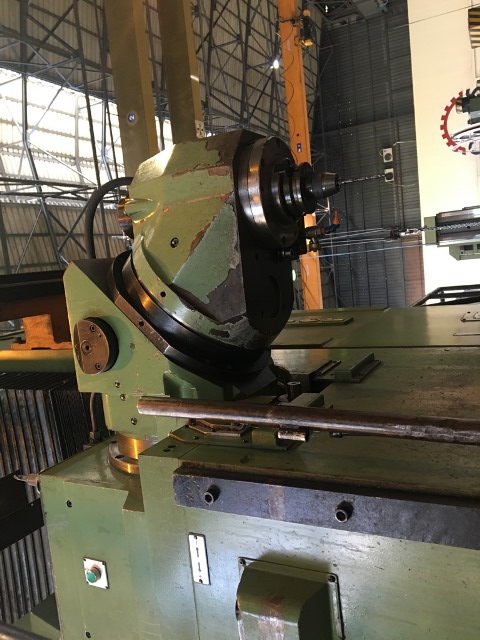

-Automatic head 2 positions
-Tool change 30 posti
-N.02 fixing plates mm 2000x2000
-N.01 fixing plate mm 2500x5000
-N.02 cube/supports mm 3500x750x1100H
-Linear scales
USED MACHINE
