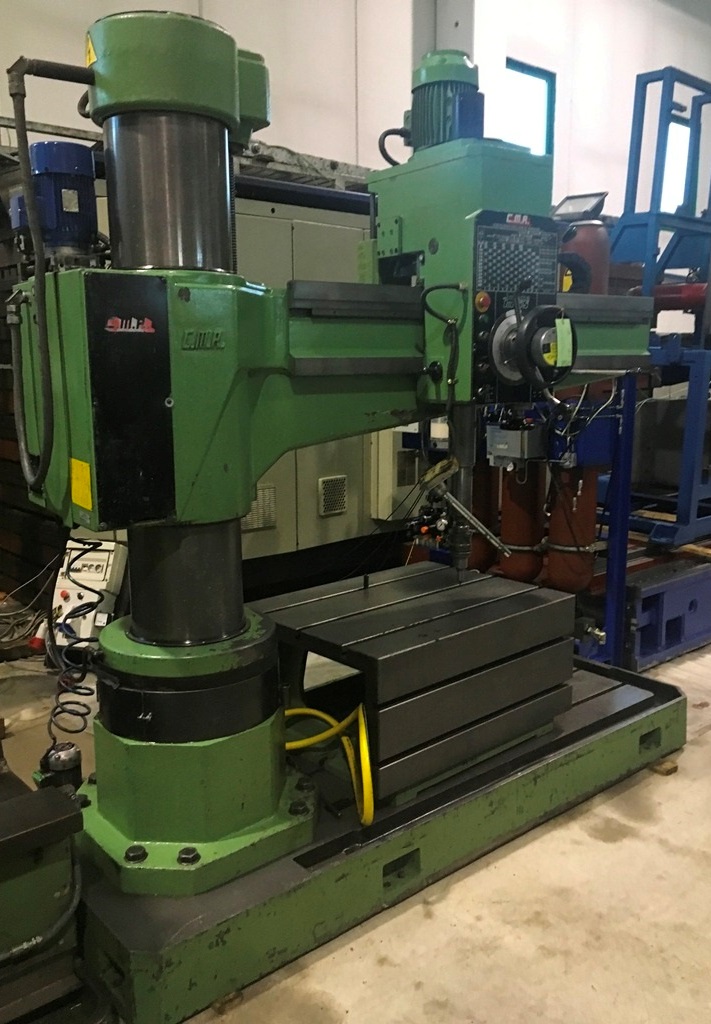

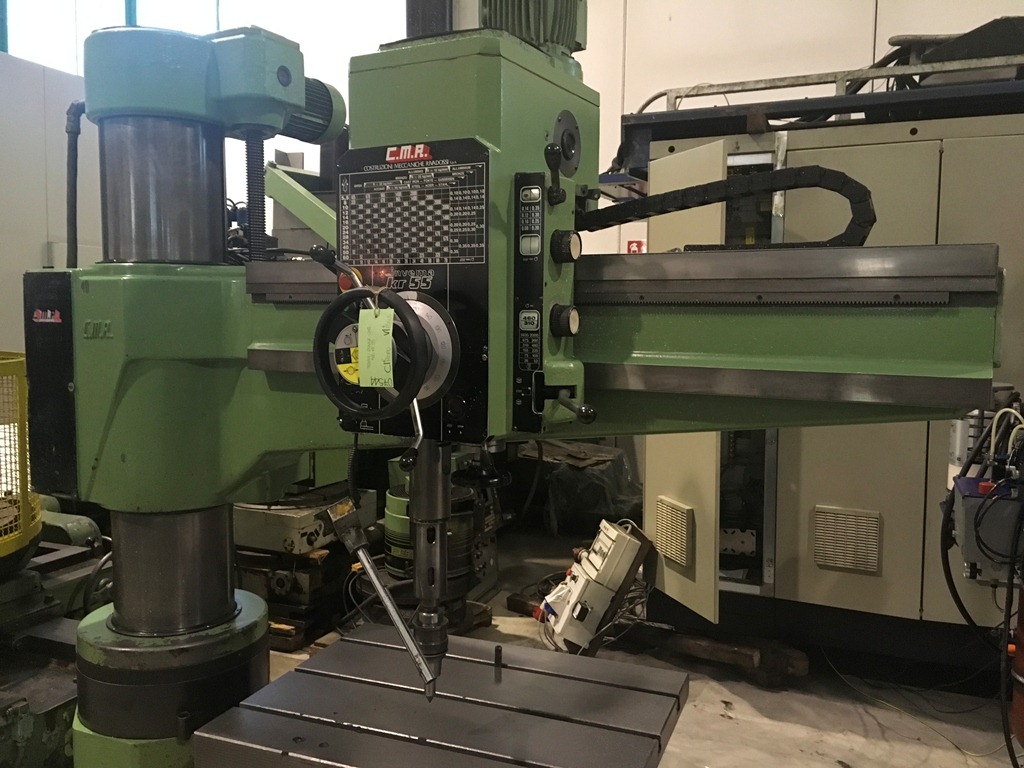

DRILLING CMR INVEMA KR 55x1300
Radial
drilling - Used Machines
CMR
07544
07544
Drilling capacity on steel mm 55
Drilling capacity on cast iron mm 55
Max distance between spindle axis and column 1600, min 350 mm
Max distance between spindle nose and base 1250, min 350 mm
Travel of head mm 1250
Taper CM5
Speed n. 12, 36-2000 rpm
Quill travel 315 mm
Spindle drive kW 4
Approx. machine weight 3200 kg
Machine dimensions 2500 x 1060 x 2655 mm
EQUIPPED WITH:

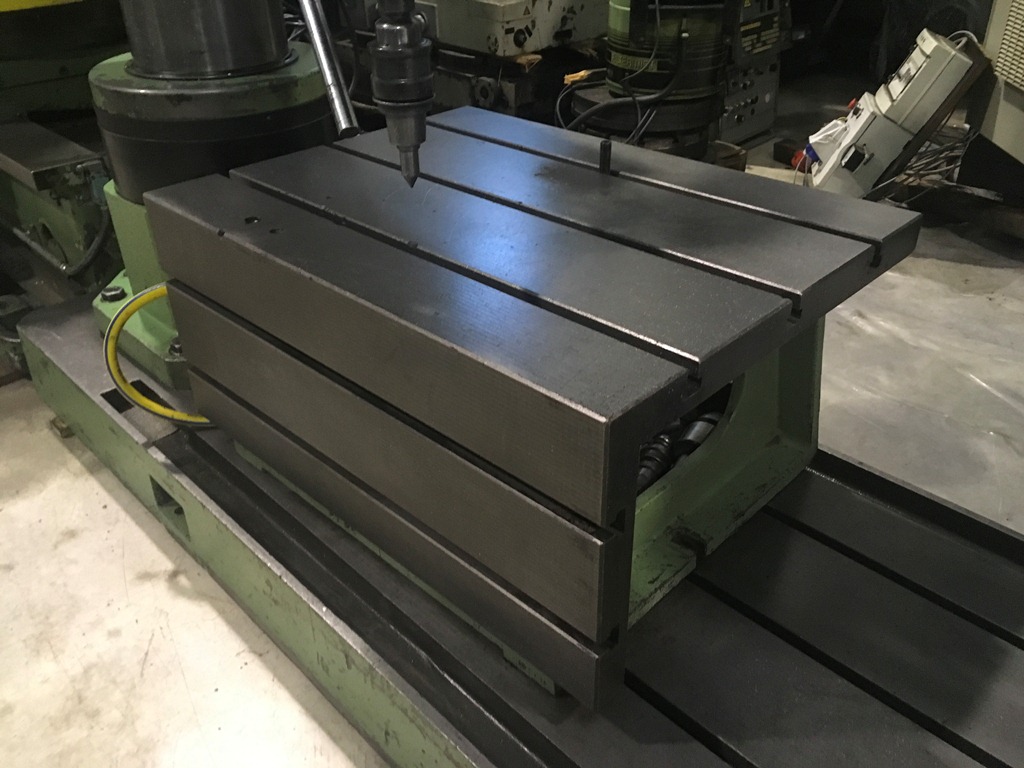

Cube mm 1000x750x h450
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
