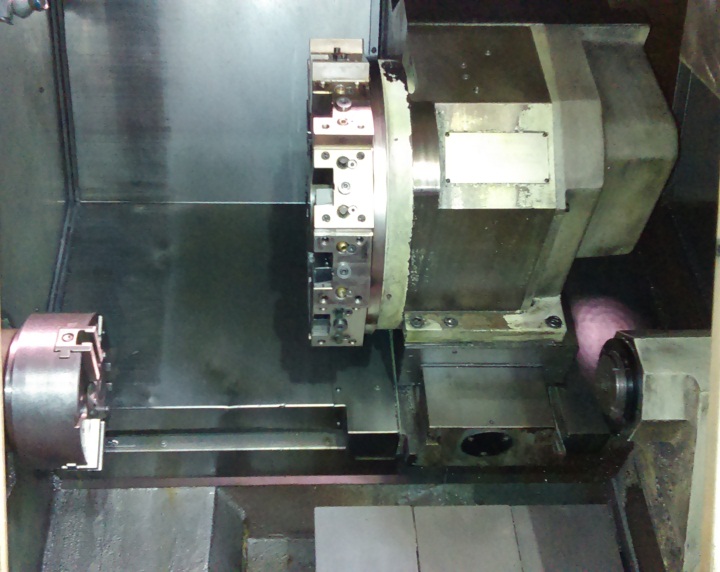

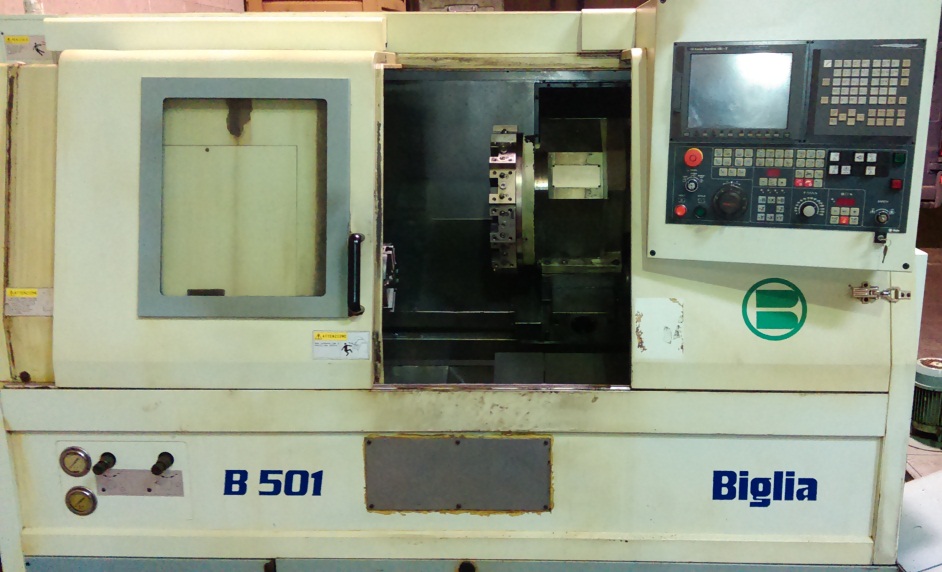

LATHE BIGLIA MOD. B501
2 axis
07033
CNC GE FANUC serie 18i-T
CAPACITY:
-Bar diameter mm 68
-Max turning diameter 250
-Max turning lenght mm 500
-Max swing diameter mm 520
SPINDLE:
-Spindle speed rpm 40-4000
-Spindle nose ASA 6''
-Spindle bore mm 80
-Front bearing internal diameter mm 110
-Chuck diameter mm 210-250
-Motor power kW 22-26 (50%)
TURRET:
-Positions number 12
AXIS:
-Axis X stroke mm 210+5
-Axis Z stroke mm 500+10
-Axis X rapid m/min 20
-Axis Z rapid m/min 20
TAILSTOCK:
-Quill automatic stroke mm 100
-Quill diametr mm 85
-Tailstock cone CM 4
-Manula/Automatic positioning mm 510-440
OVERALL DIMENSIONS AND WEIGHT:
-Overall dimensions with chip conveyor mm 4000x1940x1960h
-Spindle center height mm 1000
-Weight with chip conveyor Kg 4600
EQUIPPED WITH:
-Chip conveyor
USED MACHINE
