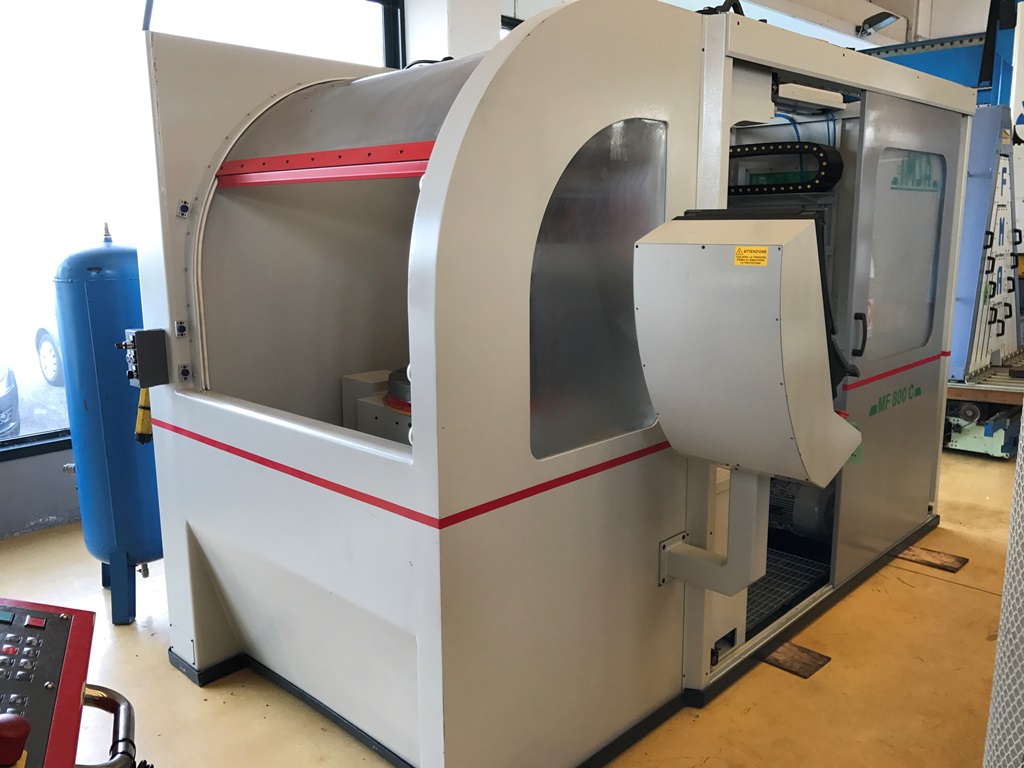

DEEP HOLE DRILLING IMSA MOD. MF 800 C
For molds
deep hole drilling machines - Used Machines
IMSA
07366
07366

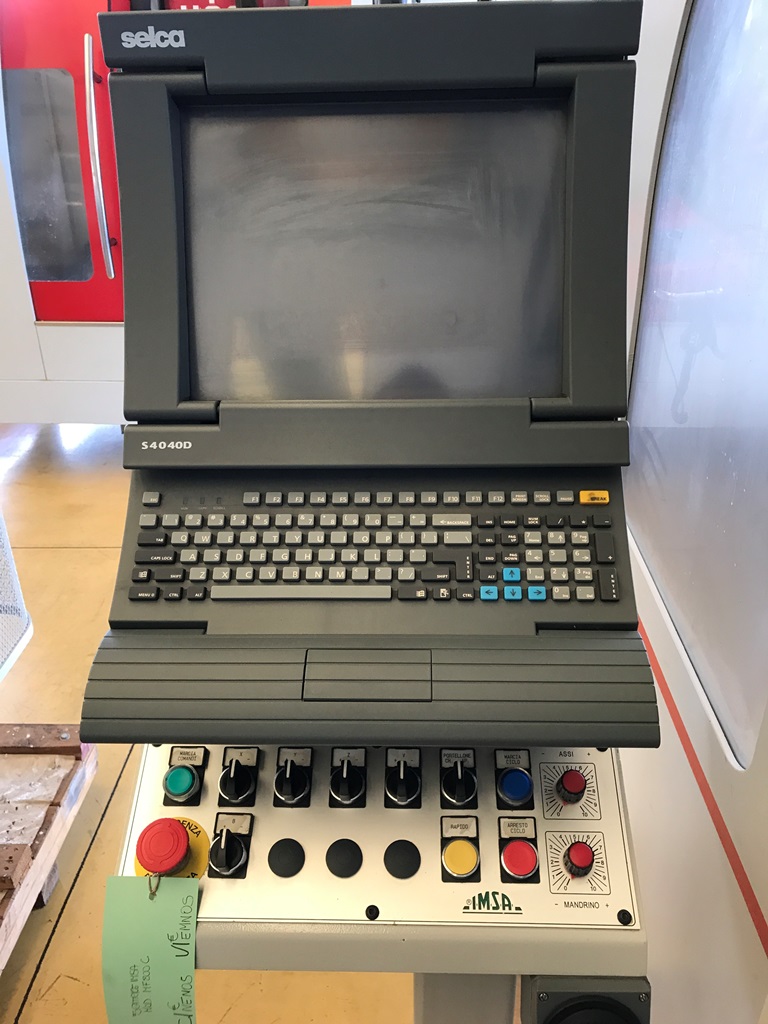

CNC SELCA S4040D

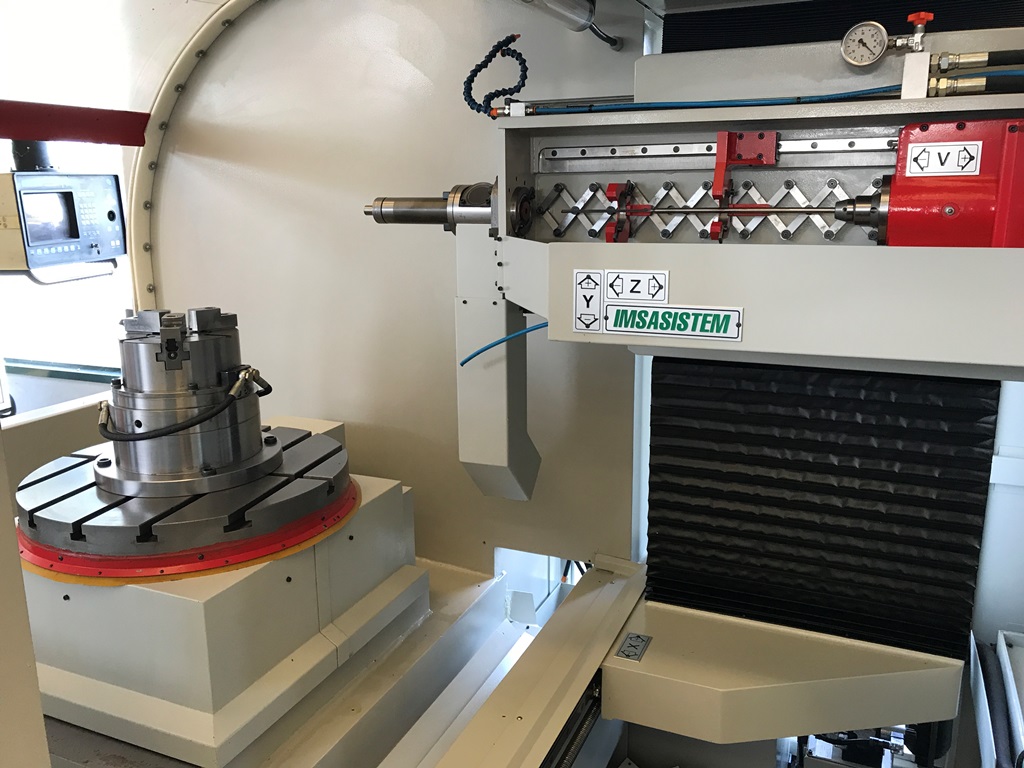

ROTARY TABLE:
Working surface diam. mm 600
T-slots (quantityxwidth) mm 4x18
Max load Kg 2000
AXIS STROKES - WORKING AREA:
Longitudinal (axis X) mm 800
Vertical (axis Y) mm 500
Appoch stroke of drill slide (axis Z) mm 300
DRILLNG SPEED:
Max drilling depth mm 800
Drilling spindle speed rpm 10.000
Drilling section, with a full - min. tip diam. mm 3
Drilling section, with a full - max tip diam. mm 18
MOTORS:
Drilling spindle motor power kW 7
Max absorbed power kW 20
VARIOUS:
Approx. area mm 2500x3400
Height mm 2200
Approx. weight Kg 4000
USED MACHINE
YEAR 2011
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
