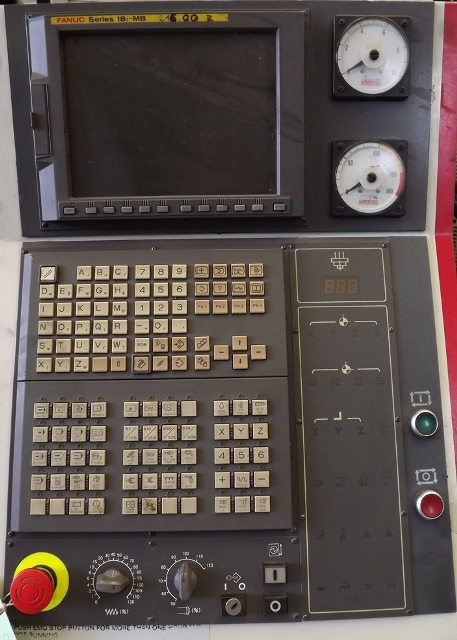

CNC FANUC 18iMB
AXIS:
Axis X stroke mm 710
Axis Y stroke mm 610
Axis Z stroke mm 610
Distance between table surface to spindle center mm 50-660

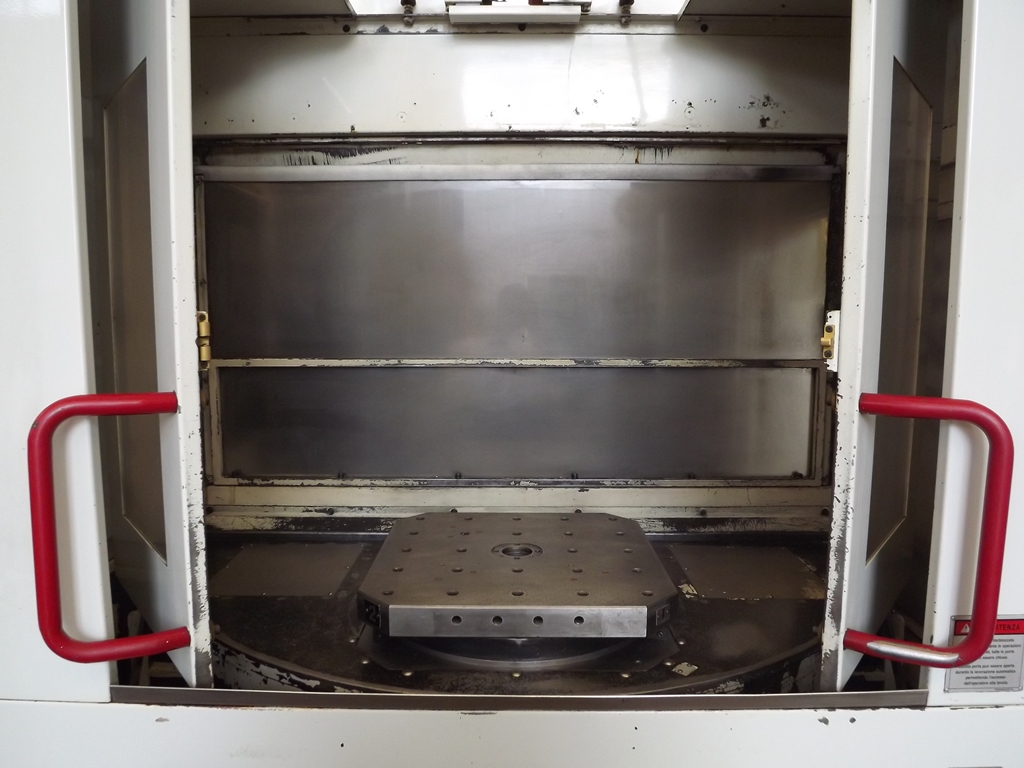

CONTINUOUS TABLE:
Pallet dimensions mm 500x500
Max swing diameter mm 680
Max table load Kg 500 kg
Max workpiece height mm 710
Min. indexing angle table degree 0.001
RAPID:
Rapid feedrate m/min 48

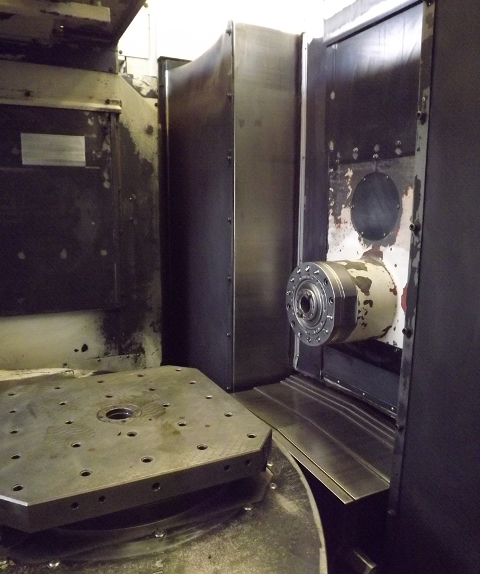

Spindle taper ISO 40 BIG-PLUS da 15000 rpm
Spindle with 2 speed range
Spindle motor power (30 min./cont.) kW 30/24
ATC:
Toolholder cone ISO 40
Tools number 60
Max tool diameter mm 100
Max tool lenght mm 330 mm
Max tool weight Kg 10
APPROX. MACHINE DIMENSIONS:
Overall on the floor mm 4060x5300
Height mm 2890
Weight Kg 11.500
EQUIPPED WITH:
High pressure through the spindle 20 bar
Chip conveyor

USED MACHINE
